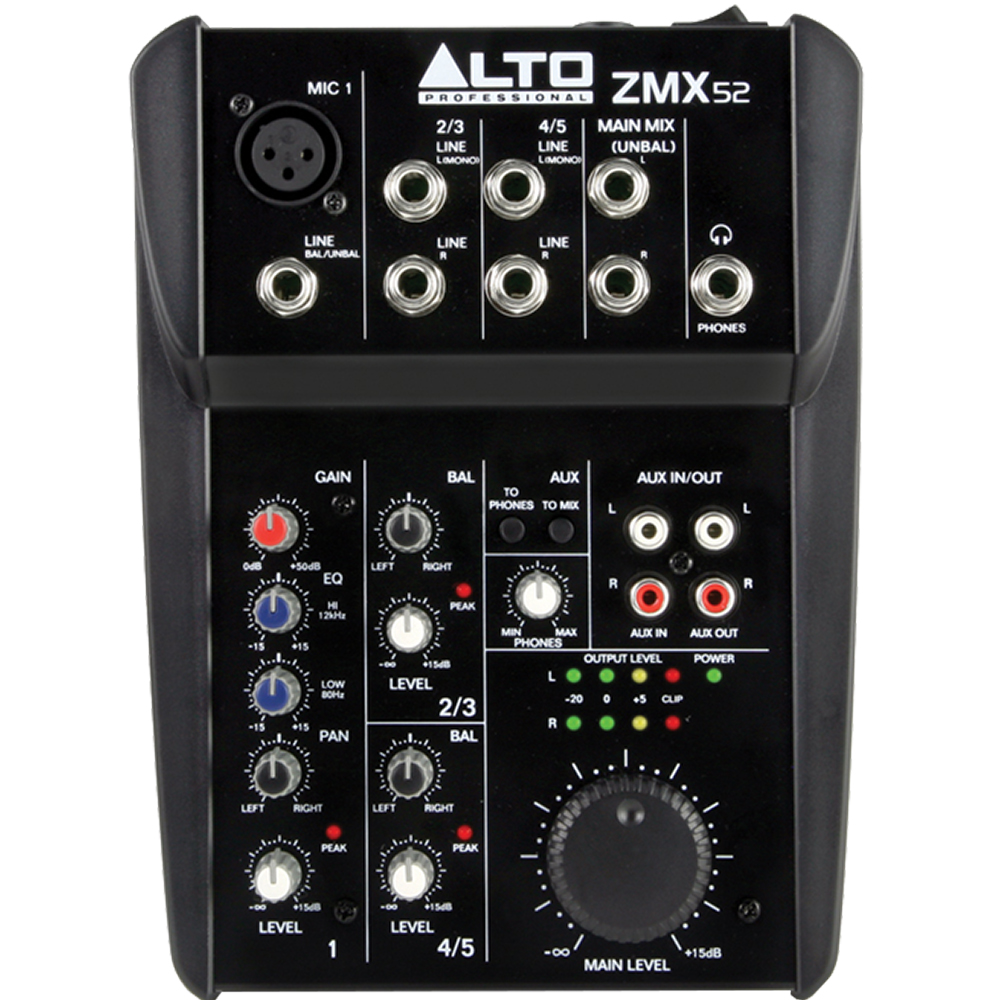

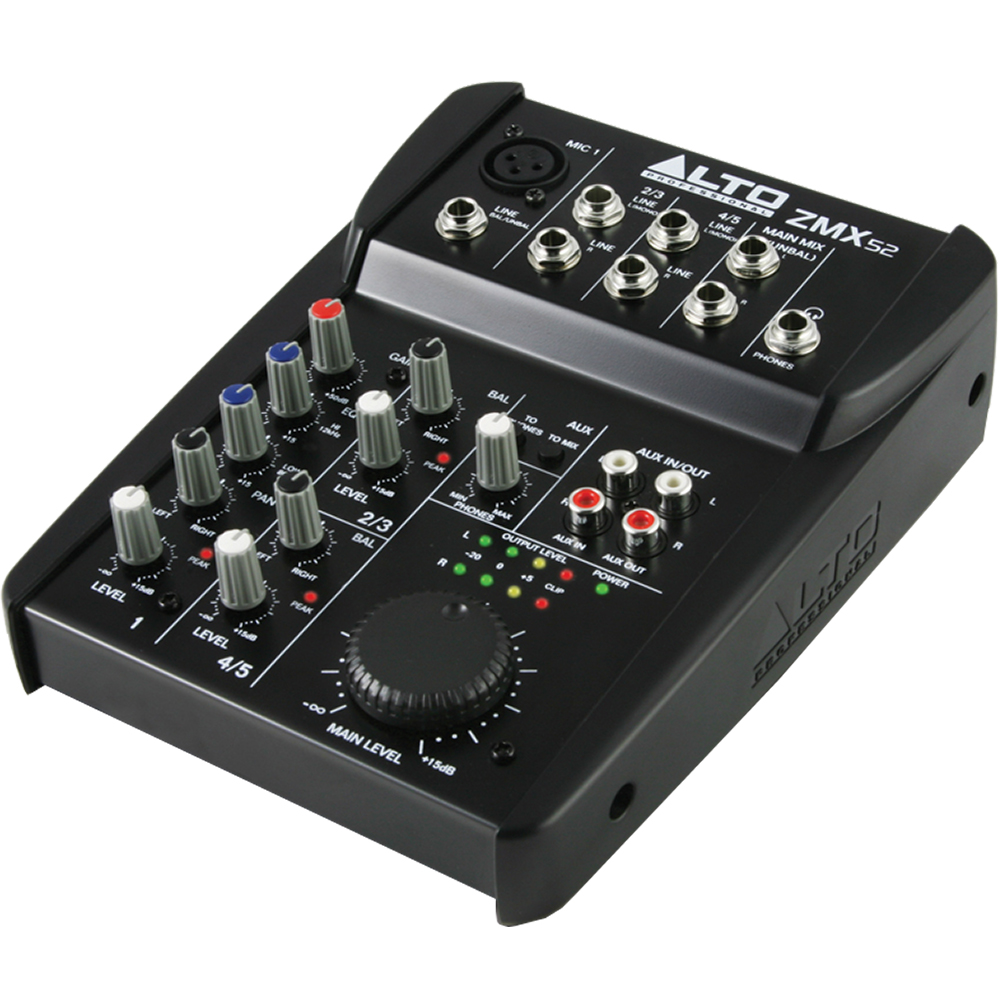

Alto ZMX52 5 Channel Compact Mixer

Alto ZMX52 5 Channel Compact Mixer
Zoom  Zoom
Alto ZMX52 5 Channel Compact MixerAlto ZMX52 5 Channel Compact MixerAlto ZMX52 5 Channel Compact Mixer

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Fast Delivery

  • Six total inputs with a phantom powered XLR jack on channel 1
  • 1/4” Main, Tape, Headphone & Aux outputs for flexible signal routing
  • Perfect for musicians looking for a compact, capable mixer
  • Mic input channel with gold plated XLR and balanced line input
  • Two stereo input channels with balanced TRS jack
£45.00 £49.99
Earn 45 Loyalty Points.
+
AVAILABILITY:
Only 2 in stock, immediate despatch

Only 2 in stock, immediate despatch

Order soon for delivery
on using our express service
Finance this product
Finance
Alto Professional

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Fast Delivery

  • Six total inputs with a phantom powered XLR jack on channel 1
  • 1/4” Main, Tape, Headphone & Aux outputs for flexible signal routing
  • Perfect for musicians looking for a compact, capable mixer
  • Mic input channel with gold plated XLR and balanced line input
  • Two stereo input channels with balanced TRS jack

Product Details

Product: Alto ZMX52 5 Channel Compact Mixer

SKU: DDJ4759

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Fast Delivery

Alto 5 Channel, Compact Mixer

The ZEPHYR ZMX52 is a 5-channel mixer with all the essential inputs, outputs, and EQ for solo gigs and multimedia studios. It features one mono channel with a microphone input (with Phantom Power), balanced TRS input, and a two-band EQ. It also delivers two stereo channels with two balanced TRS inputs each. There's even two-track inputs for things such as audio playback. The ZMX52 is the perfect compact take-anywhere professional mixer.

The ZMX52 is the perfect mixer for quick, easy setups with no hassle. Not only can you can plug dynamic, condenser, and wireless microphones into the first channel, but you also get two stereo channel inputs for keyboards, drum machines, and other instruments. What's more, you can easily plug in your MP3 player, CD players, or audio from a DVD player into the CD/TAPE input. But, you also have a dedicated stereo output to send to a recorder in addition to the main stereo outputs. Choose the ZMX52 as the audio central command for your live performances, home studio, or video suite.

Just because the ZMX52 is the smallest, most affordable mixer we make doesn't mean you have to make sacrifices. This compact mixer brings the same standard of quality to your performances as our top-of-the-line models. All Alto Professional ZEPHYR ZMX mixers are designed with high headroom and ultra low-noise, discrete mic preamps so you always get the full dynamic range of your mix every time.

We designed every ZEPHYR ZMX mixer with your performance in mind. Sometimes venues are dark and it can be hard to see what you're working with. Alto Professional solves this problem by not only color coding each section of the mixer, but also by using brightly colored knobs so that you can easily find what you need to adjust before you ever lay a finger on the mixer.  Our blue, red and white pots are instantly easy to identify in dim lighting. LED indicators for output level, peak, and phantom power also assist in making sure that you have multiple visual cues that compliment everything you're hearing.

  • 12 total inputs including XLR jacks w/ phantom power on ch. 1 & 2
  • Expanded channel count perfect for small groups or sub-mixes
  • High headroom circuitry offering extra dynamic range
  • Ultra-low-noise discrete mic preamps
  • 2 aux sends per channel for external effects and monitoring
  • 3-band EQ on each channel
  • Two stereo input channels with balanced TRS jacks
  • Aux inputs/outputs for external audio source integration
  • Switchable phantom power
Input Channels (Mono Ch. 1) Microphone Input: Electronically balanced, discrete input configuration
Frequency Response: 20 Hz to 22 kHz, +/-1 dB
Distortion( THD&N): ≦0.005% at +4 dBu, 1 kHz
Gain range: 0 dB to 44 dB (Mic)
Maximum Voltage Gain: 74 dB Ch. Mic Input → Main Mix out & Tape out, 80 dB Ch. Mic Input → Control room & phones
SNR (Signal to Noise Rate): ≧110 dBu
Phantom power (Mic Pin2/Pin3 and Pin1): +18 V
Stereo Channels: (Ch. 2 - 5) Line Input: Electronically balanced
SNR (Signal to Noise Ratio): ≧110 dBu
Frequency Response: 20 Hz to 22 kHz, +/- 1dB
Distortion (THD&N): ≦0.005% at +4 dBu, 1 kHz
Gain range: 0 dBu
Maximum Voltage Gain: 30 dB Ch. Line → Main Mix out
Impedance Microphone Input: 3.9 kOhms
All Other Input: 10 kOhms or Greater
Tape Out: 1 kOhms
All Other Outputs: 120 Ohms
Equalization Mono channel: High ±15 dB @ 12 kHz, Low ±15 dB @ 80 Hz
Main Mix Section Output level: 0dBu Unbalanced, 1/4" Jacks
Max out: +22dBu Unbalanced, 1/4" Jacks
Noise (Bus noise): ≦-90 dB @ 20 Hz - 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

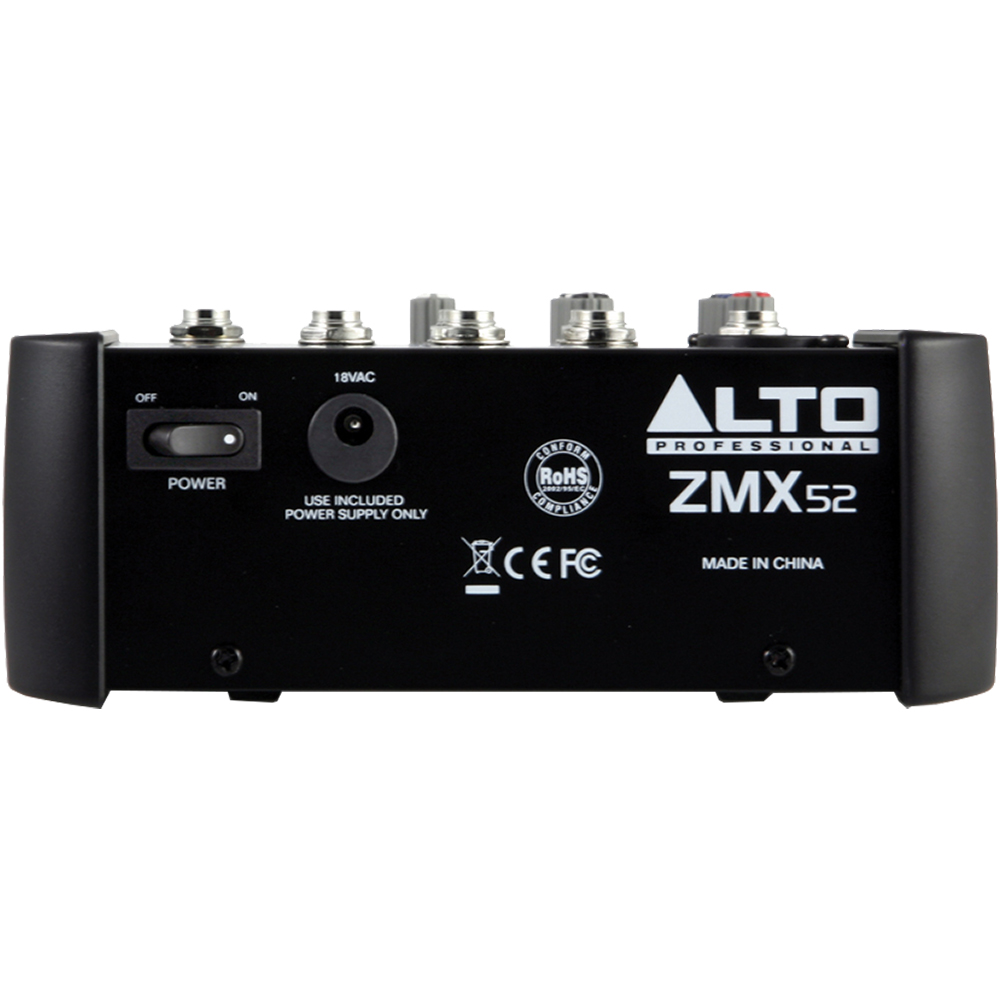

Power, Weigh & Dimensions Power Supply: 18 V, 500 mA
Rated Power Consumption: 9 W
Dimensions (WxLxH): 128.1mm x 204mm x 38mm
Weight: 1.65 lb
