Korg Minilogue XD Polyphonic Analogue Synthesizer Module (B-Stock)

B-stock

Zoom

Watch the Video

Condition B-Stock / Ex Demo
Warranty 2 Year Warranty
Delivery Free Delivery

A desktop module equipped with the same controllers as the keyboard version
Equipped with an analog synthesizer circuit and a digital multi-engine
Distinctive sound shaping from Wave shaping, Sync, Ring and Cross modulation
Drive switch that adds harmonics and drives the filter harder
Third oscillator multi engine with three different types of sound generator

More details

£449.00 ~~£565.00~~

Earn 449 Loyalty Points.

–+

AVAILABILITY:

Only 1 in stock, no more available

Order soon for delivery
on using our express service

Finance this product

Condition B-Stock / Ex Demo
Warranty 2 Year Warranty
Delivery Free Delivery

A desktop module equipped with the same controllers as the keyboard version
Equipped with an analog synthesizer circuit and a digital multi-engine
Distinctive sound shaping from Wave shaping, Sync, Ring and Cross modulation
Drive switch that adds harmonics and drives the filter harder
Third oscillator multi engine with three different types of sound generator

More details

Product Details

Product: Korg Minilogue XD Polyphonic Analogue Synthesizer Module (B-Stock)

SKU: DDJ3484-1-BS-2

Condition B-Stock / Ex Demo
Warranty 2 Year Warranty
Delivery Free Delivery

Description
Features
Specifications
Delivery & Returns
Customer Reviews

Korg Minilogue XD Synthesizer Module - B-Stock / Used

Listed as b-stock as this is a customer return. It is in full working order and is practically brand new. The customer opened it, tested it and couldn't get along with it. Includes full warranty.

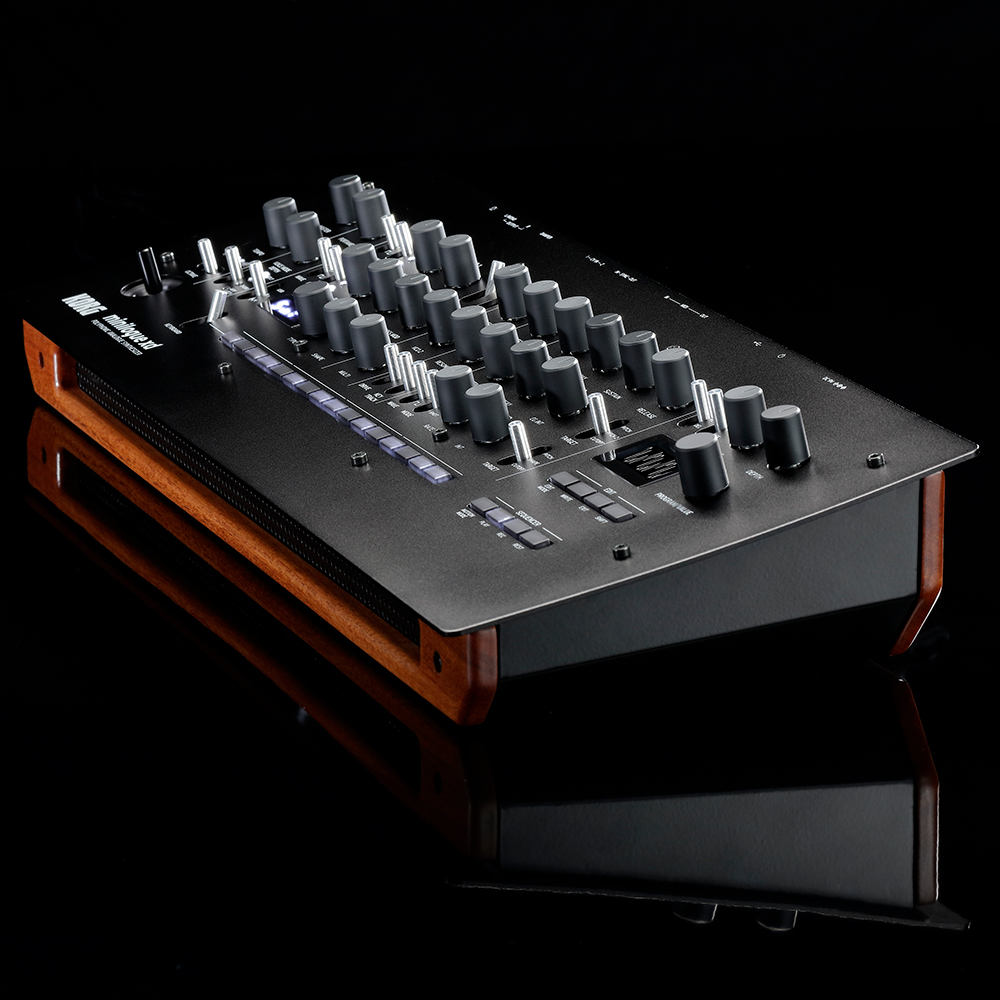

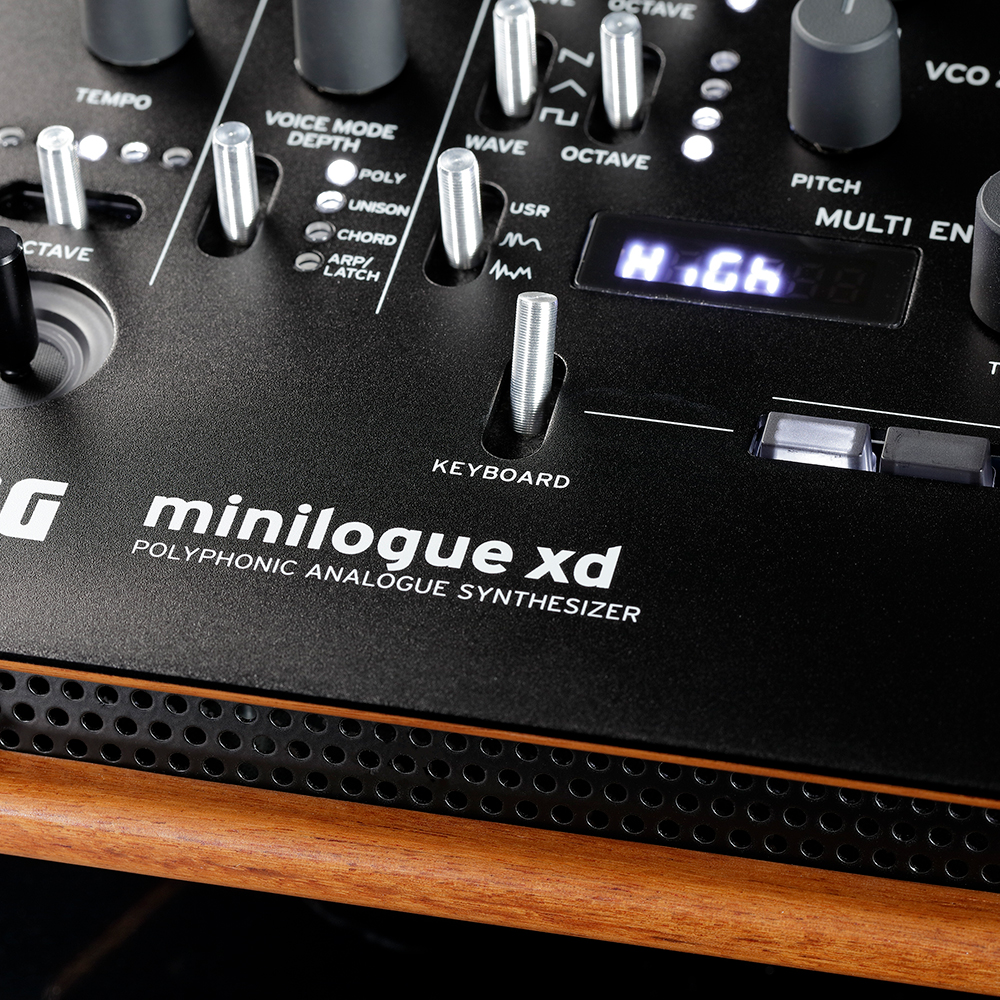

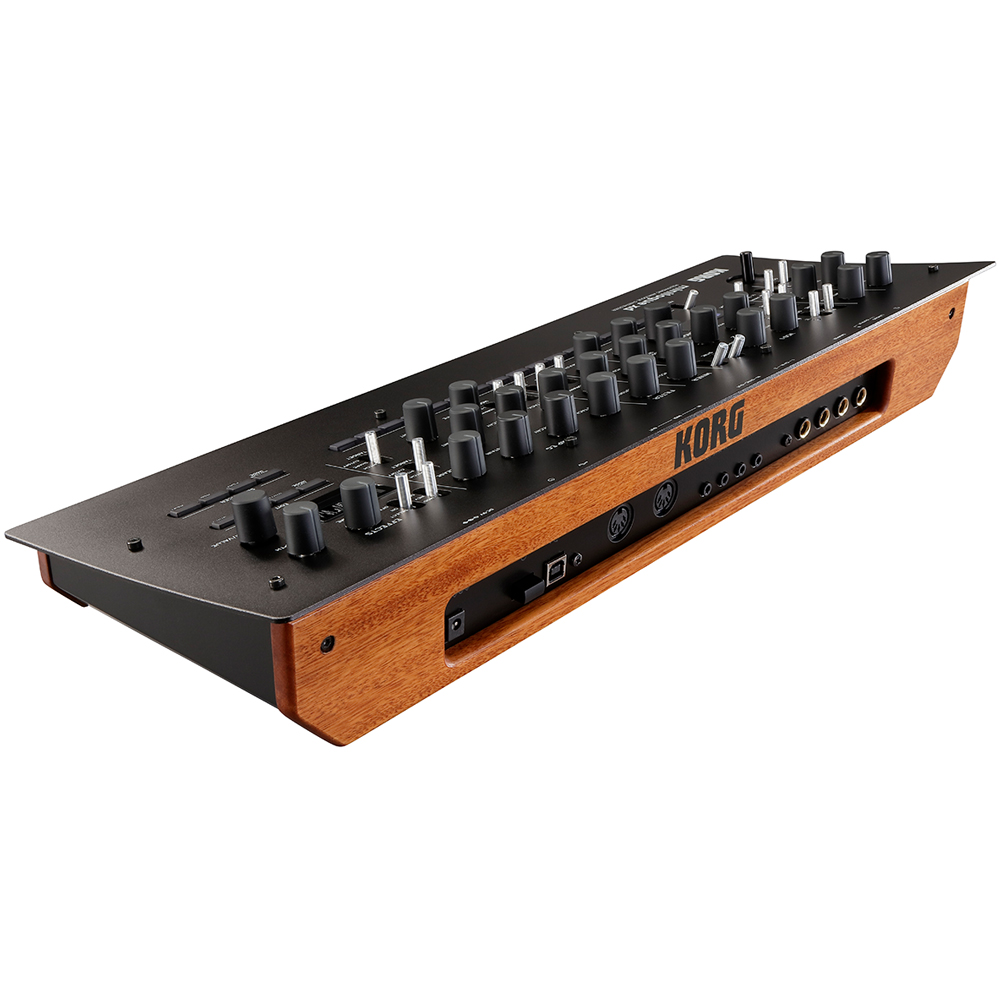

minilogue xd module is the new desktop module version of minilogue xd, the four-voice polyphonic analog synthesizer with a customizable digital multi-engine and built-in stereo digital effects.

The desktop module is equipped with the same controllers as the keyboard version, making it a great choice not only as an additional sound module for your keyboard or DAW but also providing excellent performability, giving you an easy way to include an analog polyphonic synth in your setup. It's also equipped with a poly-chain function that lets you connect it with another minilogue xd or minilogue xd module so that the two units can operate as a polysynth with a total of up to eight voices in your studio or on stage. Add the sounds of the minilogue xd to your setup or system!

A desktop module equipped with the same controllers as the keyboard version
Equipped with an analog synthesizer circuit and a digital multi-engine
Distinctive sound shaping from Wave shaping, Sync, Ring and Cross modulation
Drive switch that adds harmonics and drives the filter harder
Third oscillator multi engine with three different types of sound generator
Open-source user oscillators infinitely expands the xd module’s potential through hybrid sound design
High-quality digital effects use 32-bit floating point DSP processing
16 user oscillator slots and 16 user effect slots that you can customize
Polyphonic step sequencer provides 16 steps, and supports both realtime recording and step recording
Poly chain support - Use in conjunction with another unit in the minilogue xd series for poly assignment settings.
Dedicated librarian software

Specifications

Sound Generation
Analogue sound generator + Multi digital sound generator (Noise, VPM, User)

Maximum Polyphony
4 voices

Programs
500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.

Voice Mode
4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.

Sequencer
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters

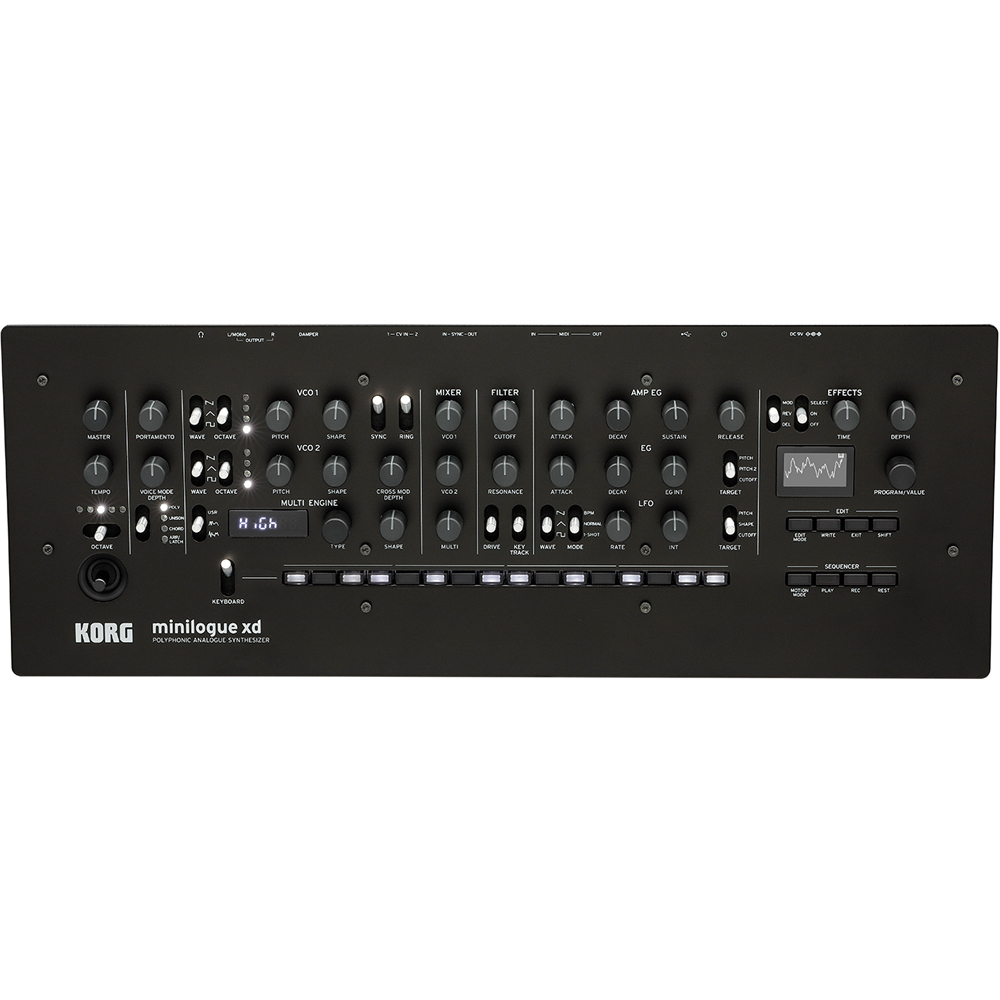

Main Synthesis Parameters

VCO1
WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE

VCO2 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE

MODULATION SYNC, RING, CROSS MOD DEPTH

MULTI ENGINE NOISE/VPM/USER, TYPE、SHAPE

MIXER
VCO1, VCO2, MULTI

VCF
CUTOFF, RESONANCE, DRIVE, KEYTRACK

AMP EG
ATTACK, DECAY, SUSTAIN, RELEASE

EG ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)

LFO
WAVE (SAW, TRIANGLE, SQUARE), MODE（BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

Main effect Parameters
TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

Effect types

MULTI ENGINE
Noise Generator 4 types
VPM oscillator 16 types
User oscillator 16 slots

MOD EFFECTS
CHORUS 8 types
ENSEMBLE 3 types
PHASER 8 types
FLANGER 8 types
USER 8 types

DELAY
DELAY 12 types
USER 8 slots

REVERB
REVERB 10 types
USER 8 slots

Controls
Joy stick that can modify different parameters for each program, PORTAMENTO knob

Display
Main Real-time OLED oscilloscope provides visual feedback of parameter changes MULTI ENGINE section 7 segments x 6 digit LED display

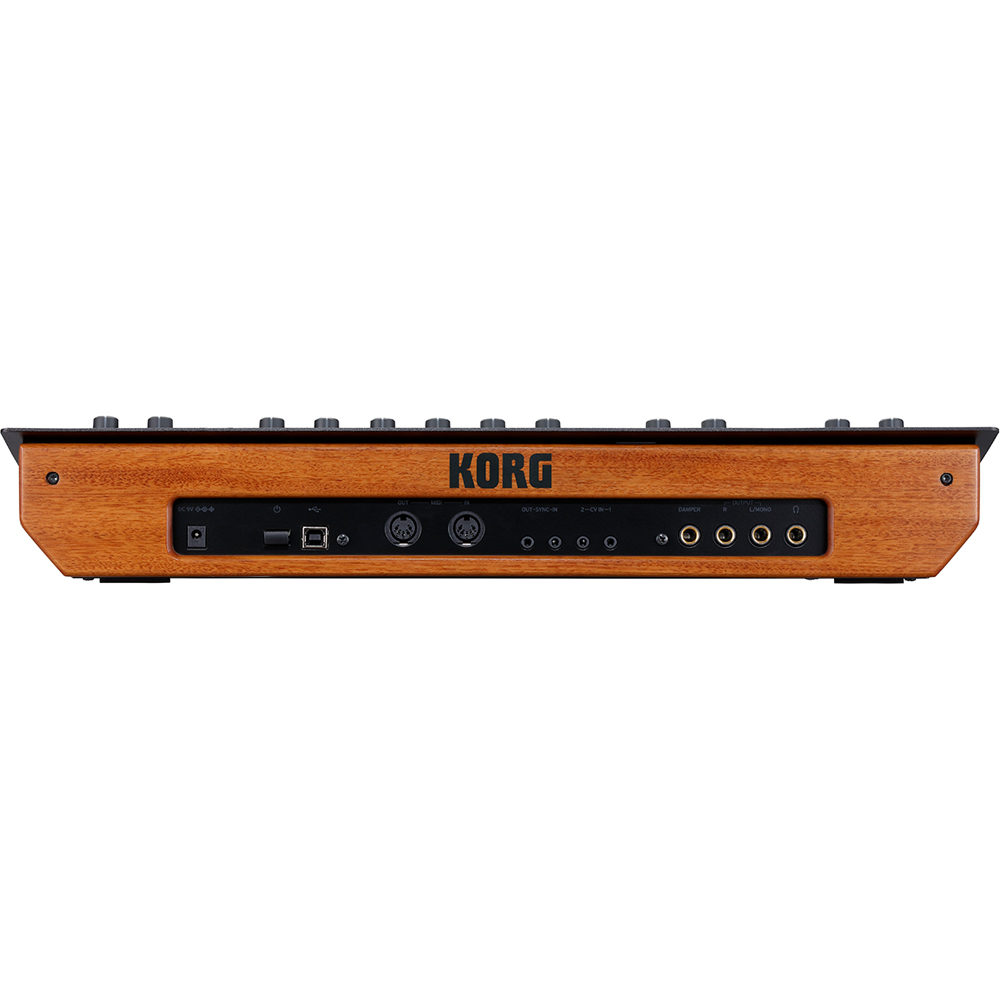

Input/Output connectors
Headphone
jack (Stereo phone jack)

OUTPUT L/MONO,
R jacks (monaural phone jack unbalanced)

CV IN 1, CV IN 2
jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)

SYNC IN
jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)

SYNC OUT
jack (3.5 mm [1/8"] mini jack, output level 5 V)

MIDI IN
jack

MIDI OUT
jack USB B jack

DAMPER
jack (half damper is not supported)

Power Supply
AC adapter (DC9 V)

Power Consumption
8 W

Included Items
AC adapter
