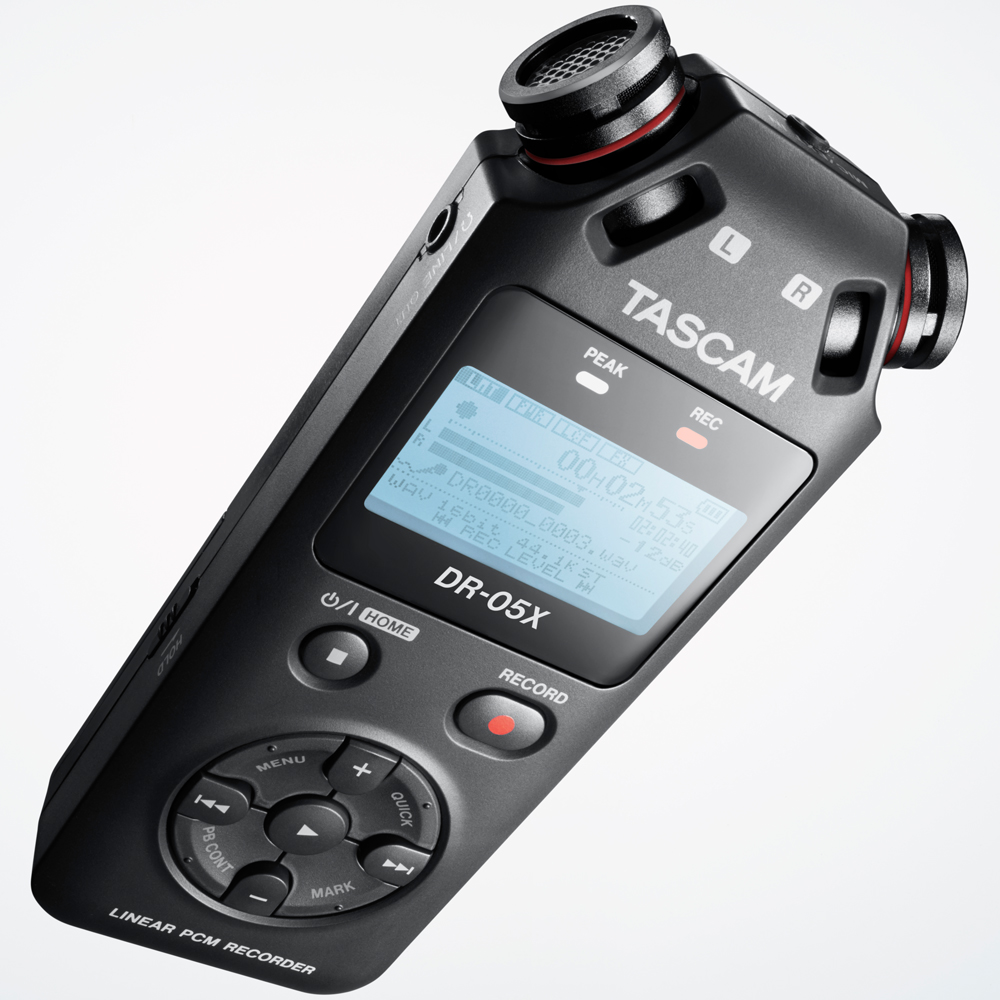

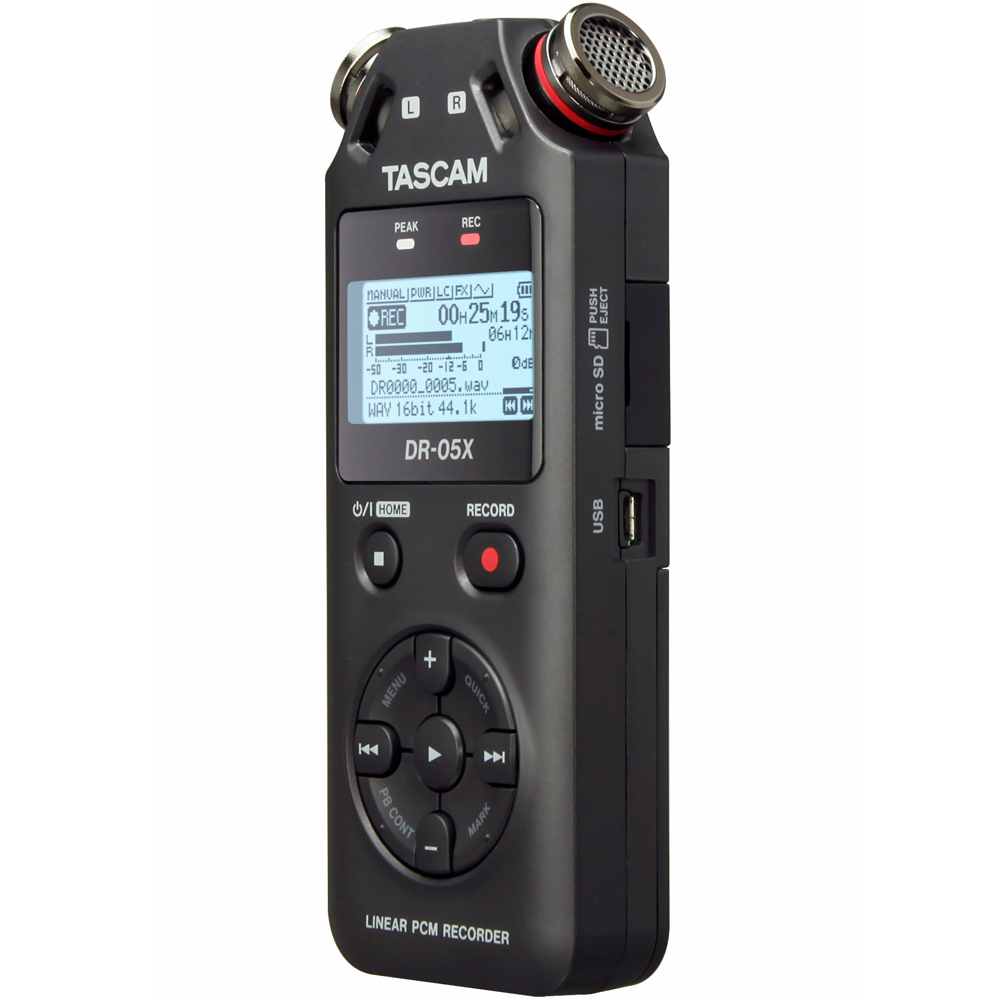

Tascam DR-05X Portable Audio Recorder & USB Interface

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • Stereo omni directional condenser microphones
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Overwrite function for Punch-In recording with one level of Undo
  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
  • Dictation mode designed for human voice recording and transcription
£119.00
Earn 119 Loyalty Points.
AVAILABILITY:
No stock, delayed despatch

No stock, delayed despatch

Order soon for delivery
on using our express service
Finance this product
Finance

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • Stereo omni directional condenser microphones
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Overwrite function for Punch-In recording with one level of Undo
  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
  • Dictation mode designed for human voice recording and transcription

Product Details

Product: Tascam DR-05X Portable Audio Recorder & USB Interface

SKU: DDJ3651

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

Handheld Digital Handheld Recorder With USB

Record clean and clear audio anywhere. Tascam DR-05X allows high-quality recording utilizing an easy-to-use interface, and is portable and powerful but with a size and price that anyone can handle. Dual internal condenser microphones can handle anything from subtle to loud to 125dB SPL, with sensitivity to capture every detail.

Simple to operate.
The layout of the DR-05X has been revamped to be quick and easy to work with one thumb. Operations like recording, adjusting levels, deleting bad takes and adding markers are just a button press away.

Extended battery life
DR-05X uses only two AA batteries and has ultra-long battery capability. When using built-in microphones, recording lasts 17.5 hours when recording with standard 2ch WAV, 44.1kHz/ 16bit format using alkaline batteries. Also DR-05X can be powered by a USB mobile battery as well for super long extended use.

Turning your room into a studio – in a minute.
Connect to a PC using USB Audio interface mode, and DR-X becomes a tool for voiceover work, live streaming, podcasting and songwriting with studio-quality audio. Built-in microphones work as USB microphones without complicated driver installs.

Upgrade your movie
Auto tone function provides easy-adjustments for on-site movie editing, ideal for DSLR filmmaking. The internal slate tone generator produces various tones for easy track making and recognition. Please use the dedicated accessory kit (AK-DR11C) for connecting.

  • Stereo omni directional condenser microphones
  • Support multiple menu languages (ENG/FRA/DEU/ITA/ESP/RUS/PRT/JPN/CHI/KOR)
  • Overwrite function for Punch-In recording with one level of Undo
  • Functions as a 2in/ 2out USB Audio Interface for Mac, PC or iOS recording
  • Dictation mode designed for human voice recording and transcription
  • Reverb effect for vocal and instrument resonance
  • Auto recording function that can detect the sound input signal level and automatically start recording
  • Proven high sound pressure design for capturing loud sounds of up to 125dB SPL
  • Peak reduction function
  • Self timer recording function
  • Seamless gain control
  • Three low cut filter levels (40/80/120Hz)
  • Speed change (VSA) function for adjusting the speed from 0.5 to 1.5 times (in 0.1 increments)
  • Level align feature that prevents uneven volume levels
  • Equalizer setting for adjusting playback sound quality
  • Divide/delete functions
  • Loop/repeat playback function
  • Resume function that retains the last stop position and starts playback from that position when power is turned back ON
  • Jump back and play (1 to 10 sec in 1 sec increments, 10 sec, 20 sec, 30 sec)
  • QUICK menu button for easy access to various functions
  • High-quality 96kHz/24-bit WAV/BWF linear PCM recording and long recordings as MP3 files possible
  • microSD/microSDHC/microSDXC (up to 128GB) cards can be used as recording media
  • Mark function that can set up to 99 points for a single track Mark information can be utilized by BWF compatible software
  • Audio files created on computers can be played (Only in formats compatible with this product)
  • Built-in monaural speaker with an output of 0.3W
  • Pre-recording buffer that can record up to 2 seconds prior to starting recording
  • When a predetermined maximum file size is reached, a new file is created to continue recording
  • Track increment creates new files at arbitrary locations during recording
  • File name format can be set to use a user-defined word or the date
  • The first six characters of the file name for recording can be set freely
  • Playlist function
  • A chromatic tuner is equipped which is helpful for practicing musical instruments
  • Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
  • Stereo mini line output / Headphone output connector
  • 128×64 pixel graphic LCD with backlight
  • High-speed file transfer to a computer is possible using USB 2.0
  • Powered by 2 AA batteries, USB bus power, or optional AC adapter (PS-P520E)
  • Tripod attachment screw-hole built in to the unit
Specification Recording Media
microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB)

File System
FAT16/32

Recording File Format
WAV / BWF
Sampling Frequency 44.1k / 48k / 96k Hz
Bit-depth 16 / 24-bit

MP3
Sampling Frequency 44.1k / 48k Hz
Recording Bit-rate 32k / 64k / 96k / 128k / 192k / 256k / 320k bps
Playback Bit-rate 32k to 320k bps, VBR, ID3TAG Ver. 2.4

Number of Channels
2-channel (Stereo) / 1-channel (Mono)

Playback speed control 0.5 to 1.5 times (in 0.1 increments) * 44.1k/48kHz only

Built-in Microphone Omnidirectional, Stereo

MIC/EXT IN
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power)
Nominal Input Level –20dBV
Maximum Input Level –4dBV
Input Impedance 18kΩ or more (PLUG IN PWR: OFF)
2kΩ or more (PLUG IN PWR: ON)

PHONES/LINE OUT
Connector 1/8" (3.5mm) Stereo Mini jack (Unbalanced)
for LINE connection
Nominal Output Level –14dBV (10kΩ load)
Maximum Output Level +2dBV (10kΩ load)
Output Impedance 12Ω
for Headphones connection
Maximum Output Power 20mW + 20mW (32Ω load)

USB
Connector USB Micro B-type
Format USB2.0 HIGH SPEED

Built-in Speaker 0.3W, Mono
Low-cut Filter 40 / 80 / 120Hz
Chromatic Tuner C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments)
Effector 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2)

Tripod attachment screw-hole 1/4" Tripod attachment screw-hole
Power 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter)
Power Consumption 1.7 W (Max)

Battery Operation Time (Recording)
Alkaline (EVOLTA) approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)
Ni-MH (eneloop) approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA)

Dimensions (W×H×D)
2.4" × 5.55" × 1.02" / 61 × 141 × 26 mm

Weight
4.1 oz. / 116 g
Audio performance Frequency Response
Fs 44.1kHz 20Hz to 20kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Fs 48kHz 20Hz to 22kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)
Fs 96kHz 20Hz to 40kHz, +1/–3dB (EXT IN to LINE OUT, JEITA)

Total Harmonic Distortion
0.05% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)

Signal-to-Noise Ratio
92 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA)
Minimum requirements Windows
Computer Windows PC with USB2.0 or USB3.0 port
CPU Dual Core, 2GHz or faster (x86)
Memory 2GB or more

Macintosh
CPU Power PC, iMac, G3, G4, G5 266MHz or faster
Memory 64MB or more
USB USB2.0 recommended
