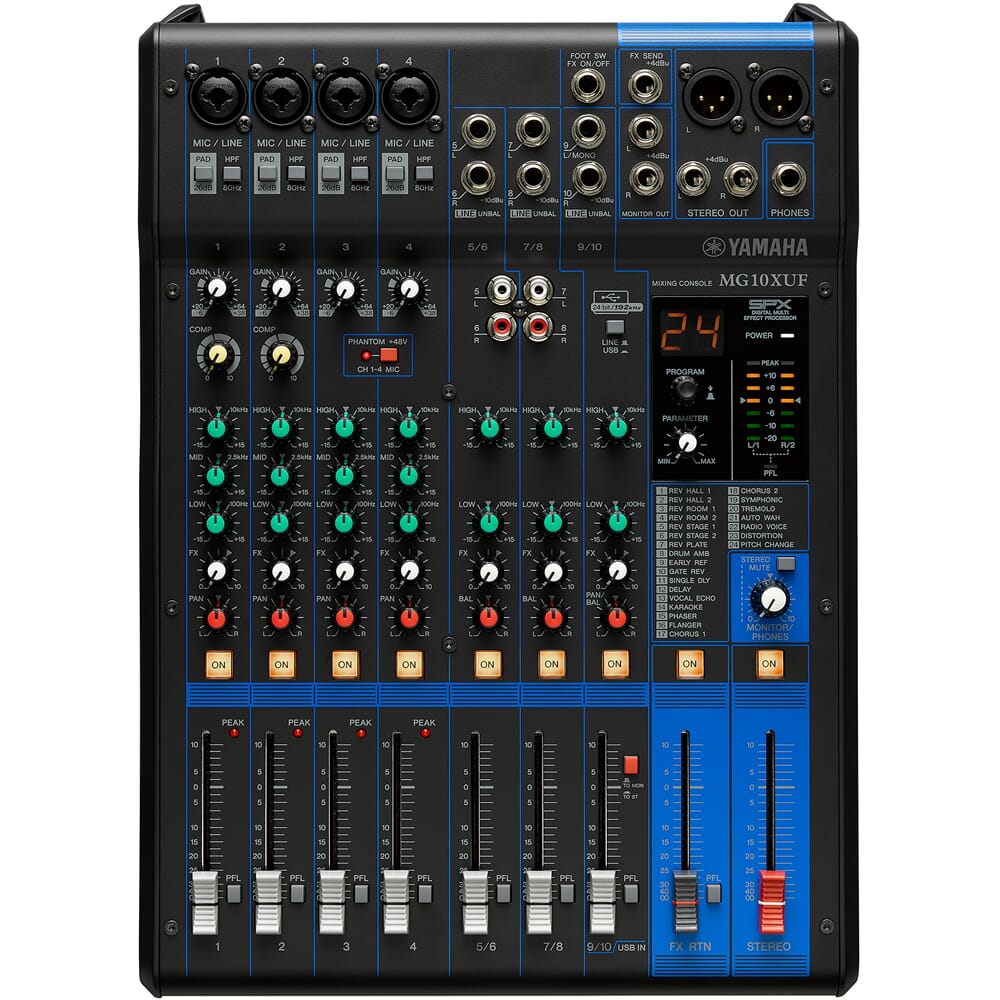

Yamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI Software

SKU: DDJ2629-1

Demo in store
£282.50 £399.00
Availability:
Only 2 available, order now!

Order in the next for delivery on using our express service

Novuna logo

Finance available on orders over £556

Klarna badge >

Add to your purchase:

Key features:

  • 10-Channel Mixing Console
  • “D-PRE” mic preamps
  • High-grade effects: SPX with 24 programs
  • Works with the iPad (2 or later)
  • Includes Cubase AI DAW
  • Brand new
  • 2 Year Warranty
  • Free delivery
Description
Features
Specifications
Delivery

How can we help?

Speak to an expert, call us on 01274 394 730

Speak to an expert

Call us on (01274) 394 730
Seen a better price? Ask for a price match

Seen a better price?

> Ask for a price match
We're rated Excellent! Check out our reviews
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Yamaha 10 Channel Mixer With Effects, MG10XUF

The Yamaha MG10XUF Analog Mixer builds upon the success of the renowned MG10XU and replaces the master channel control knobs with faders. The MG10XUF is designed to provide an exceptionally transparent sound and an intuitive, hands-on mixing experience.

The MG10XUF is equipped with 10 input channels, including 4 microphone channels with D-PRE preamps, along with independent 3-band EQs, 1-knob compressors, pad switches and switchable +48V phantom power.

This Yamaha analog mixing console has an intuitive layout and a heavy-duty metal chassis, capable of withstanding demanding conditions of both live performance and studio environments. The Yamaha MG10XUF features a built-in USB audio interface which enables you to record directly to your computer and playback 24-bit/192kHz audio.

The included version of Cubase AI DAW software allows you to record and edit high-resolution tracks.

  • 10-Channel Mixing Console
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • Cubasis LE for iPad available at App Store
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
On-board processors
  • SPX algorithm: 24 programs
  • PARAMETER control: 1
  • FOOT SW: 1 (FX RTN CH on/off)
Phantom power
  • +48 V
Digital I/O
  • USB Audio Class 2.0 compliant
  • Sampling Frequency: Max 192 kHz
  • Bit Depth: 24-bit
Input Channels
  • Mono[MIC/LINE]: 4
  • Stereo[LINE]: 3
Output Channels
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 1
Bus
  • Stereo: 1
  • AUX [FX]: 1
PAD
  • 26 dB (Mono)
HPF
  • 80 Hz, 12 dB/oct (Mono)
COMP
  • 1-knob compressor
  • Threshold: +22 dBu to -8 dBu
  • Ratio: 1:1 to 4:1
  • Output level: 0 dB to 7 dB
  • Attack time: approx. 25 msec
  • Release time: approx. 300 msec
EQ HIGH
  • Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID
  • Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
EQ LOW
  • Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED
  • LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter
  • 2x7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total harmonic distortion
  • 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min
  • 0.005 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response
  • +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent input noise
  • -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise
  • -102 dBu (STEREO OUT, STEREO master fader: Min)
Crosstalk
  • -83 dB
Power requirements
  • PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption
  • 22.9 W
Dimensions (W x H x D)
  • 275 mm (10.8") x 110 mm (4.3") x 390 mm (15.4")
Net weight
  • 3.3 kg (7.3 lbs.)
Accessories
  • Owner’s Manual
  • Technical Specifications
  • AC power cord
  • Cubase AI Download Information.
Operating Temperature
  • 0 to +40˚C
Optional Accessory (not included)
  • Foot Switch FC5
