Korg Minilogue XD Polyphonic Analogue Synthesizer Keyboard

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • Analogue circuitry
  • Digital multi-engine
  • High quality digital effects
  • Fully customizable user defined parameters
  • Joystick pitch control
£515.00 £610.00
Earn 515 Loyalty Points.
+
AVAILABILITY:
In stock, immediate despatch

In stock, immediate despatch

Order soon for delivery
on using our express service
Finance this product
Finance
Korg

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • Analogue circuitry
  • Digital multi-engine
  • High quality digital effects
  • Fully customizable user defined parameters
  • Joystick pitch control

Product Details

Product:

Korg Minilogue XD Polyphonic Analogue Synthesizer Keyboard

SKU: DDJ3484

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

Korg Minilogue XD Synthesiser

Take your synthesis to the next level. The Korg Minilogue XD is the next generation in sound synthesis and design. The Minilogue's intuitive design offers newcomers a great starting point for their journey into analogue sound design. The Minilogue also features a very powerful digital multi-engine effects unit, a sequencer, and micro-tuning functionality. The number of sonic possibilities is endless and with its excellent design, the Minilogue is a joy to play and experiment with, with no physical barriers to making the sounds you hear in your head into a reality.

The Minilogue has a very deep set of extra features that really help it shine. The joystick, the voice mode, micro-tuning, and the helpful and great looking oscilloscope display. If you're after a synthesizer that will keep you coming back for more and features an infinite amount of uses, then look no further than the Korg Minilogue XD. True power, in a compact, sleek form.

Incredible Analog Circuit
Featuring best in class analogue circuitry. The Korg Minilogue XD is a step ahead of the curve. The Minilogue synthesizer features a four-voice polyphonic synthesis circuit, which gives you the best sound possible for an instrument at such a small size. The efficient voice structure gives you a logical step-by-step sound design process and also comes with sync/ring, cross modulation, and a two pole feature. The scope of possibilities with the minilogue contradicts its size. You can obtain any sound you want, from ambient, atmospheric pads to pulsing EDM leads. All with a layer of grit and warmth so typical of analogue based synthesizers.

Profound Effects
Take your sound design further, and deeper. The multi-engine delivers a digital sound providing your sound design with even more possibilities. The coupling of analogue and digital offers a huge amount of scope for creating sounds and music. Featuring a Noise Generator, a VPM Oscillator, and even your own customer User Oscillators, downloaded from the internet.

The 32-bit floating point DSP processing opens up a world of effects for you to use on your sounds. Modulation effects, reverb, and delays can all be used simultaneously. This gives you the finishing touch to your sounds and can completely change your overall output just via the addition of a little bit reverb or delay. Chorus', warm tape delay, and a wide range of reverbs. The Minilogue XD is a step up from the competition.

Step It Up
Providing you with 16 steps of sequencing power the Minilogue XD is the perfect performance machine. Select your steps one by one, allowing for complete control over the automation of pitch and rhythm. Korg's Motion sequence lets you record movements of four different knobs, giving you incredible automation power all from the Minilogue.

Intuitive and Creative
The layout of the Minilogue is second to none. It gives you a full overview of what is possible with this synthesizer. Everything is laid out logically, giving you a very efficient sound design process. There are a lot of little features too, like the joystick. The joystick gives you 360-degree control over pitch bending, modulation. The Minilogue also features an incredibly detailed oscillator view. Allowing you to see a visual representation of your waveshape, offering a brilliant reference for crafting your sounds, and of course, it looks very cool too.

  • Analogue circuitry
  • Digital multi-engine
  • High quality digital effects
  • Fully customizable user defined parameters
  • Joystick pitch control
  • Polyphonic step sequencer controlled
  • Micro tuning
Specifications

Keyboard
37-keys (Slim-key, velocity sensitive)

Sound Generation
Analogue sound generator + Multi digital sound generator (Noise, VPM, User)

Maximum Polyphony
4 voices

Programs
500 voices (more than 200 preload, 300 user programs).
Each program provides a program sort function that includes voice mode settings.
Favorite function built in.

Voice Mode
4 (POLY, UNISON, CHORD, ARP / LATCH).
The VOICE MODE DEPTH setting allows different parameters to be varied for each mode.

Sequencer
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters

Main Synthesis Parameters

VCO1
WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE

VCO2 WAVE (SAW, TRIANGLE, SQUARE), OCTAVE, PITCH, SHAPE

MODULATION SYNC, RING, CROSS MOD DEPTH

MULTI ENGINE NOISE/VPM/USER, TYPE、SHAPE

MIXER
VCO1, VCO2, MULTI

VCF
CUTOFF, RESONANCE, DRIVE, KEYTRACK

AMP EG
ATTACK, DECAY, SUSTAIN, RELEASE

EG ATTACK, DECAY, EG INT, TARGET (PITCH, PITCH2, CUTOFF)

LFO
WAVE (SAW, TRIANGLE, SQUARE), MODE(BPM, NORMAL, 1-SHOT), RATE, INT, TARGET (PITCH, SHAPE, CUTOFF)

Main effect Parameters
TYPE (MODULATION, REVERB, DELAY), ON/OFF (SELECT, ON, OFF), TIME, DEPTH

Effect types

MULTI ENGINE
Noise Generator 4 types
VPM oscillator 16 types
User oscillator 16 slots

MOD EFFECTS
CHORUS 8 types
ENSEMBLE 3 types
PHASER 8 types
FLANGER 8 types
USER 8 types

DELAY
DELAY 12 types
USER 8 slots

REVERB
REVERB 10 types
USER 8 slots

Controls
Joy stick that can modify different parameters for each program, PORTAMENTO knob

Display
Main Real-time OLED oscilloscope provides visual feedback of parameter changes MULTI ENGINE section 7 segments x 6 digit LED display

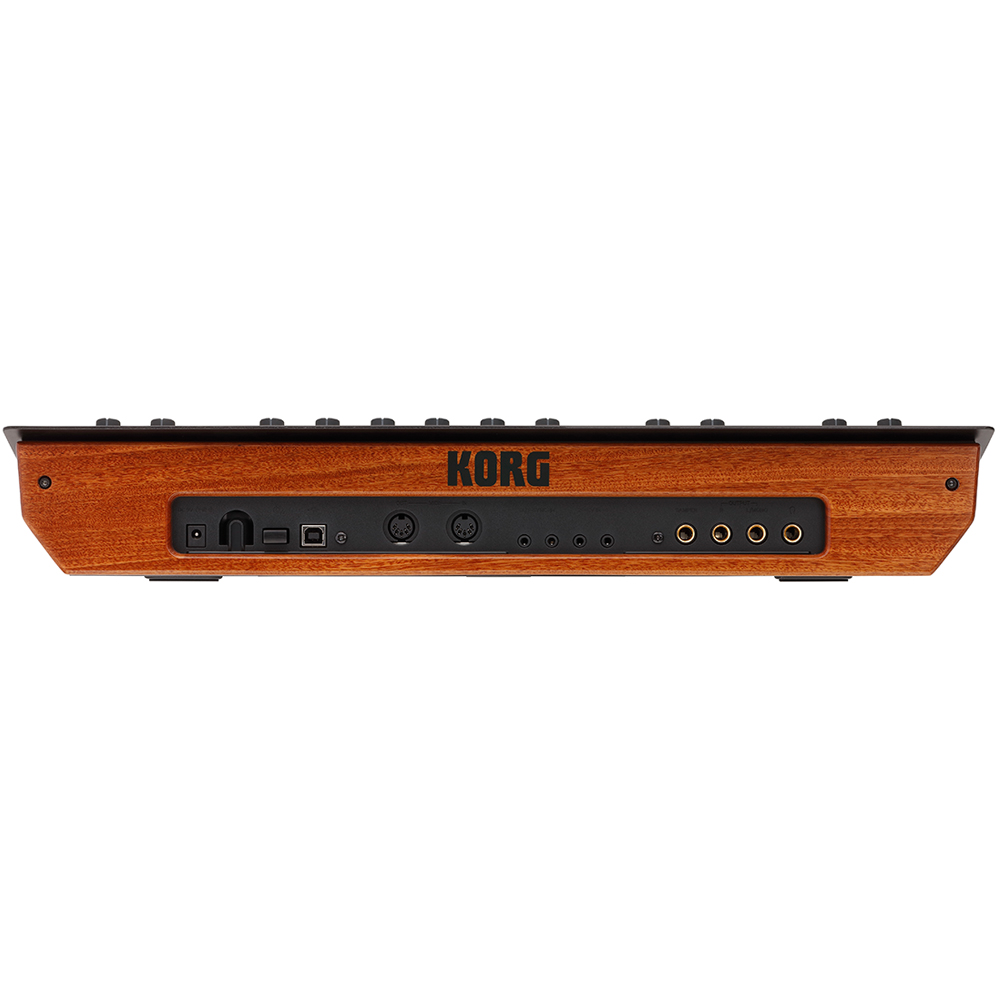

Input/Output connectors
Headphone
jack (Stereo phone jack)

OUTPUT L/MONO,
R jacks (monaural phone jack unbalanced)

CV IN 1, CV IN 2
jacks (3.5 mm [1/8"] monoural mini jack, Input voltage: -5 V – +5 V (Modulation mode), -3V – +5 V (CV/Gate mode)

SYNC IN
jack (3.5 mm [1/8"] mini jack, maximum input level 20 V)

SYNC OUT
jack (3.5 mm [1/8"] mini jack, output level 5 V)

MIDI IN
jack

MIDI OUT
jack USB B jack

DAMPER
jack (half damper is not supported)

Power Supply
AC adapter (DC9 V)

Power Consumption
8 W

Dimensions
(W x D x H) 500 mm x 300 mm x 85 mm / 19.69" x 11.81" x 3.35"

Weight
2.8 kg / 6.17 lbs.

Included Items
AC adapter
