LD Systems MAUI 5W Column PA System with Mixer & Bluetooth (Pair)

£979.00 £1,178.60 Save:  £199.60 (17%)
Earn 979 Loyalty Points.
Only 1 in stock, immediate despatch

Only 1 in stock, immediate despatch

Order soon for delivery on using our express service

Condition:  Brand New
Warranty:  2 Year Warranty
Delivery:  Free Delivery

  • Ultra compact column PA
  • All-in-one sound reinforcement and monitoring system
  • 800 watts of peak power
  • Built-in 4-channel mixer with Bluetooth© technology
  • Cableless assembly in seconds
LD Systems

Product Details


LD Systems MAUI 5W Column PA System with Mixer & Bluetooth (Pair)

SKU: DDJ2740

Condition:  Brand New
Warranty:  2 Year Warranty
Delivery:  Free Delivery

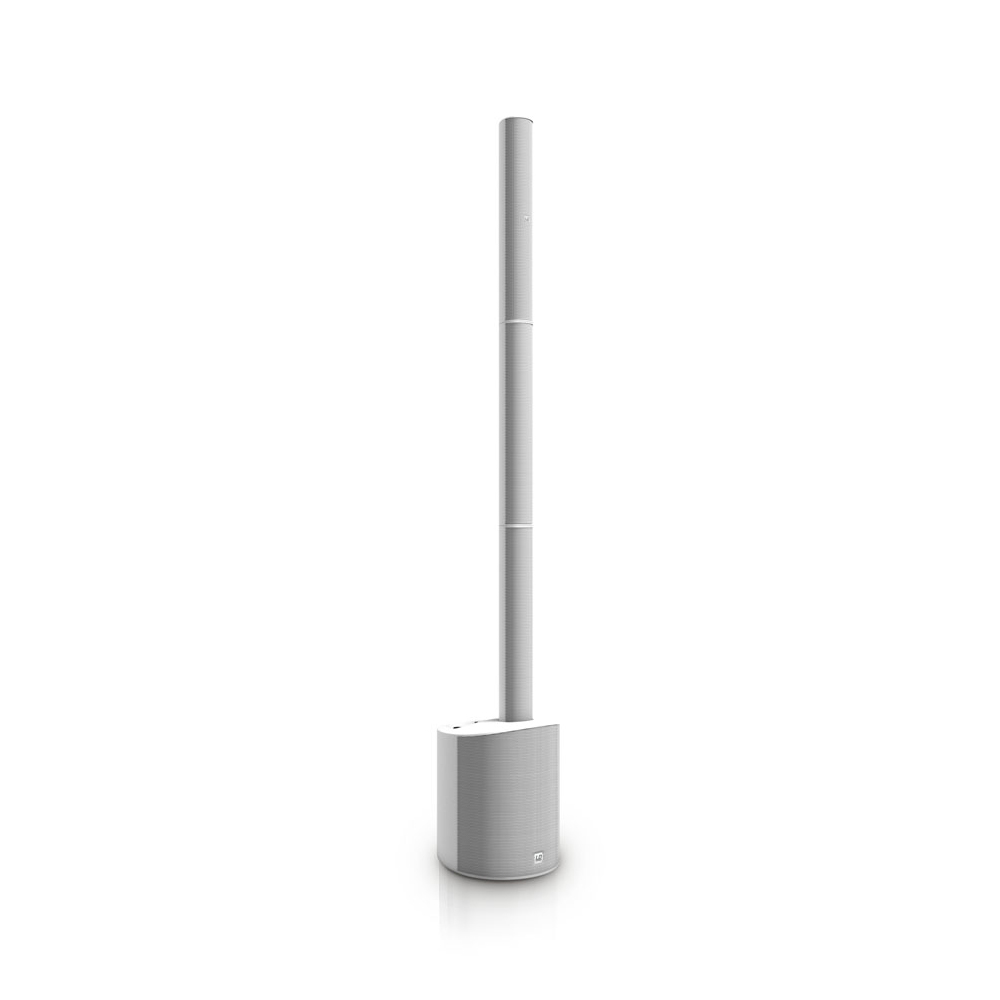

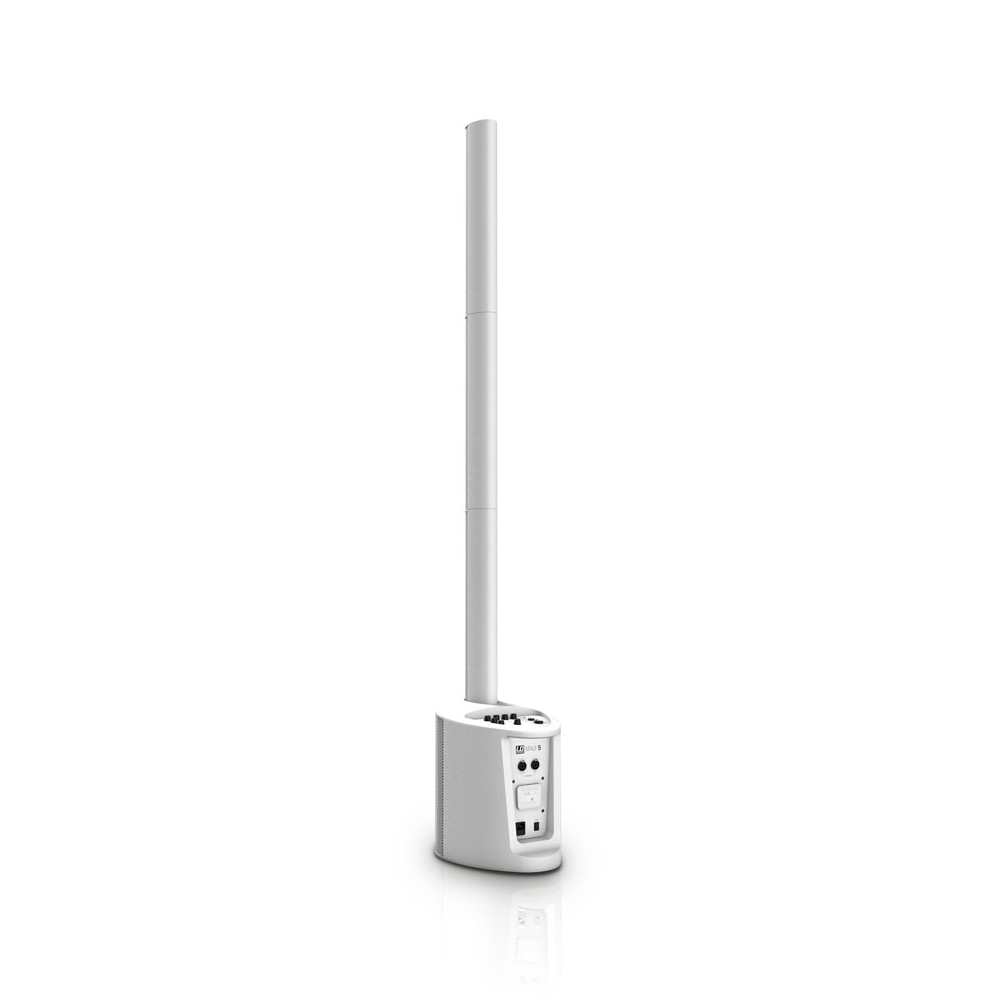

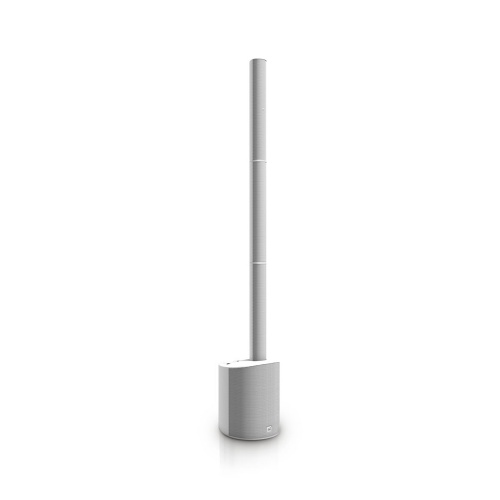

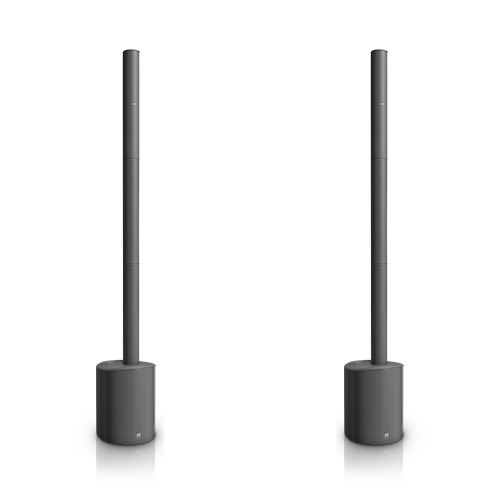

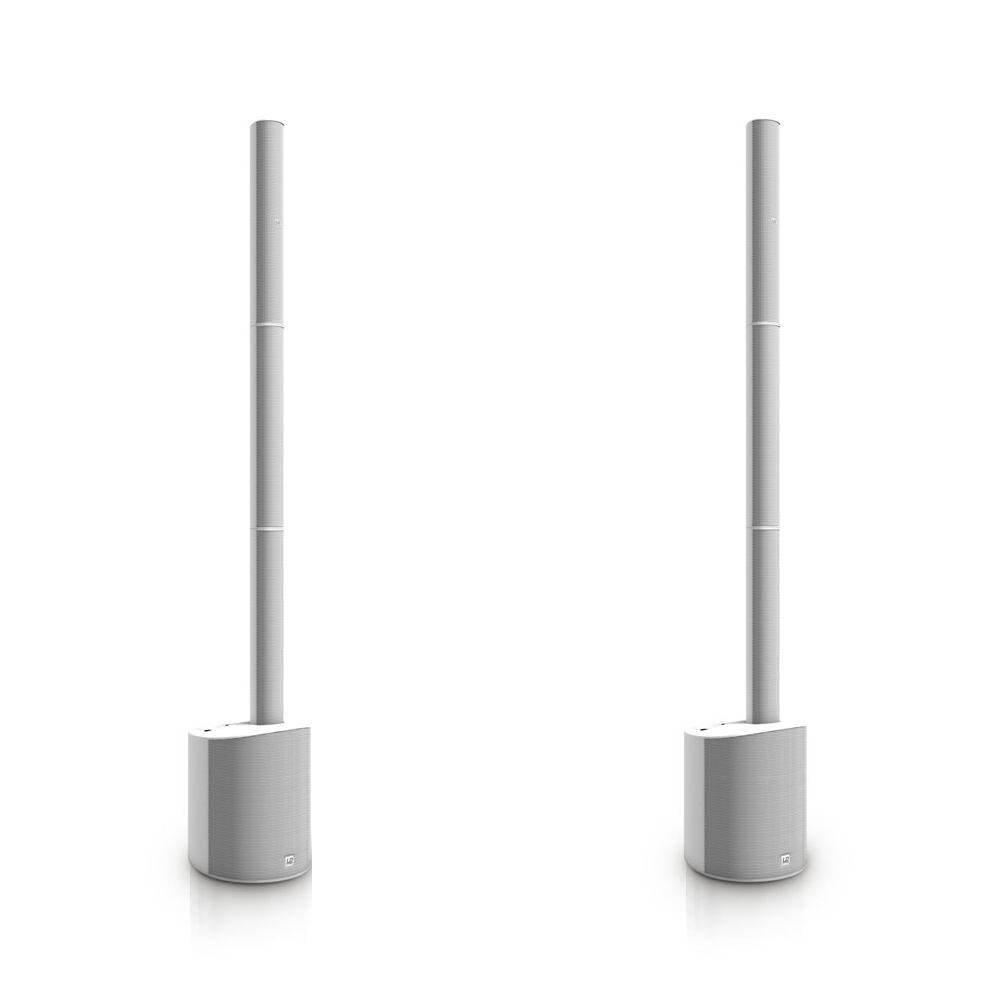

LD Systems MAUI 5W Ultra Compact PA System (Pair)

Please note: There is no 'mix out' function on the Maui 5 therefore to connect these together it must be done with an external mixer which negates the bluetooth function.

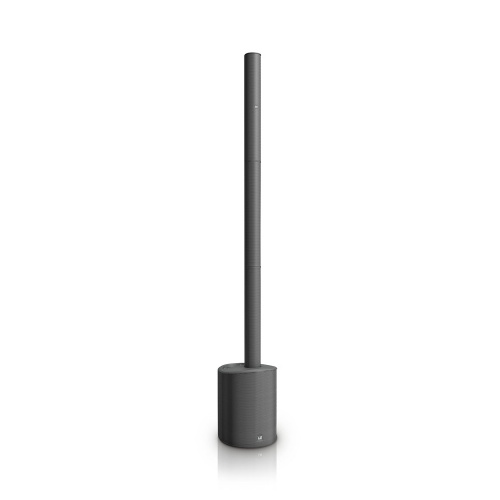

The ultra compact MAUI 5W weighs in at about 11 kg while delivering 800 watts of peak power and a maximum SPL of 120 dB.

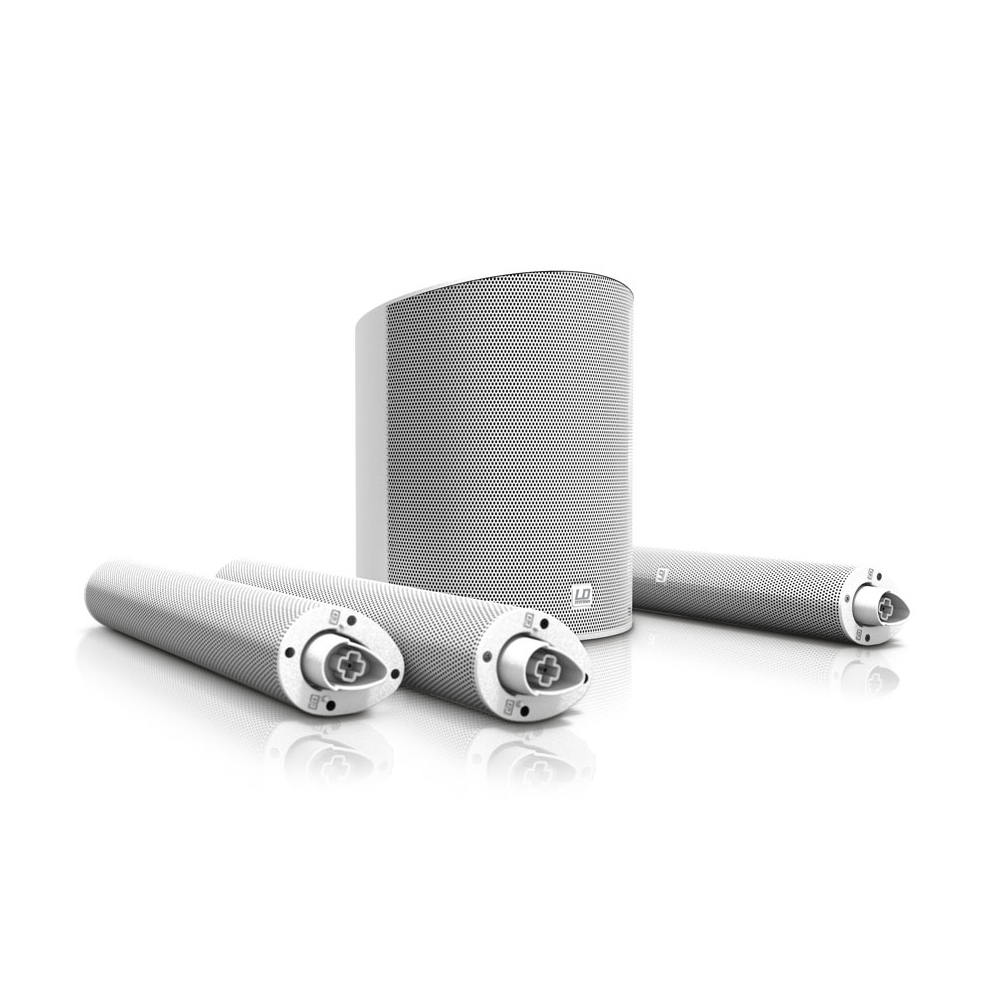

Providing both sound reinforcement with extended coverage and feedback resistant monitoring the subwoofer base and 3-piece column system assembles in seconds with custom multipin connectors. The junior member of the MAUI family is most easily portable and fits onto any car seat.

The vented 8" subwoofer also houses the system's Class D amplification with overcurrent, short circuit and thermal protection, LD Systems' proprietary LECC digital processing and a 4-channel mixer. Featuring Bluetooth technology for wireless streaming and microphone, line level and hi-Z inputs which can be used simultaneously the MAUI 5W lets you connect a wide variety of sources including music players and instruments such as keyboards or guitars.

Individual level controls, subwoofer and master volumes plus high shelf filtering for room correction enable a perfectly balanced performance.

  • Ultra compact column PA
  • All-in-one sound reinforcement and monitoring system
  • 800 watts of peak power
  • Vastly extended coverage
  • LECC digital processing for controlled dynamic performance
  • Built-in 4-channel mixer with Bluetooth© technology
  • Comprehensive connectivity
  • Cableless assembly in seconds
  • Easy portability
Type Active
Colour White
Max. SPL (peak)  124 dB
Frequency response 50 - 20000 Hz
Dispersion (H x V) 120° x 20 °
Overall height 2030 mm
Weight 24,9 kg
Low/mid driver dimensions 3 x 6.5 "
Woofer size 3 x 165.1 mm
Woofer magnet Ferrite
Woofer brand Custom-made
Woofer voice coil 38.1mm
Cabinet construction Vented 15mm plywood
Cabinet surface Texture paint
Subwoofer dimensions 285mm wide x 650mm height
Subwoofer weight 17.8kg
Midrange size 8 x 76.2mm
Midrange magnet Ferrite
Midrange brand Custom-made
Midrange voice coil 25.4mm
Horn Waveguide
Tweeter size 25.4mm
Tweeter magnet Neodymium
Tweeter brand Custom-made
Tweeter voice coil 25.4mm
Loudspeaker inputs 1
Speaker input connections Custom-made multipin
Mid/Hi system cabinet material Aluminium
Mid/Hi system cabinet surface HD coating
Mid/Hi system width  96mm
Mid/Hi system height 620 / 730mm
Mid/Hi system depth 104mm
Mid/Hi system weight 5.5 / 2.5kg
Amplifier Class  D
Amplifier Output System (RMS) 200w
Amplifier Output System (Peak) 800w
Protection circuits DC protection , Multiband limiter , short circuit , thermal overload
Cooling Convection
Operating Temperature -40 °C
Humidity Range 10% to 80%

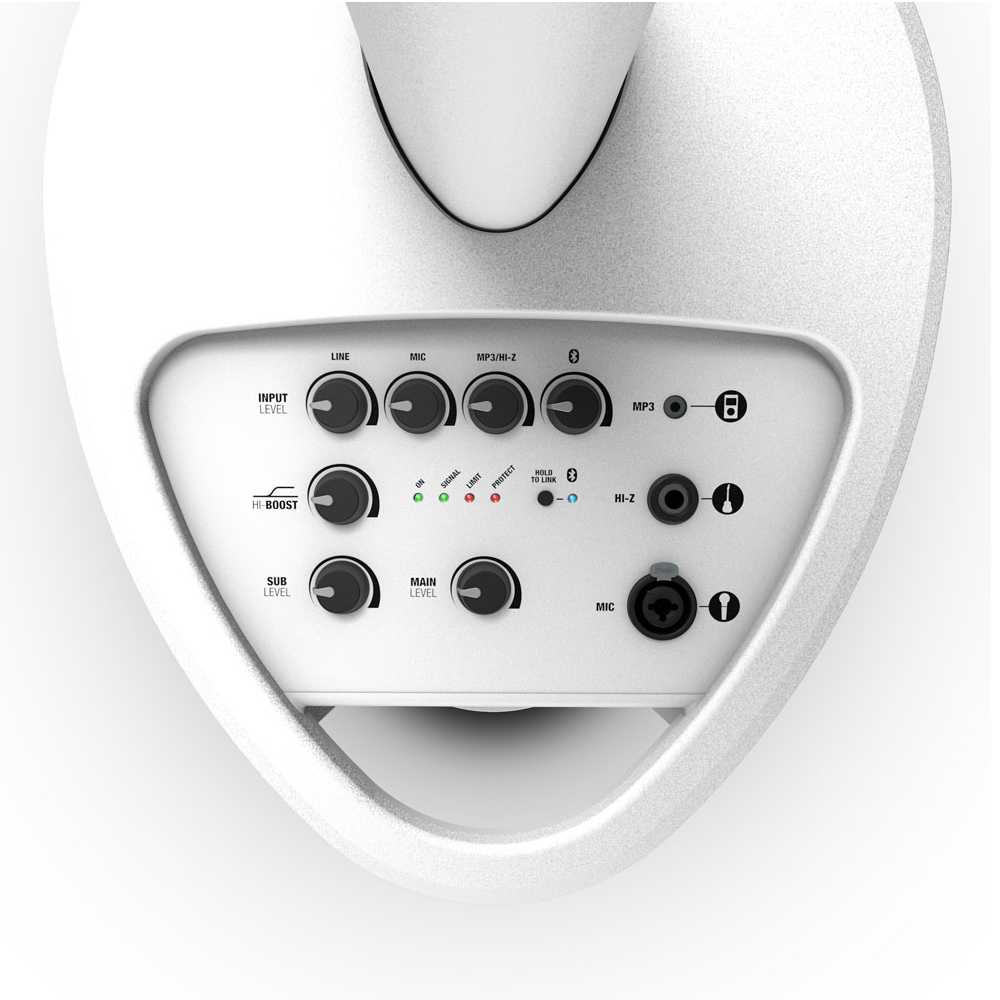

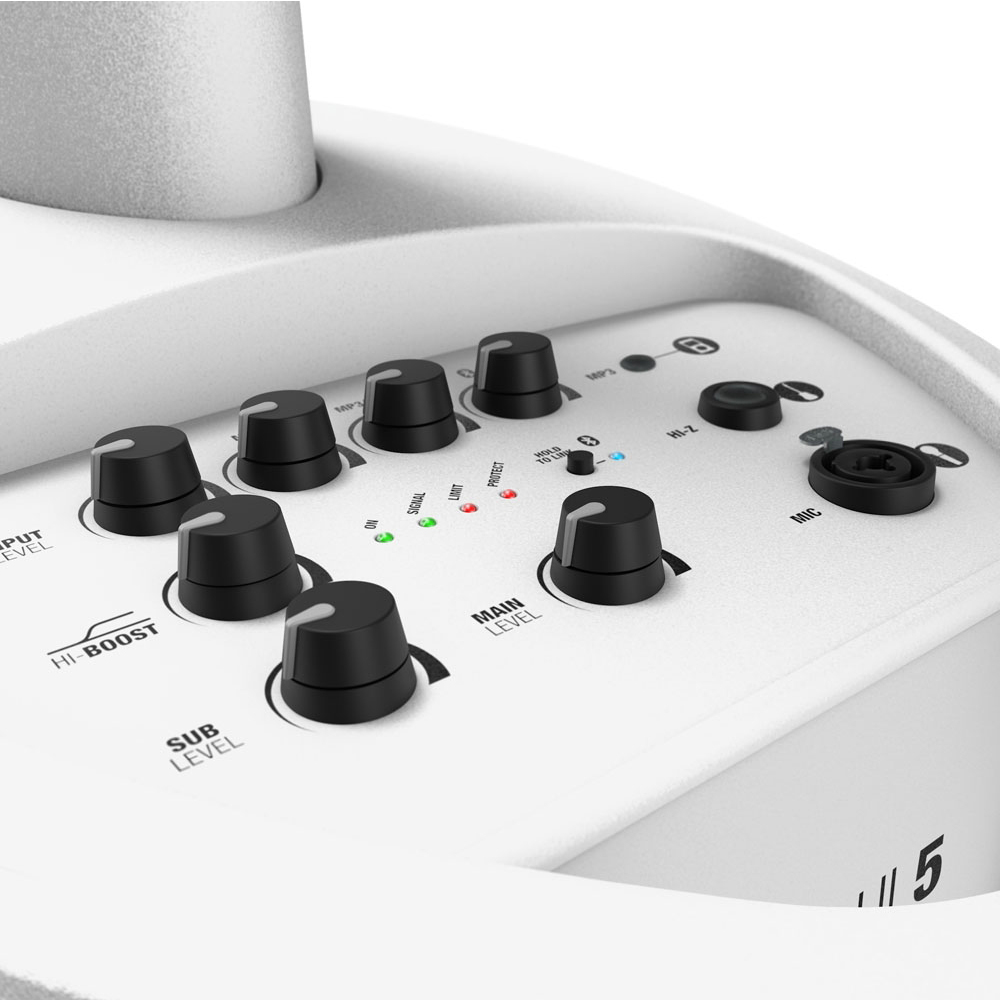

Controls Bluetooth switch , Hi-Z Level , Line Level , Main Level , Mono/stereo switch , MP3/Bluetooth Level , Power , sub level
Indicators limit , mono , on , protect (protection circuit engaged) , Setup , signal , stereo
Operating voltage 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic conversion)

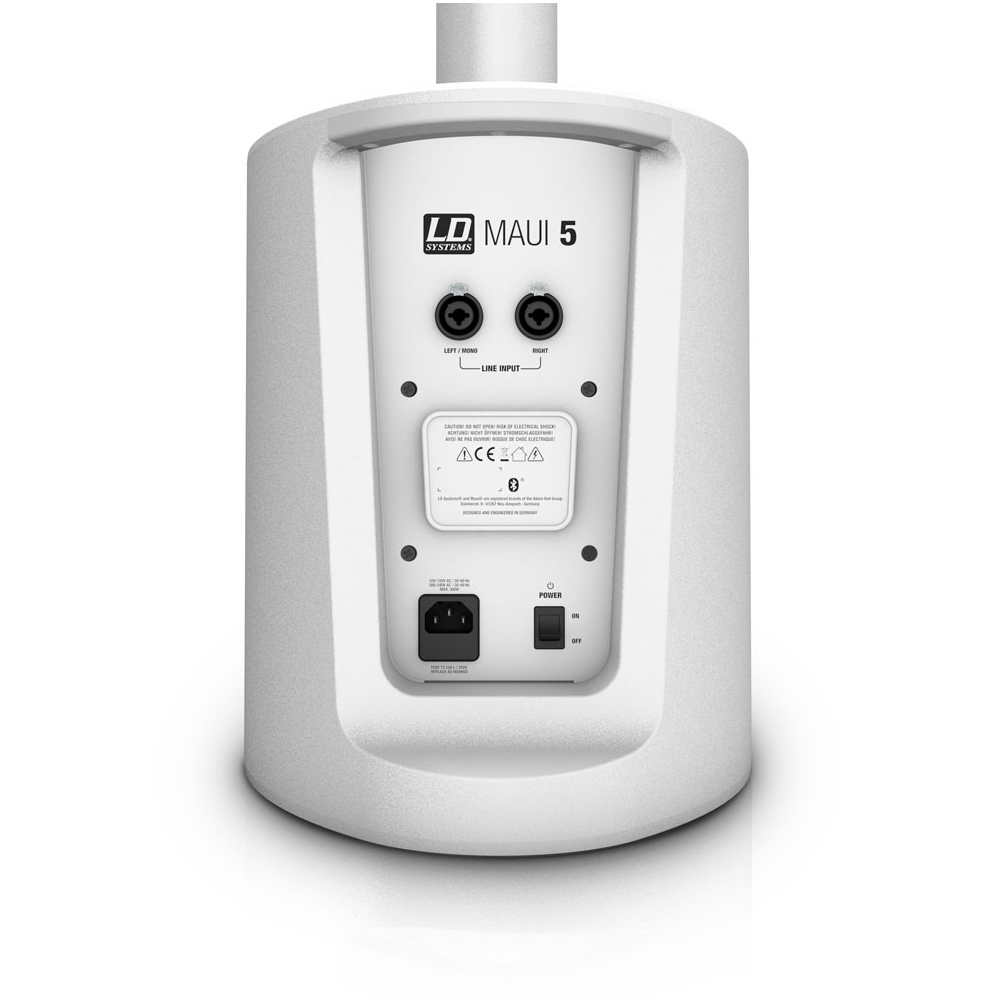

Line inputs 2 x stereo
Line input connectors  XLR/6.3 mm jack
Mic input 1 x XLR/6.3 mm jack
MP3 input 1 x 3.5 mm jack
Hi-Z input 1 x 6.3 mm Jack
Loudspeaker output 1
Speaker output connections Custom-made multipin
Bit depth AD/DA converter 24 bit
Internal sampling frequency 48 kHz
