Product Details

Product: Moog Minimoog Model D, Legendary Analogue Synthesizer

SKU: DDJ5084

Condition  Brand New
Warranty  1 Year
Delivery  Free Delivery

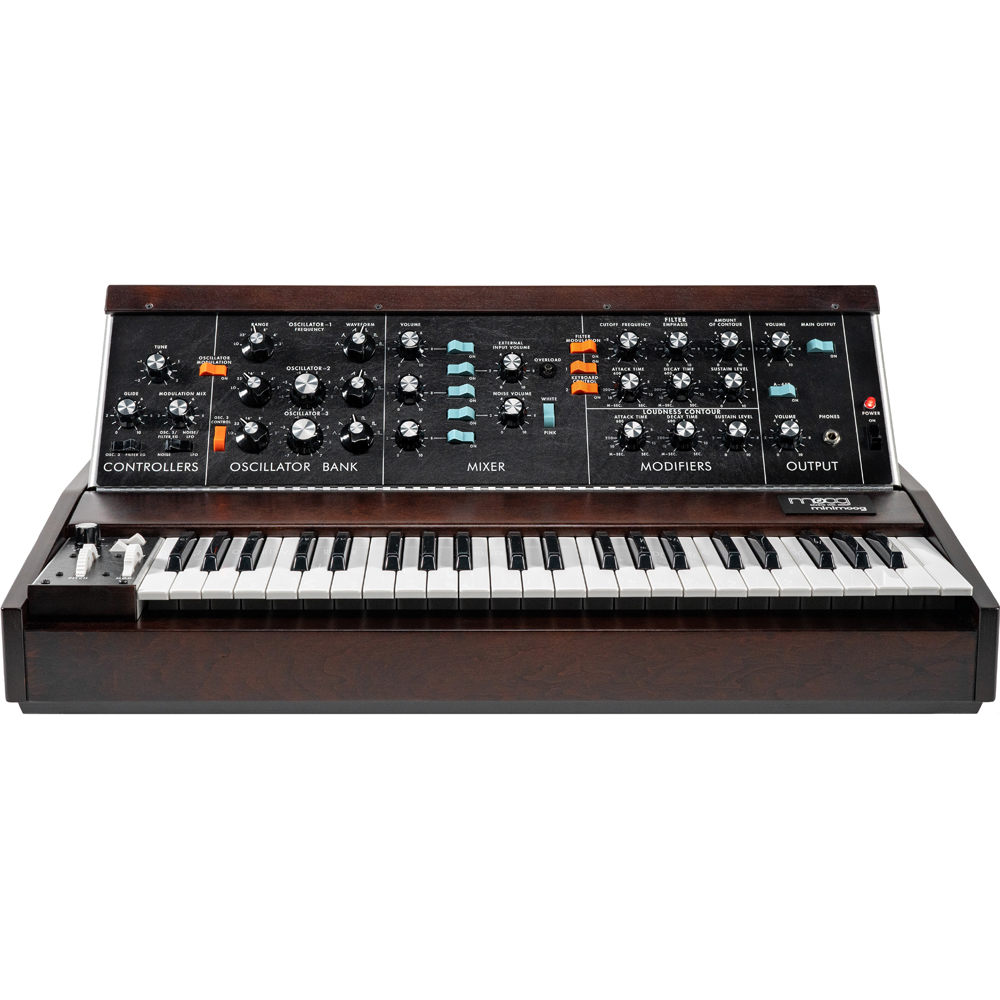

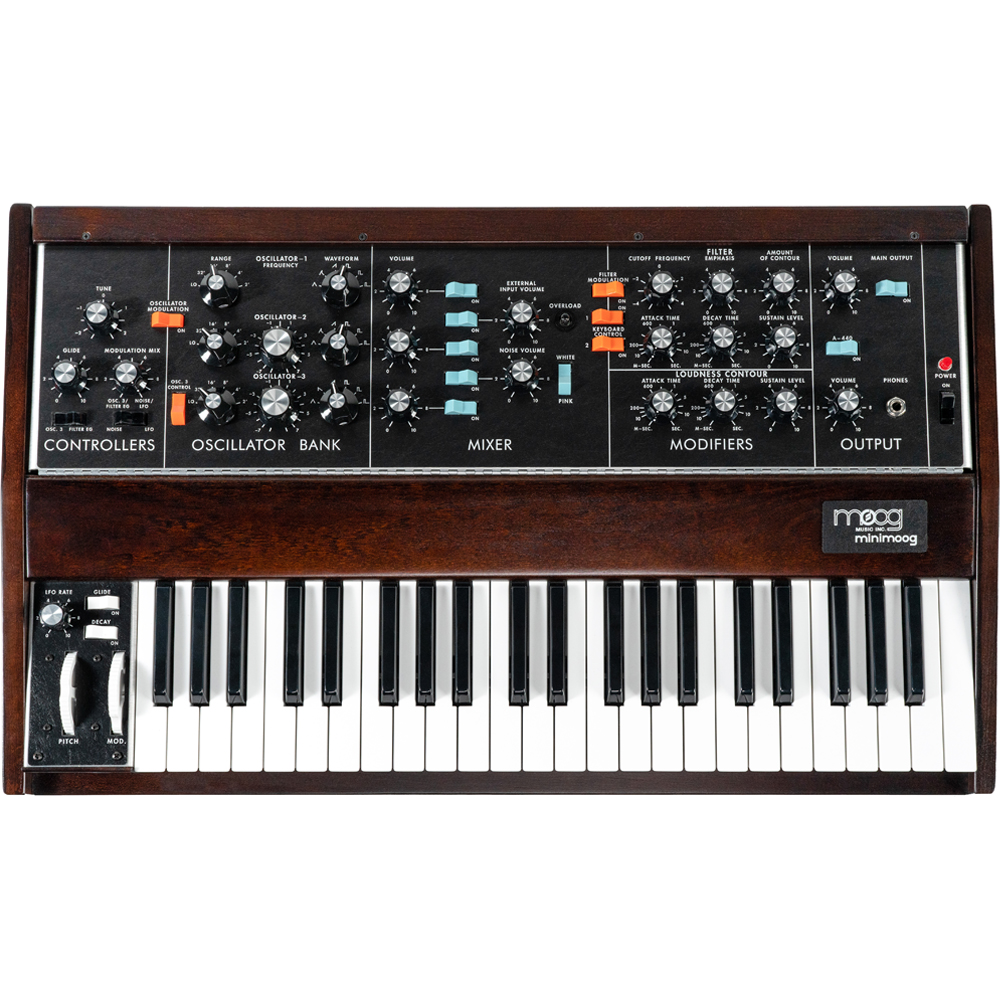

Moog Minimoog Model D, Analogue Synthesizer (2022 Re-Issue)

Originally released in 1970, Minimoog Model D was the world’s first portable synthesizer and served as the archetype for all electronic keyboards that followed. The all-analog instrument gained acclaim for combining the colossal sound of the 1960s Moog modular synthesizers with the accessibility of pre-wired modules—meaning that it could be played instantly and intuitively with no patch cables required. It was quickly embraced by a diverse roster of performers, with artists like Herbie Hancock, Kraftwerk, Rick Wakeman, Sun Ra, Piero Umiliani, Giorgio Moroder, Bernie Worrell, and Gary Numan all shaping unique sounds and forging new musical genres using the instrument.

More than a half-century since its invention, Minimoog Model D is back in production at the Moog factory in Asheville, North Carolina. An exceptional sonic tool and one of the most beloved and iconic synthesizers ever designed, it returns to the hands of synthesists of all kinds and serves as inspiration for the next generation of electronic musicians.

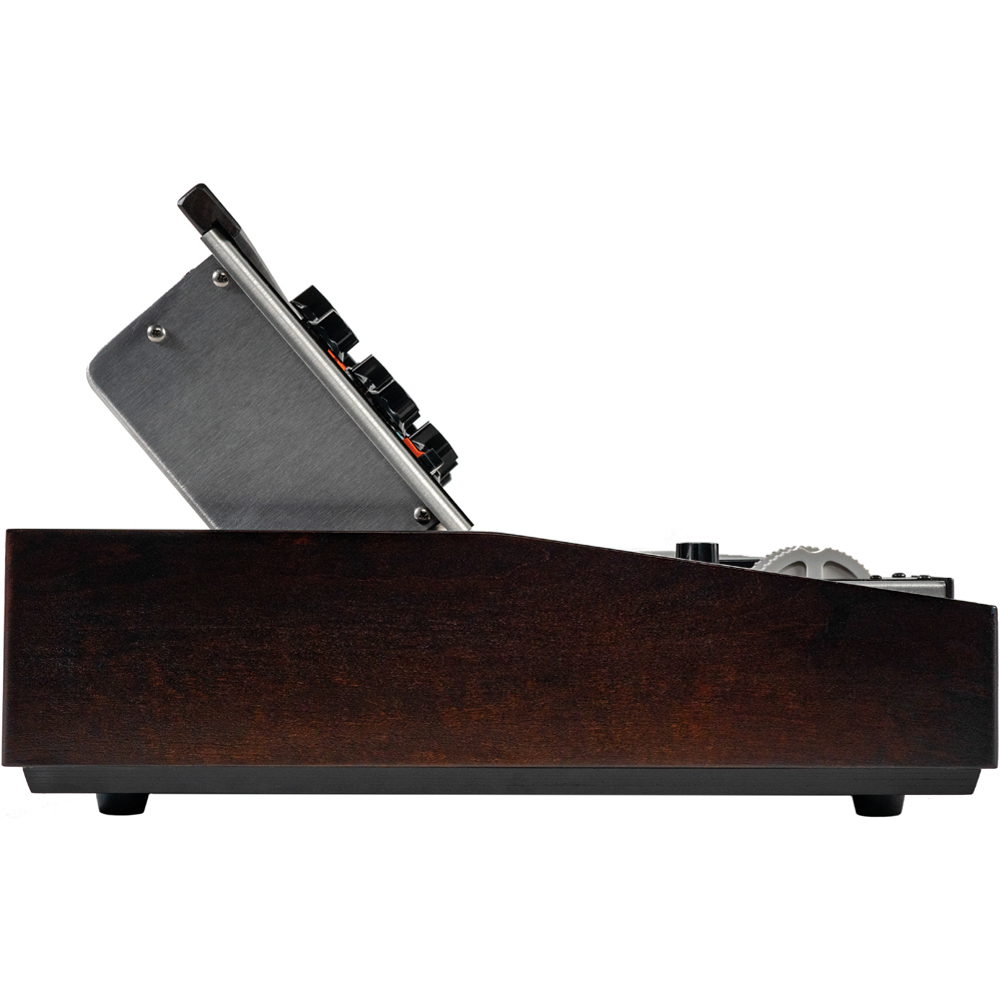

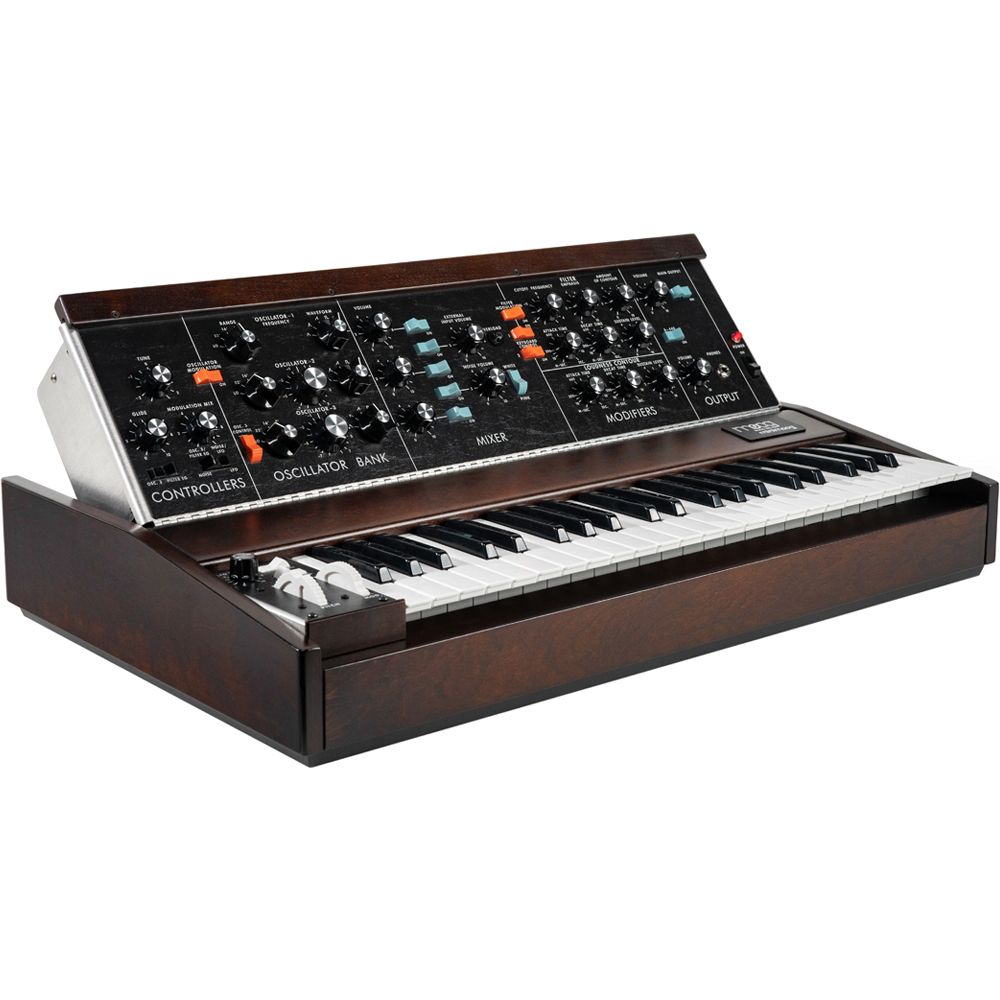

The three-oscillator, monophonic, analog synthesizer is securely housed in a locally sourced Appalachian cherry cabinet and hand-finished aluminum chassis. Sounding as vibrant and deep as ever, its legendary low-pass ladder filter, powerful oscillators, and rich saturating mixer retain the exact component placement and through-hole design of a 1970s-era Minimoog Model D.

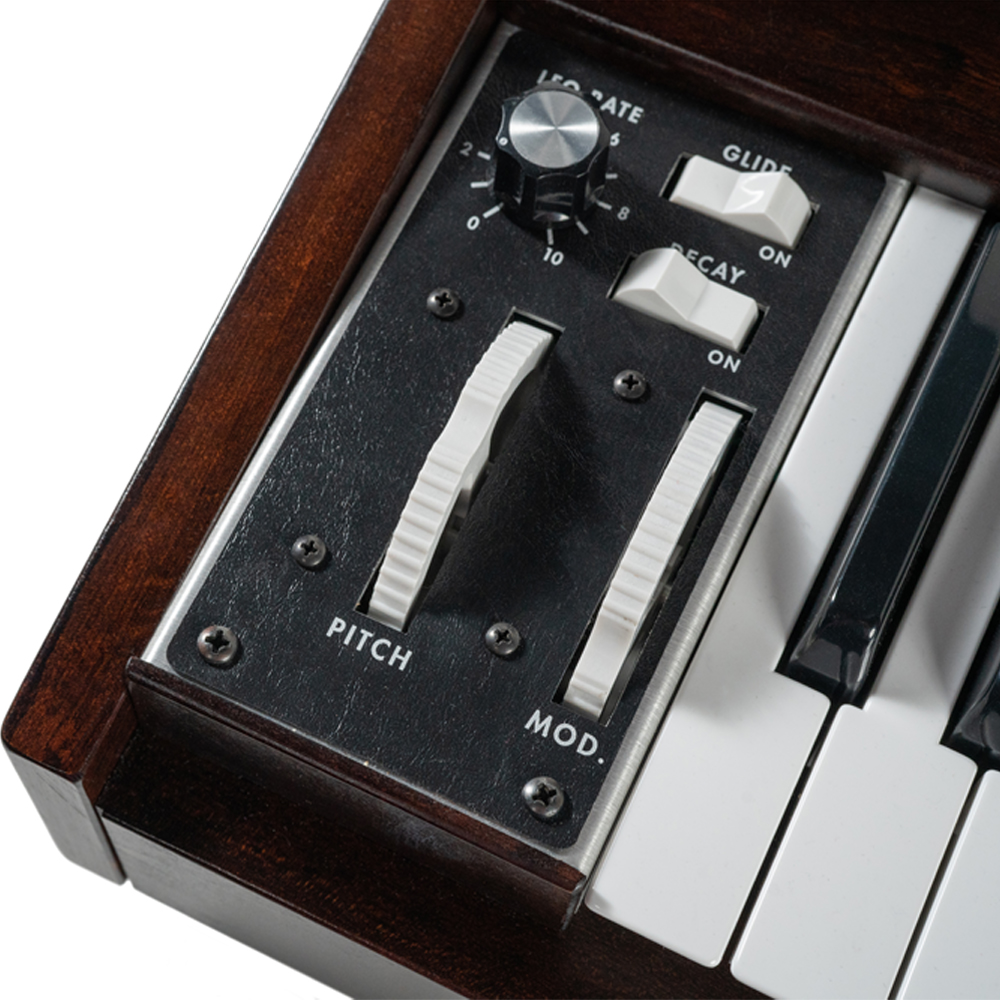

While no changes have been made to the original sound engine or audio signal path, the 2022 Minimoog Model D includes a series of popular functional modifications that expand this legendary instrument’s sonic capabilities. These modifications include a dedicated analog LFO with triangle and square waveshapes, a premium Fatar keybed with velocity and after pressure available via top panel CV jacks with onboard trimpots, MIDI integration, and a mixer feedback modification which allows the Minimoog Model D to overdrive and scream with the turn of a knob. And, for the first time in its history, the Minimoog Model D now features a spring-loaded pitch wheel with center deadband, allowing for improved playability and wild performance flourishes.

  • 2022 Reissue of the most iconic synth in history: the Minimoog Model D
  • A piece of music history that continues to inspire artists across styles and genres
  • Original discrete analog circuitry with player-appreciated factory upgrades
  • High-quality craftsmanship - designed and built to last a lifetime
  • Delivers the iconic presence and sound of a vintage Moog instrument
No. of Keys44
Keyboard RangeF0 to C4
Keyboard ActionSynthesizer (Spring)
Note Priority(Low, High, Last): User Selectable
Sound Sources3x Oscillators, Noise Generator and External Audio Input
Oscillator Frequency Range0.1 to 20 kHz (In Six Overlapping Ranges)
Oscillator Stability(short term) > 0.25 %
Oscillator WaveformsTriangle, Triangle-Sawtooth (Oscillator–1, Oscillator–2), Reverse Sawtooth (Oscillator–3), Sawtooth, Rectangle, Wide Pulse and Narrow Pulse.
Noise GeneratorWhite and Pink
LFO Rate0.05Hz to 200 Hz
LFO WaveformTriangle (knob down); Square (knob up)
External Modulation Input Range+10 millivolts to +2 volts
External Modulation Input Impedance1MEG Ohms
Filter TypeVoltage Controlled Low Pass (Ladder Filter)
Filter Frequency Range10 Hz to 20 kHz
Filter Slope24 dB per Octave
Contour Attack Time1 millisecond to 10 seconds
Contour Decay Time4 milliseconds to >35 seconds
Contour Sustain Level0 to 100% of Contour peak
Filter Contour Width0 to 4 Octaves
Voltage Controlled AmplifierLoudness Contour Dynamic Range 80 dB
External Audio Input Voltage+10 millivolts (min); +10 volt (max.)
External Audio Input Impedance1000K Ohms
High Audio OutputTypical Voltage: 0.5 volts / Maximum Voltage: 4.2 volts (peak-to-peak)
High Audio Output Nominal Impedance3K Ohms
Low Audio Output(30 dB below High level): Typical Voltage: 15 millivolts
Low Audio Output Nominal Impedance1K Ohms
Headphone Output VoltageMaximum 0.3 volts
Headphone Output Impedance8 Ohms
Glide Rate1 millisecond to 10 seconds
Pitch Bend Range(+/-) 7 semitones (minimum)

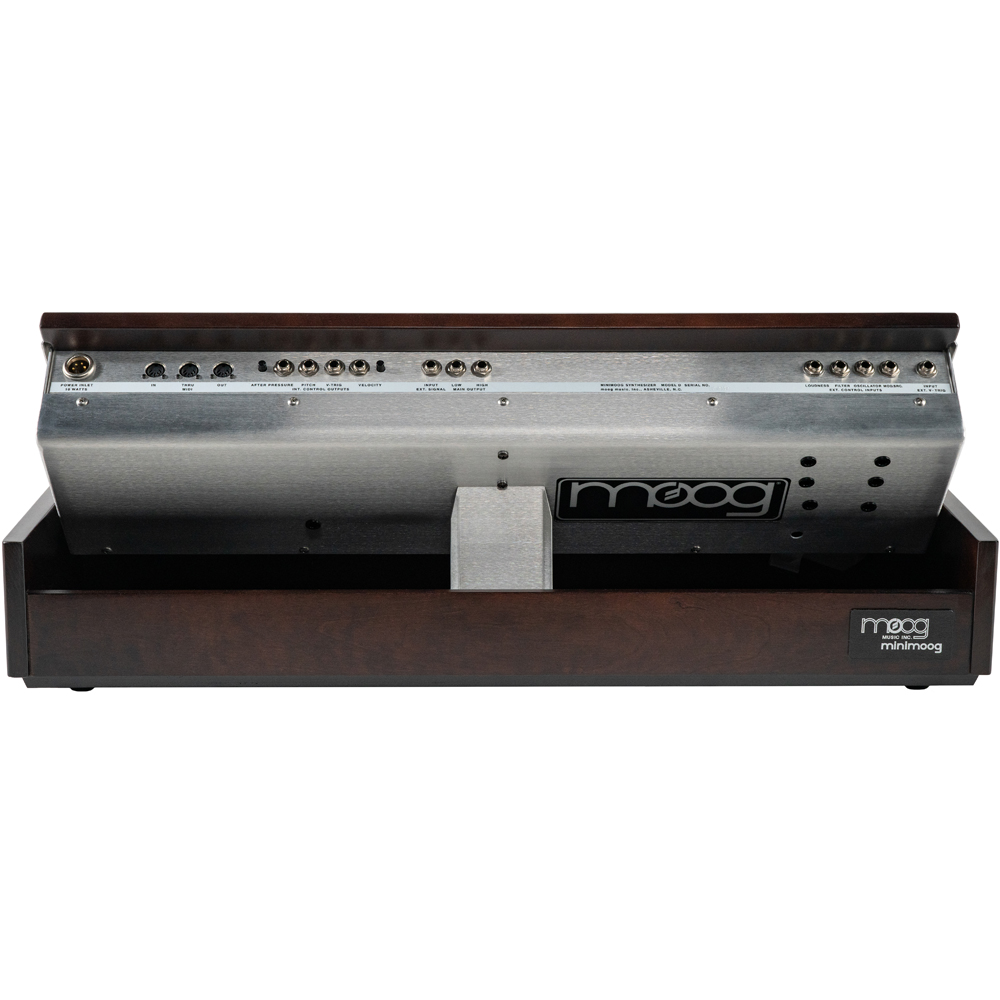

After Pressure CV Output (¼”TS)0 to +5 volts with user adjustable trimpot
Pitch CV Output (¼”TS)-3 volts to +7 volts (C=0 volts)
Gate Output (¼”TS)0 to +5 volts
Velocity Output (¼”TS)Selectable 0 to +5 volts or 0 to +10 volts with user adjustable trimpot.
Loudness Input (¼”TRS)0 to +5 volts; +5 volts = Unity Gain (Works with Moog EP-3 Expression Pedal)
Filter Cutoff Input (¼”TRS)1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
Oscillator Pitch Input (¼”TRS)1 volt per octave of change (Works with Moog EP-3 Expression Pedal)
Modulation Source Input (¼”TRS)Ring=Noise Send; Tip=Modulation Receive (This jack makes a normalled connection with no cable present.)
Trigger Input (¼:TS)+5 volt V-Trigger Activates both Contour Generators
Midi InputNote On & Note #
Midi OutputNote On, Note #; Velocity; Aftertouch, Modwheel, Pitch-bend
Midi ThruMirror of the MIDI In signal
External Power SupplySelf-switching; 100–240 volts; 50/60 Hz; <12 Watt nominal consumption. (Locking XLR-4 connector.)
Dimensions(with panel lowered): Width: 28.625” / 727 mm, Depth: 17.125” / 435 mm, Height: 5.75” / 146 mm.
Net Weight32 lbs. / 14.5 kg.
Storage Temperature5F to 140F (2C to 60C)
Nominal Operating Temperature10 – 35 C (50 – 95 F)
Operating Temperature10 – 50 C (50 – 122 F)
