Alto Truemix 500, 5-Channel Mixer with USB

SKU: DDJ5320

Alto Truemix 500, 5-Channel Mixer with USB
Alto Truemix 500, 5-Channel Mixer with USB
Alto Truemix 500, 5-Channel Mixer with USB
Watch the video
£64.00 £69.99
Availability:
Only 2 available, order now!

Order in the next for delivery on using our express service

Novuna logo

Finance available on orders over £556

Klarna badge >

Add to your purchase:

Key features:

  • USB I/O for playback and stereo recording
  • 1/4” Main, Tape, and Headphone outputs
  • Mic input channel with 18v phantom power
  • Two-band EQ on all channels
  • 2-track inputs w/ assignable routing
  • Brand new
  • 1 Year Warranty
  • Fast delivery
Description
Features
Specifications
Delivery
Alto Professional logo > More from this brand

How can we help?

Speak to an expert, call us on 01274 394 730

Speak to an expert

Call us on (01274) 394 730
Seen a better price? Ask for a price match

Seen a better price?

> Ask for a price match
Trustpilot
We're rated Excellent! Check out our reviews
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

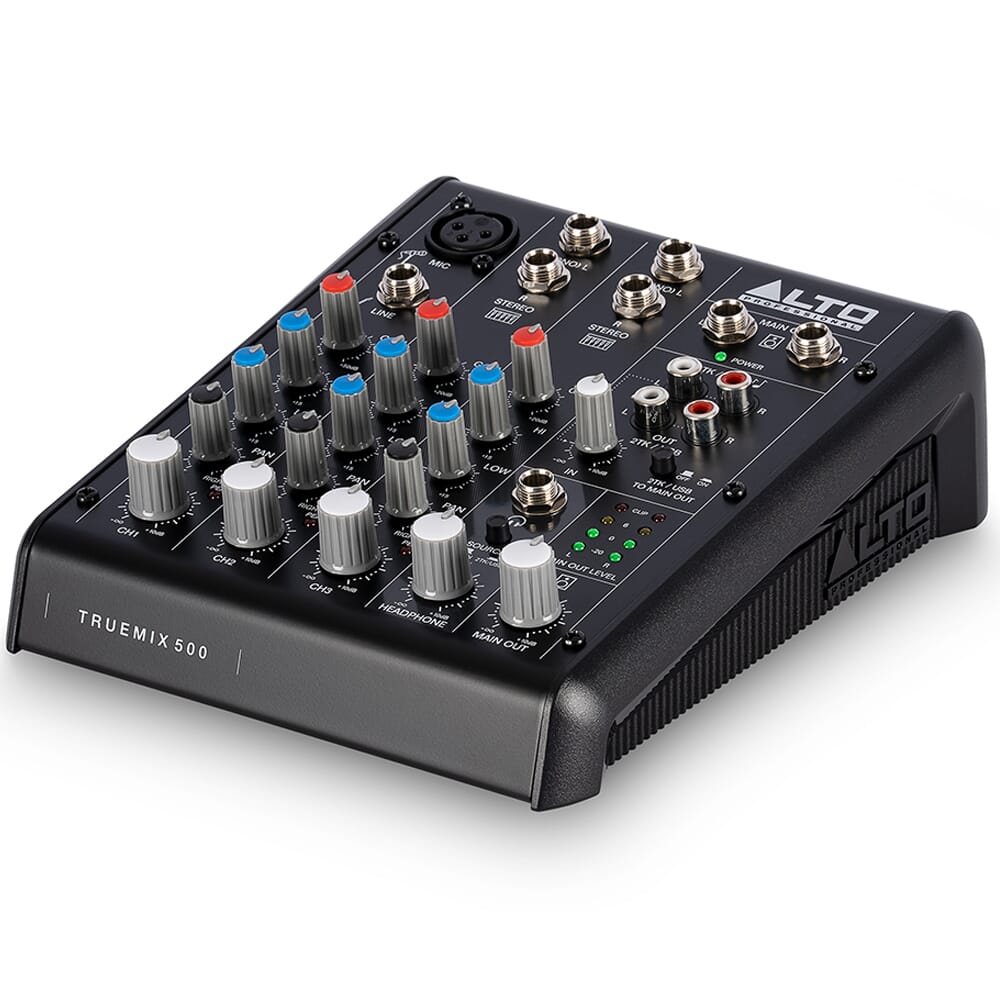

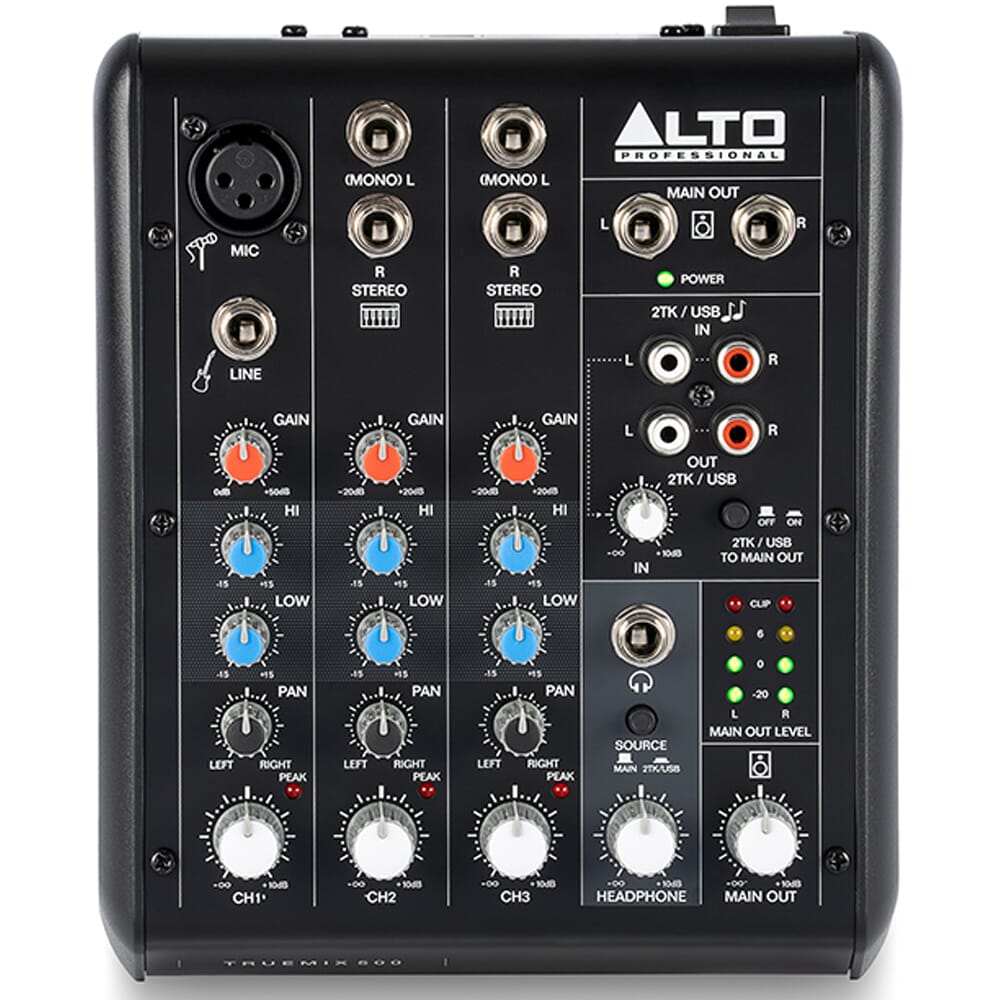

Alto Professional 5-Channel Mixing Desk

The Alto Professional TrueMix 500 is a portable mixer with a built-in stereo USB audio interface that delivers all the essential features you need for home recording, livestreaming, podcasting, or performing. There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The Mic Input Channel offers an XLR input that’s great for connecting a dynamic mic. This channel also has a balanced ¼” line input for connecting instruments and other line-level signals. There are also two Stereo Input Channels, each with dual balanced ¼” TRS inputs. These inputs are perfect for your line level audio sources. All channels feature a two-band EQ with color coded knobs that make it easy to dial in your perfect sound when operating in low-light situations. Connecting the TrueMix 500 to your computer is also lightning fast, with plug and play connectivity on Windows and macOS. The TrueMix 500 is your perfect companion for no-nonsense audio mixing and recording on the go.
  • USB I/O for audio playback and stereo recording
  • 1/4” Main, Tape, and Headphone outputs
  • Mic input channel with 18v phantom power and balanced line input
  • Two stereo input channels with balanced 1/4” TRS jacks
  • Two-band EQ on all channels
  • 2-track inputs w/ assignable routing: Main Mix or Headphone Out
  • Extra knob caps included in the box for added customization
Frequency Response
  • All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion)
  • All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range
  • Mic inputs (Channel 1): 0 – 44 dB
  • Line input (Channel 1): 12 – 30 dBu
  • Line inputs (Channels 2/3): 0 dBu
Max Voltage Gain
  • 74 dB (Mic Input to Main Out and 2TK Output)
  • 80 dB (Mic Input to Phones Output)
  • 30 dB (Line Input to Main Out)
SNR (Signal-to-Noise ratio)
  • All inputs: > 110 dBu
Impedance
  • Mic inputs: 3.9 kΩ
  • All other inputs: > 10 kΩ
  • 2TK output: 1 kΩ
  • All other outputs: 120 Ω
Crosstalk
  • Adjacent inputs: < -80 dB @ 1 kHz
  • Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channel 1, panned hard left or right)
Equalization
  • High: ±15 dB @ 12 kHz
  • Low: ±15 dB @ 80 Hz

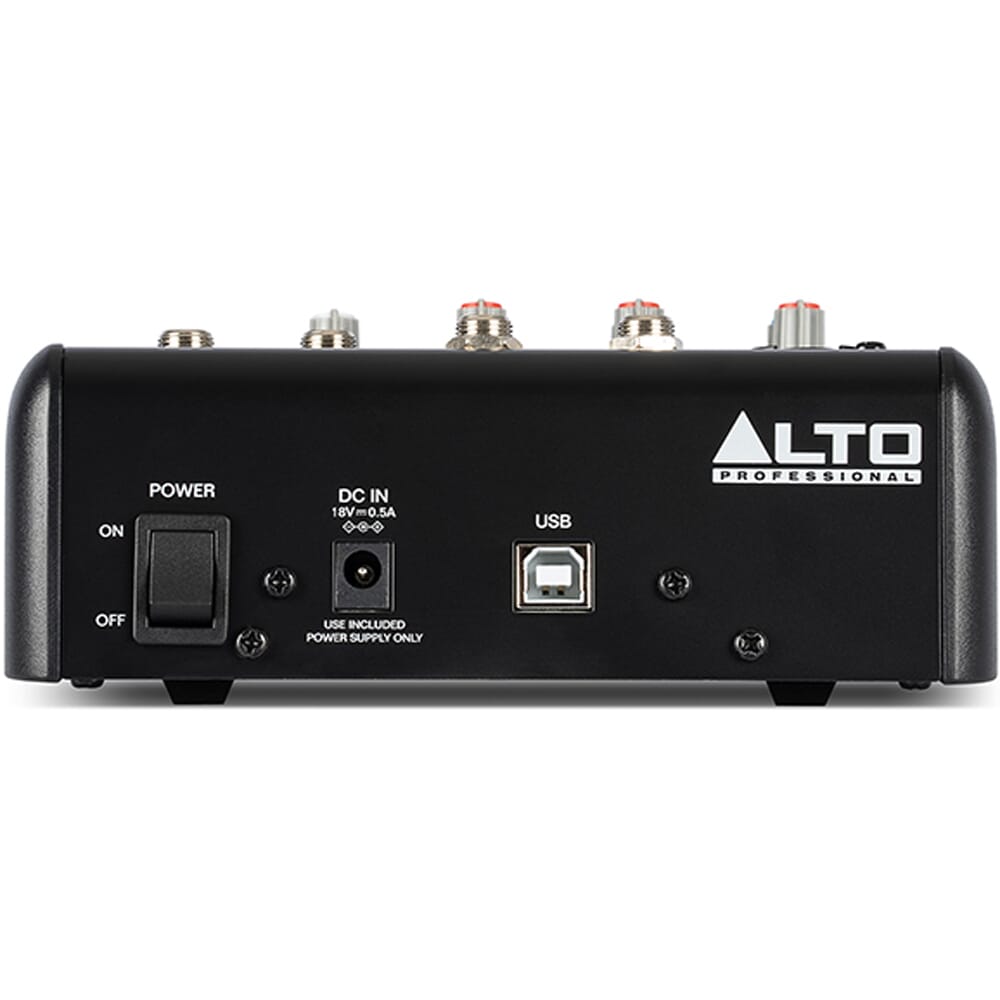

Connectors
  • (2) 1/4” (6.35 mm) TRS outputs
  • (2) 1/4” (6.35 mm) TRS stereo L/R inputs
  • (1) 1/4" (6.35 mm) TRS headphone output
  • (1) 1/4" (6.35 mm) TRS mono input
  • (1) XLR input
  • (1) Stereo RCA L/R input
  • (1) Stereo RCA L/R output
  • (1) USB type-B input
  • (1) DC power input
Controls
  • (1) Power switch
  • (6) Volume control knobs (1 per input and output)
  • (3) Gain control knobs (1 per channel)
  • (3) EQ Hi control knobs (1 per channel)
  • (3) EQ Low control knobs (1 per channel)
  • (3) Stereo pan control Knobs (1 per channel)
  • (2) Locking switch buttons
Indicators
  • (1) Power LED
  • (3) Peak LEDs
  • (8) Main Out meter LEDs
Main Mix
  • Main output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output
  • 2TK output: (2) unbalanced RCA, 0 dBu max output
  • Headphone output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω
Power
  • Connection: DC
  • Voltage: 18V, 500 mA
  • Consumption: 9 W
Dimensions (width x depth x height)
  • 6.3" x 7.6" x 2.6"
  • 159.5 mm x 193 mm x 66 mm
Weight
  • 2.0 lbs.
  • 0.9 kg
