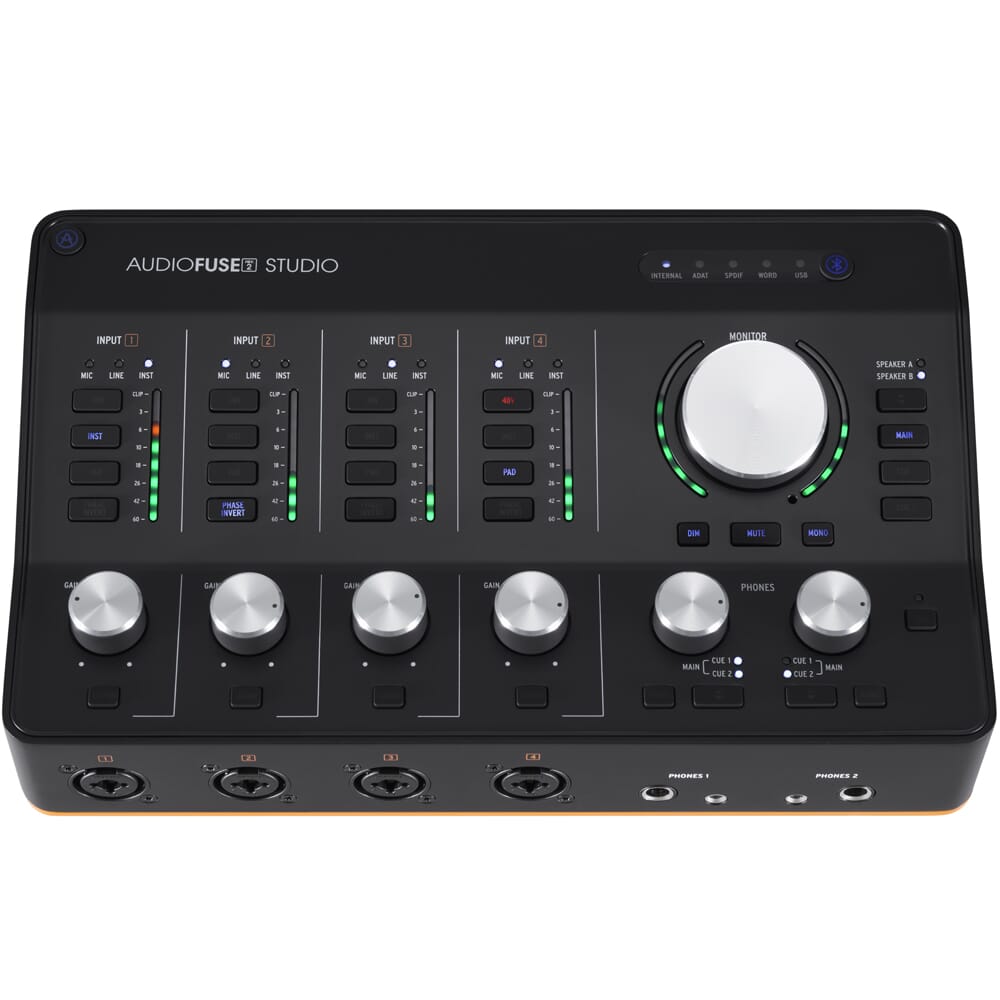

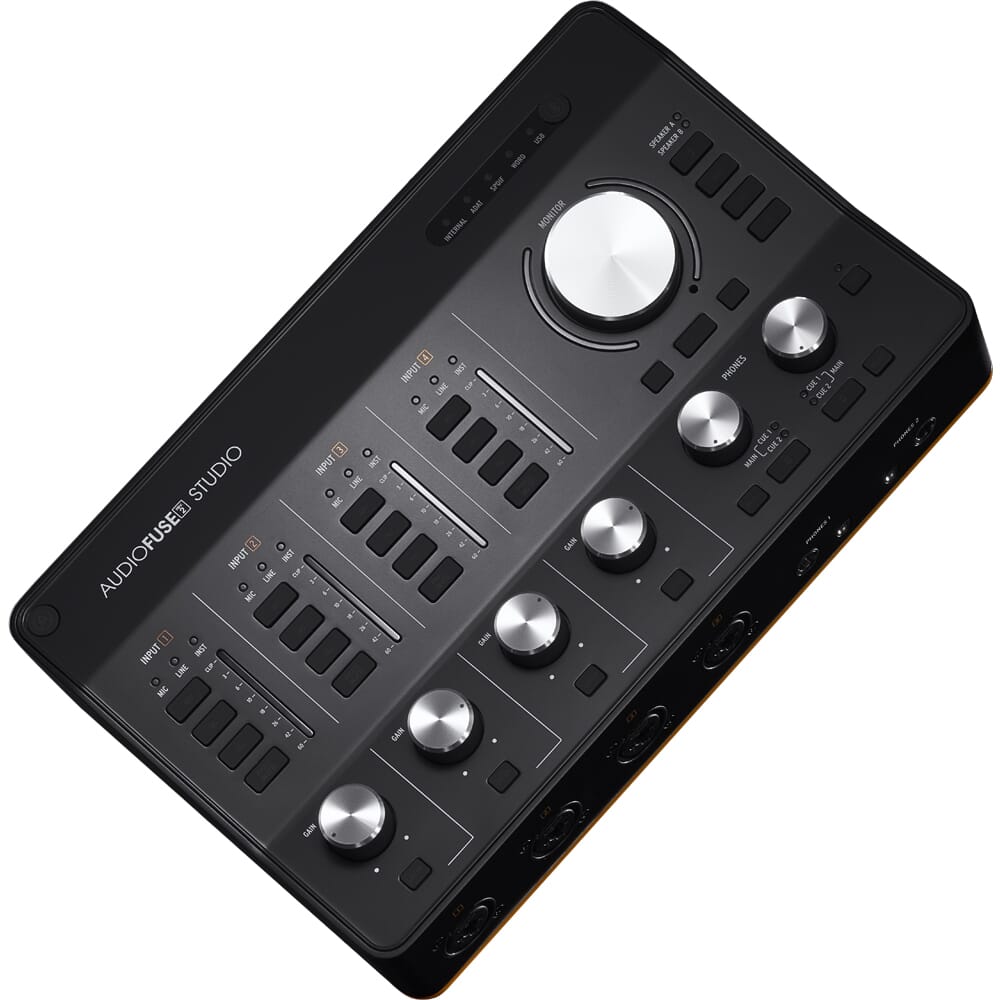

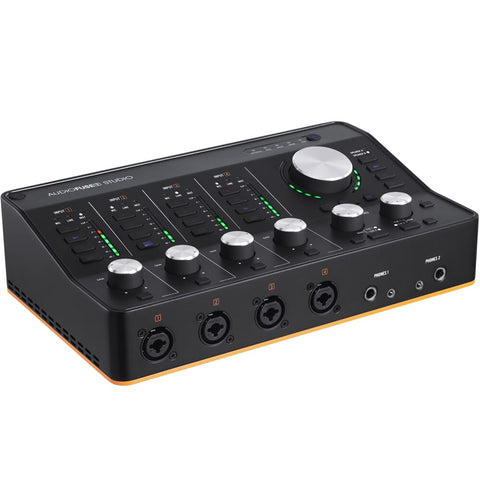

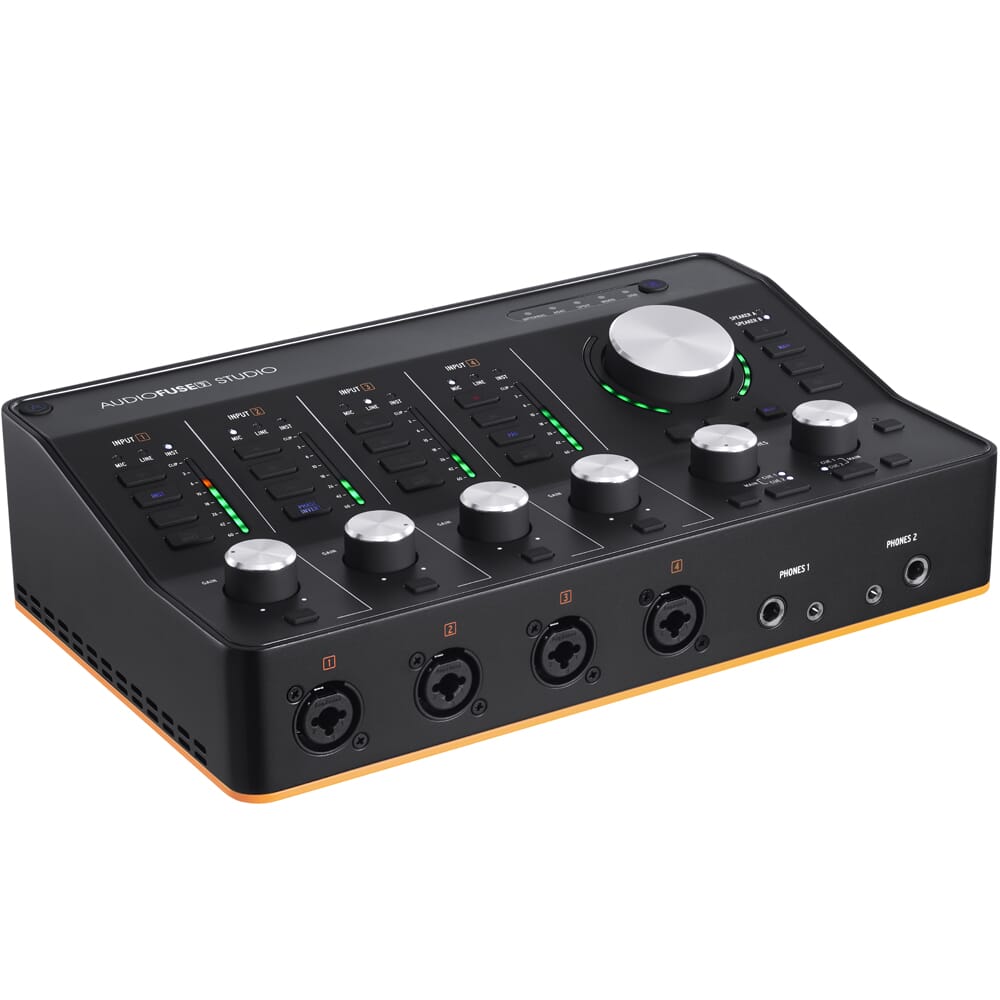

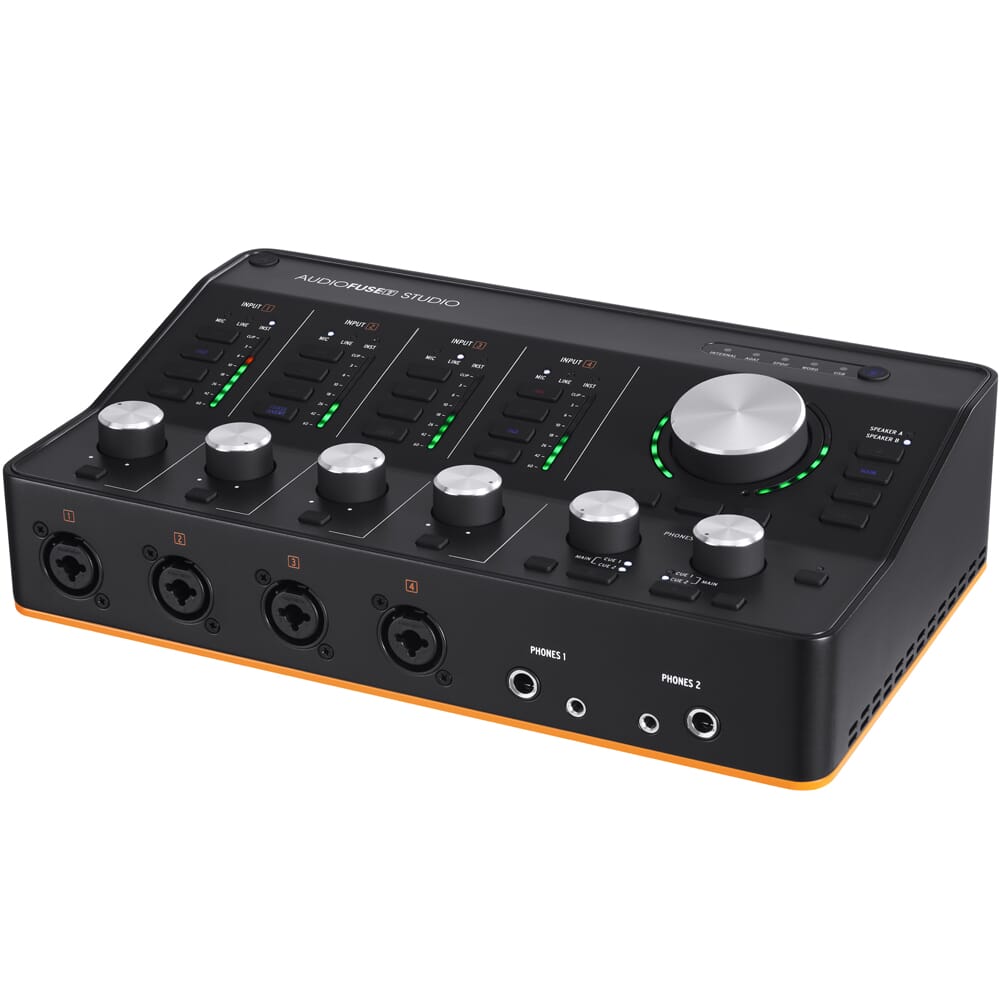

Arturia AudioFuse Studio Rev2 Professional USB-C Audio Interface

The Arturia AudioFuse Studio Rev2 is a professional desktop USB-C audio interface designed to become the central hub of a recording, production and mixing setup. Combining four high-performance DiscretePRO preamps with eight analogue inputs, 24-bit/192kHz conversion, extensive digital connectivity, advanced monitor control and an upgraded Bluetooth receiver, it provides the flexibility required for everything from home studios to professional recording environments.

AudioFuse Studio Rev2 builds on Arturia's all-in-one studio interface with optimised preamps and updated Bluetooth connectivity. Whether you're recording microphones and instruments, keeping hardware synths permanently connected, sampling vinyl, reamping guitars or switching between multiple monitor systems, its extensive I/O allows a complete studio to be managed from one compact desktop interface.

Why choose the Arturia AudioFuse Studio Rev2?

• Four DiscretePRO preamps with up to 72dB gain and ultra-low -129dBu EIN
• Eight analogue inputs with dedicated phono connectivity for sampling vinyl
• Latest-generation 24-bit/192kHz AD/DA conversion
• ADAT, S/PDIF, Word Clock, MIDI, USB-C and upgraded Bluetooth connectivity
• Advanced monitoring with two speaker sets and dual independent headphone outputs

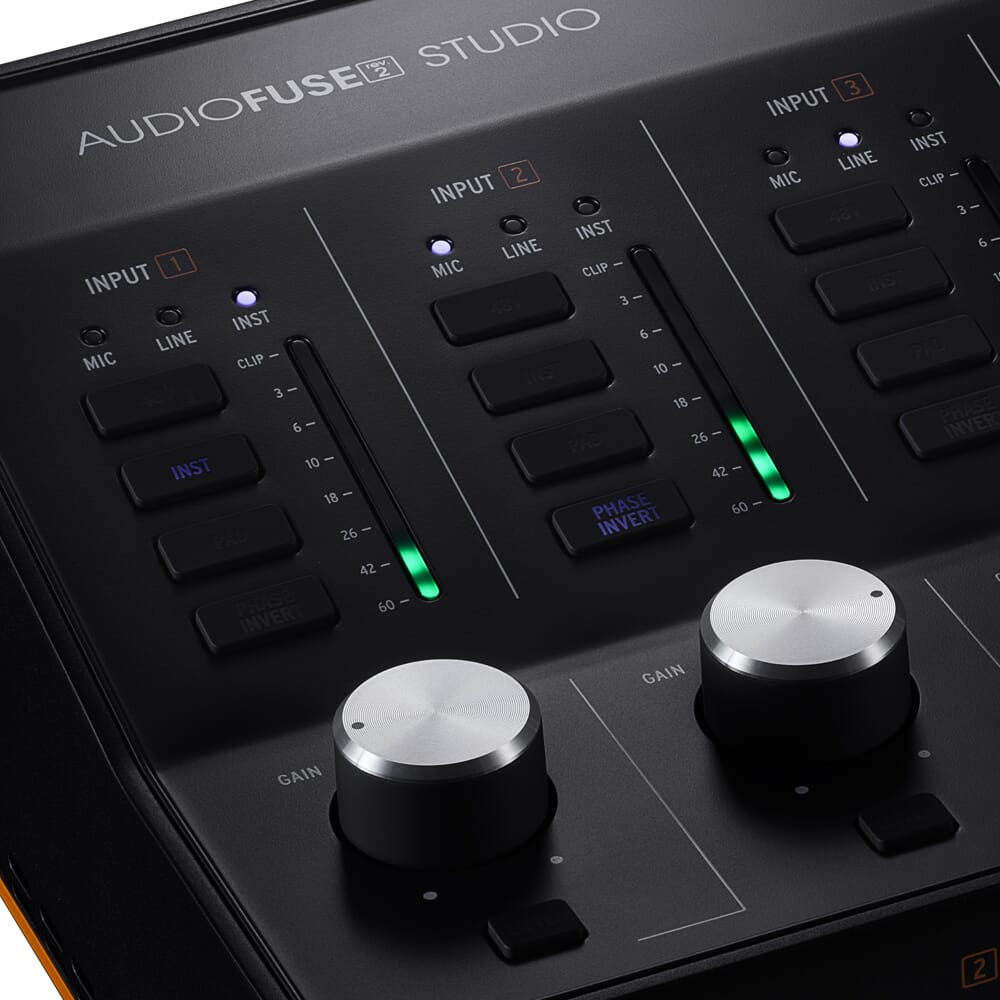

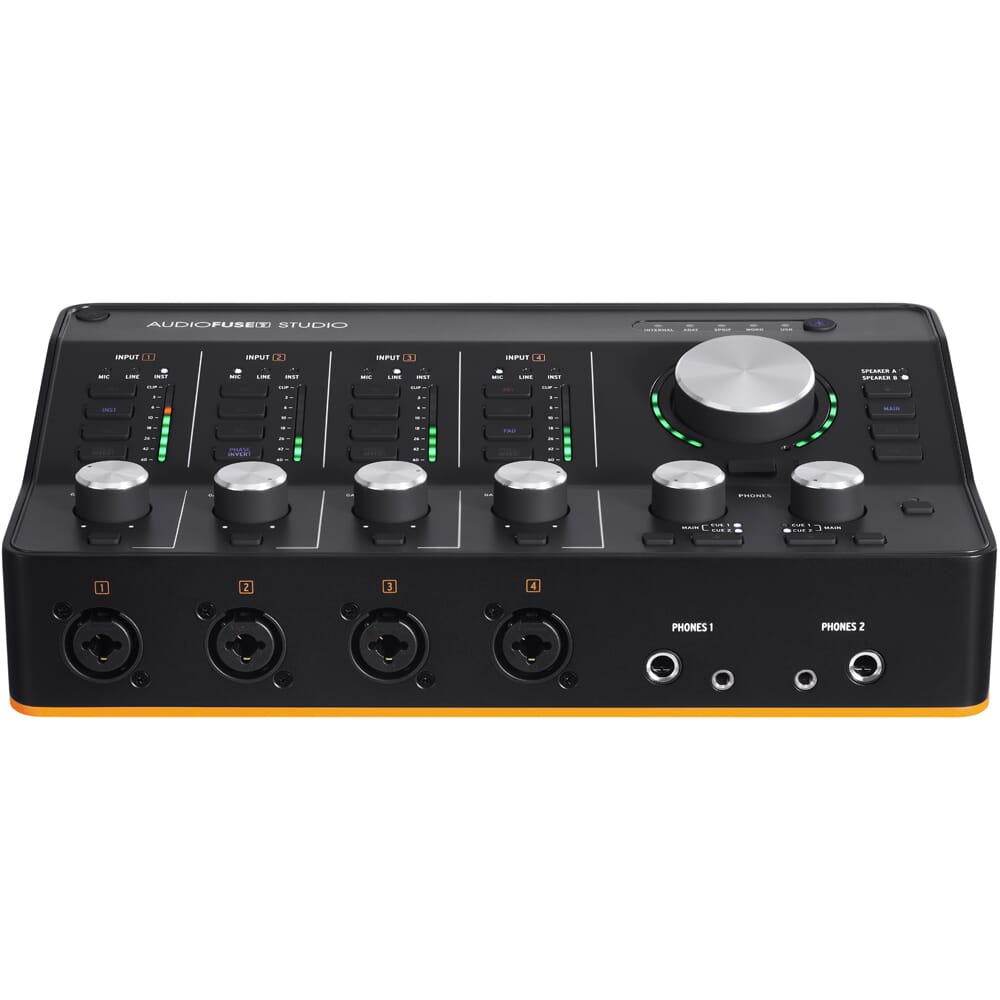

Four DiscretePRO preamps

AudioFuse Studio Rev2 features four DiscretePRO microphone preamps designed for transparent, detailed recording. With an Equivalent Input Noise of just -129dBu, 119dB dynamic range and up to 72dB of gain, the preamps provide the performance required for everything from condenser and dynamic microphones to lower-output ribbon microphones.

Each of the four channels provides dedicated hands-on controls and an analogue insert point, allowing external compressors, EQs and other processors to be integrated directly into the recording signal path.

Eight analogue inputs for a complete studio setup

Four mic, line and instrument inputs are joined by four additional line inputs on the rear panel, providing eight analogue inputs in total. This makes it possible to leave synthesizers, drum machines and other studio equipment permanently connected instead of continually repatching equipment between recording sessions.

Inputs 5 and 6 can also accommodate a turntable through the integrated RIAA phono preamp, providing a straightforward way to listen to, record and sample vinyl directly into your production setup.

24-bit/192kHz conversion

Latest-generation 24-bit AD/DA converters operating at up to 192kHz maintain the quality of the analogue signal throughout recording and playback. Combined with the transparent analogue signal path and DiscretePRO preamps, AudioFuse Studio Rev2 is designed to capture recordings accurately without unnecessarily colouring the original source.

Bluetooth audio recording

The updated Bluetooth receiver supports AAC, aptX, aptX HD and aptX Low Latency codecs, allowing compatible smartphones and other Bluetooth devices to stream directly into AudioFuse Studio Rev2.

Bluetooth audio can also be recorded directly into your computer, providing a convenient way to capture reference tracks, samples and other audio from compatible wireless sources.

Built-in guitar reamping

Dedicated Aux instrument-level outputs make guitar reamping straightforward. Record a clean guitar signal first, then send it back through an amplifier or compatible effects setup later, allowing different amp tones and processing chains to be tested without having to record the original performance again.

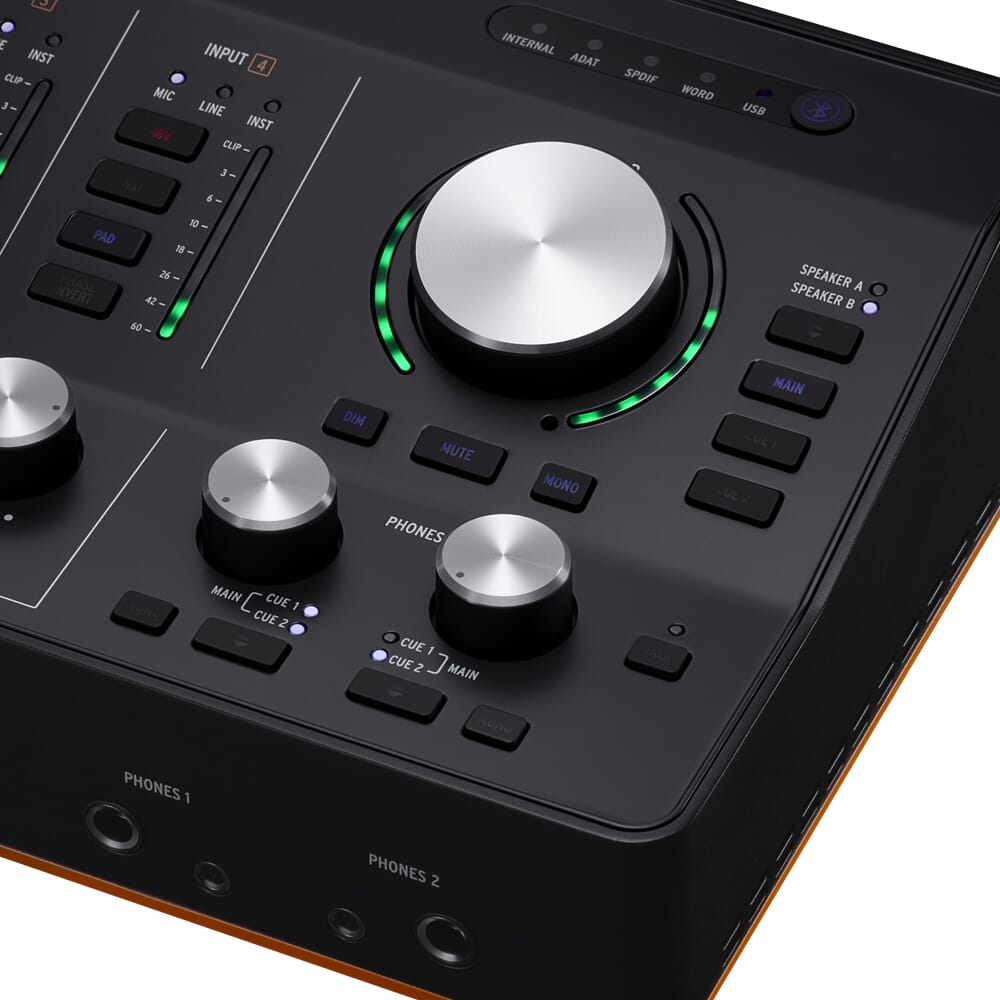

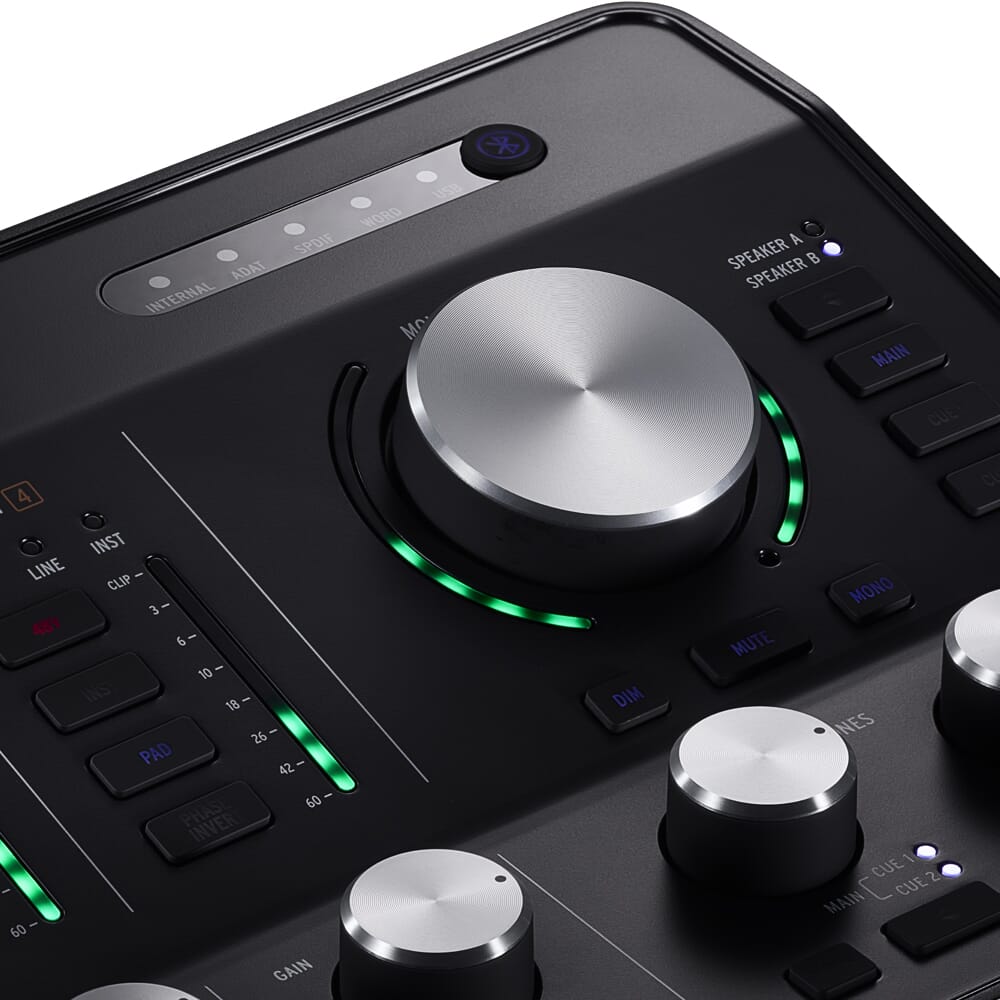

Professional monitor control

AudioFuse Studio Rev2 is designed to handle monitoring as well as recording. Two pairs of TRS outputs and digital S/PDIF connectivity allow two speaker systems to be connected, with integrated switching making it easy to compare a mix across different monitors.

Two independent headphone channels are also provided, each with its own source selection, controls and metering. This provides additional flexibility when recording performers or working with multiple monitoring mixes.

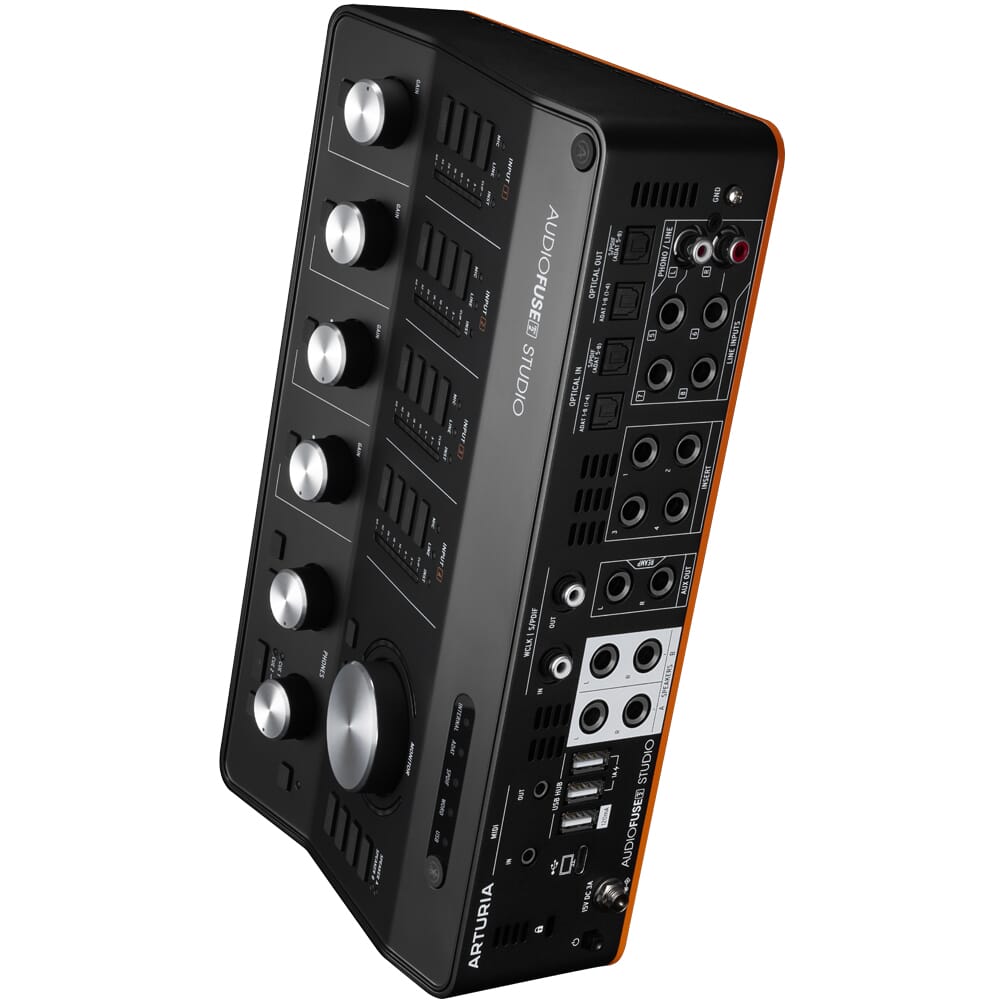

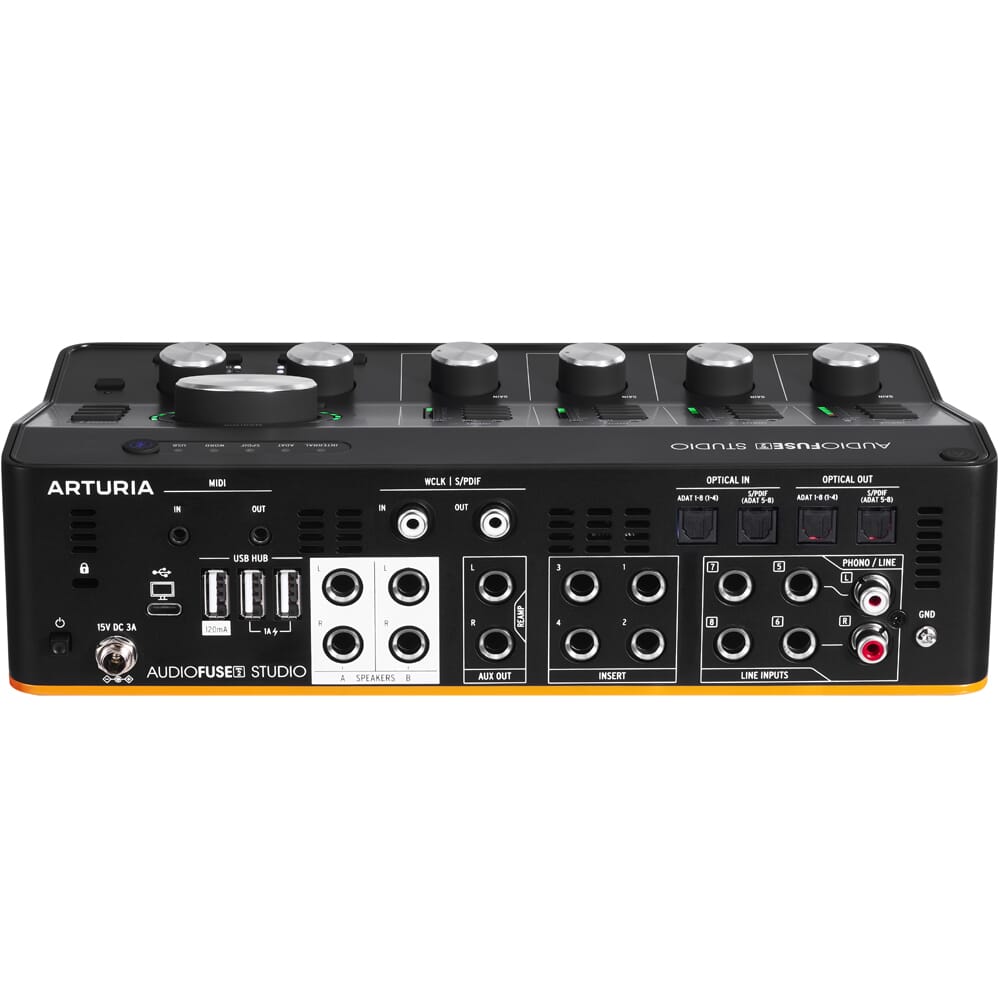

Extensive digital connectivity

Alongside its analogue connections, AudioFuse Studio Rev2 provides ADAT, S/PDIF, Word Clock, MIDI and USB-C connectivity for integration with a wide range of studio equipment. ADAT allows up to eight additional channels of audio at 96kHz to be sent or received, providing room to expand the system with compatible external preamps and converters.

Four analogue inserts, four line outputs and two Aux/reamping outputs provide further flexibility when incorporating external processors, amplifiers and other hardware into your studio.

Integrated USB hub

A built-in multi-port USB hub helps expand the connectivity available from your computer, allowing compatible controllers, storage devices and other USB equipment to be connected through AudioFuse Studio Rev2. This is particularly useful for laptop-based studios where the number of available USB connections may be limited.

AudioFuse Creative Suite included

AudioFuse Studio Rev2 also includes the AudioFuse Creative Suite, providing a collection of software effects and virtual instruments for recording, production, mixing and mastering. The bundle includes processing drawn from Arturia's acclaimed FX Collection, covering tools such as preamps, compressors, reverbs, delays and modulation effects alongside virtual instruments.

Ideal for

• Professional and home recording studios
• Producers using multiple hardware synthesizers and instruments
• Recording vocals, guitars, acoustic instruments and bands
• Studios requiring multiple monitor and headphone mixes
• Guitarists wanting integrated reamping facilities
• Producers recording or sampling vinyl
• Studios requiring ADAT, S/PDIF, MIDI and Word Clock connectivity
