Key features:
- Dual 8-voice engines with 16-voice polyphony, splits, layers, and separate outputs
- 73-note Polytouch® keybed with full polyphonic aftertouch and 4-octave ribbon controller
- Deep synthesis engine with 3 wavemorphing oscillators, Mutants, dual filters, and 5 LFOs/5 envelopes
- Massive modulation options with 32-slot matrix, CV/MIDI/USB, and 8-macro control system
- Multi-mode operation with independent effects chains, arpeggiators, patches, and performance controls
- Brand new
- 1 Year Warranty
- Free delivery
> More from this brand
How can we help?
Speak to an expert
Call us on (01274) 394 730
Seen a better price?
> Ask for a price matchDescription

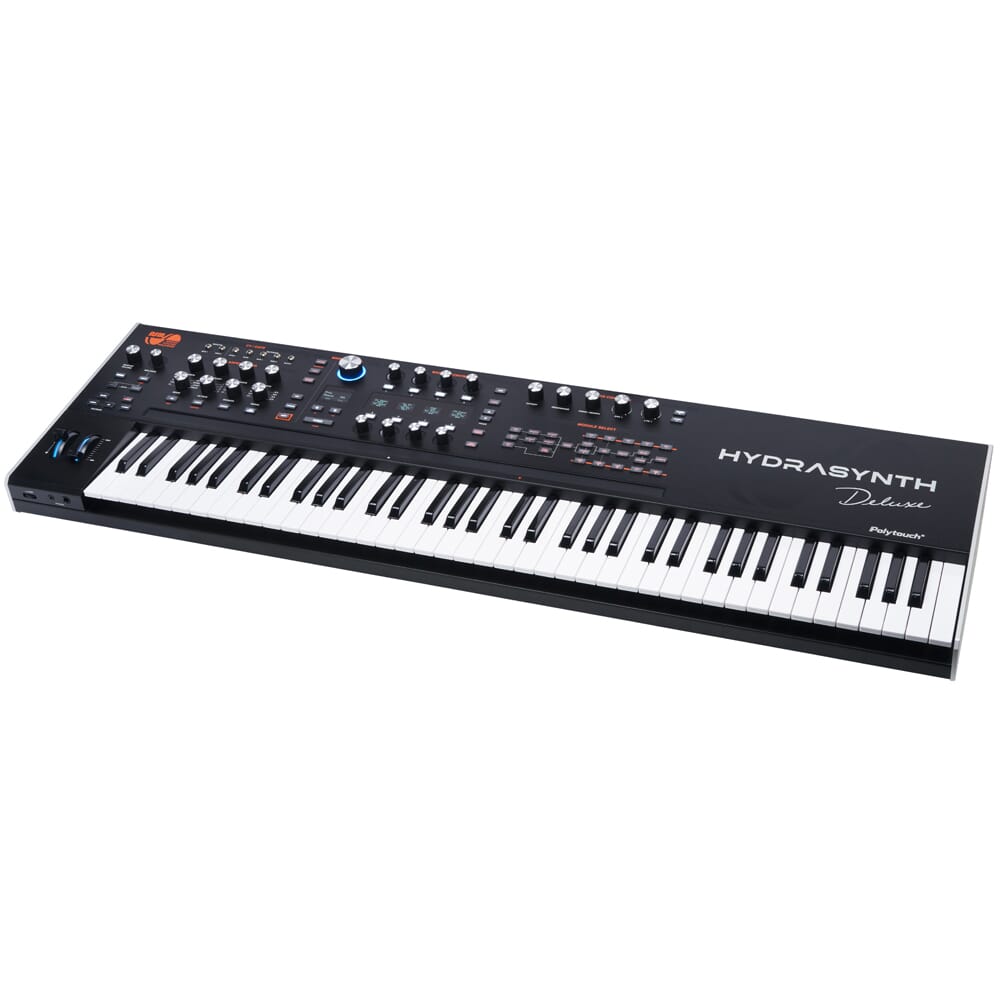

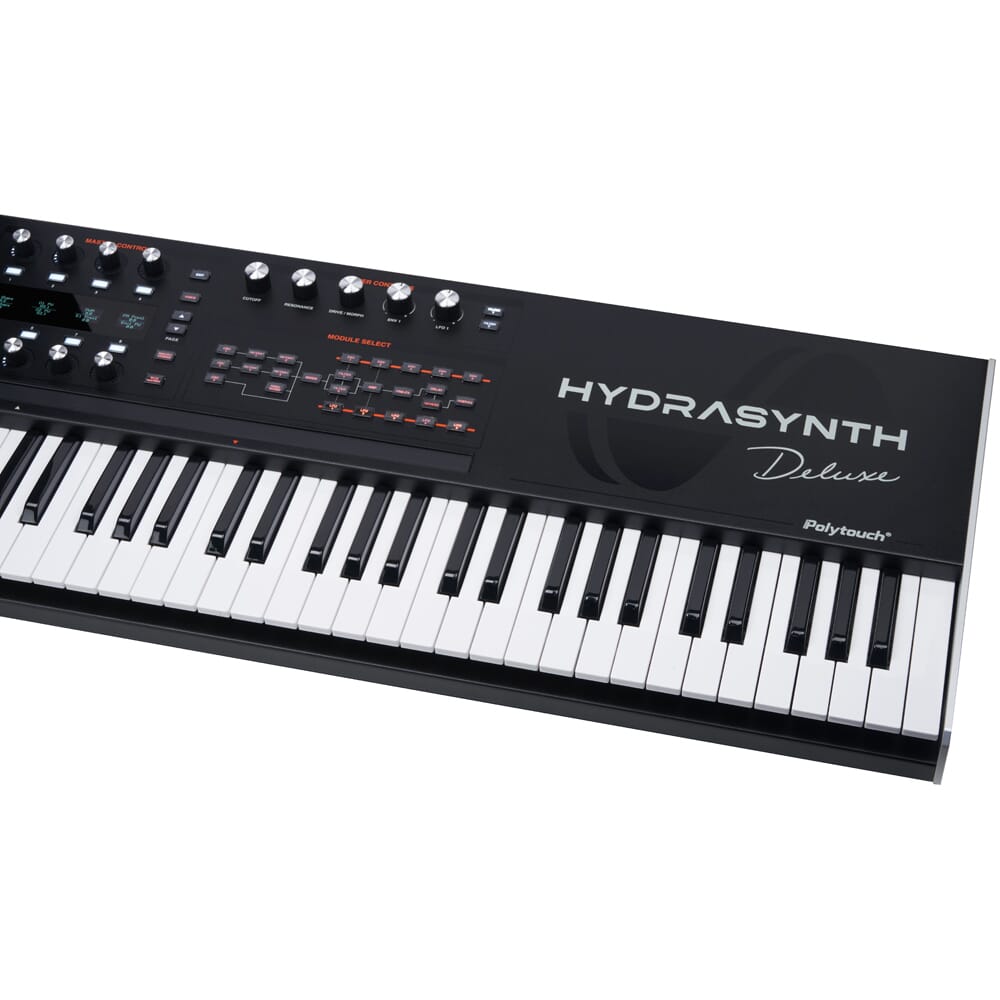

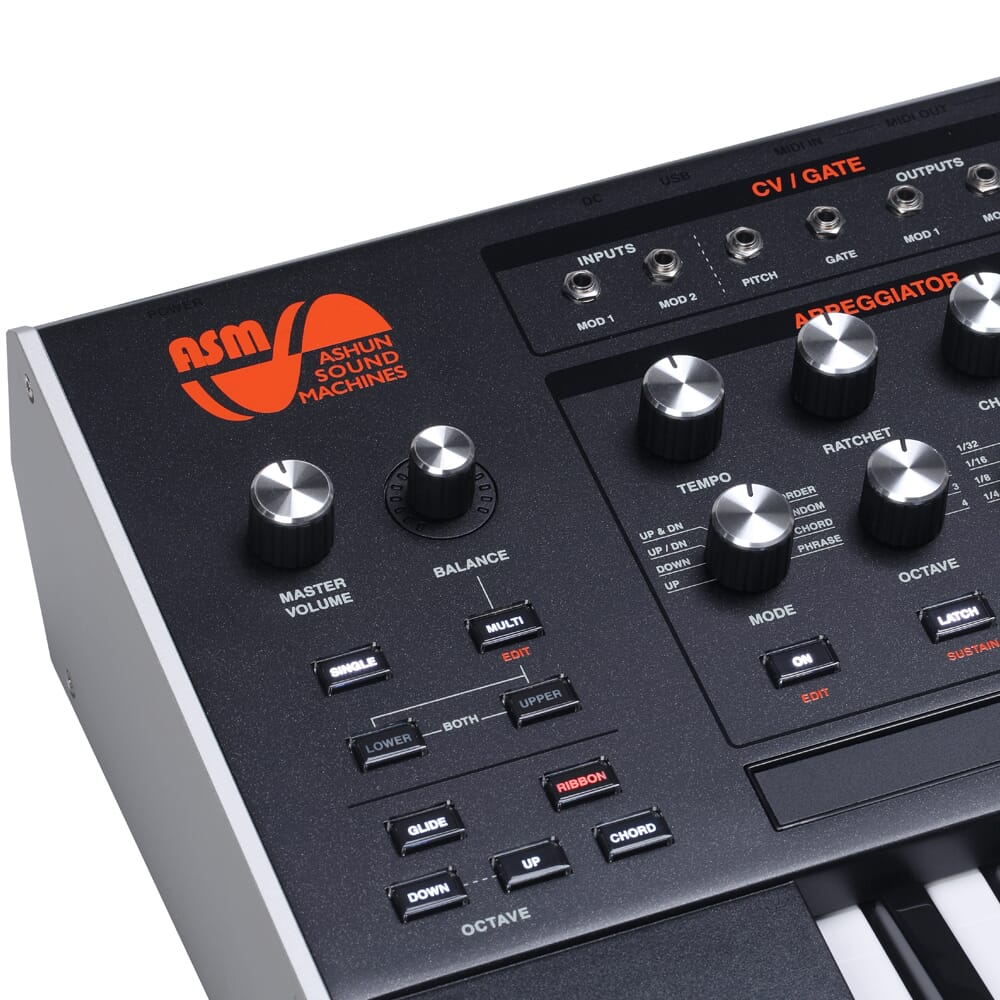

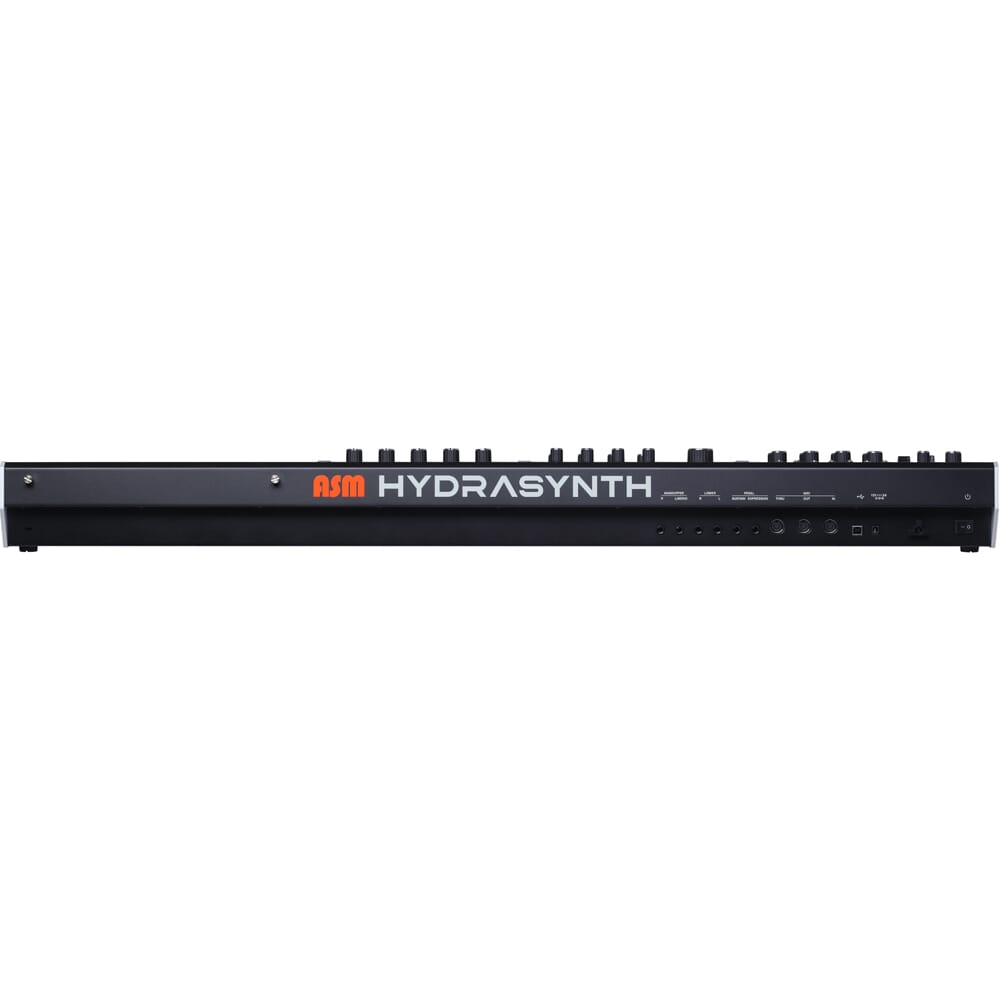

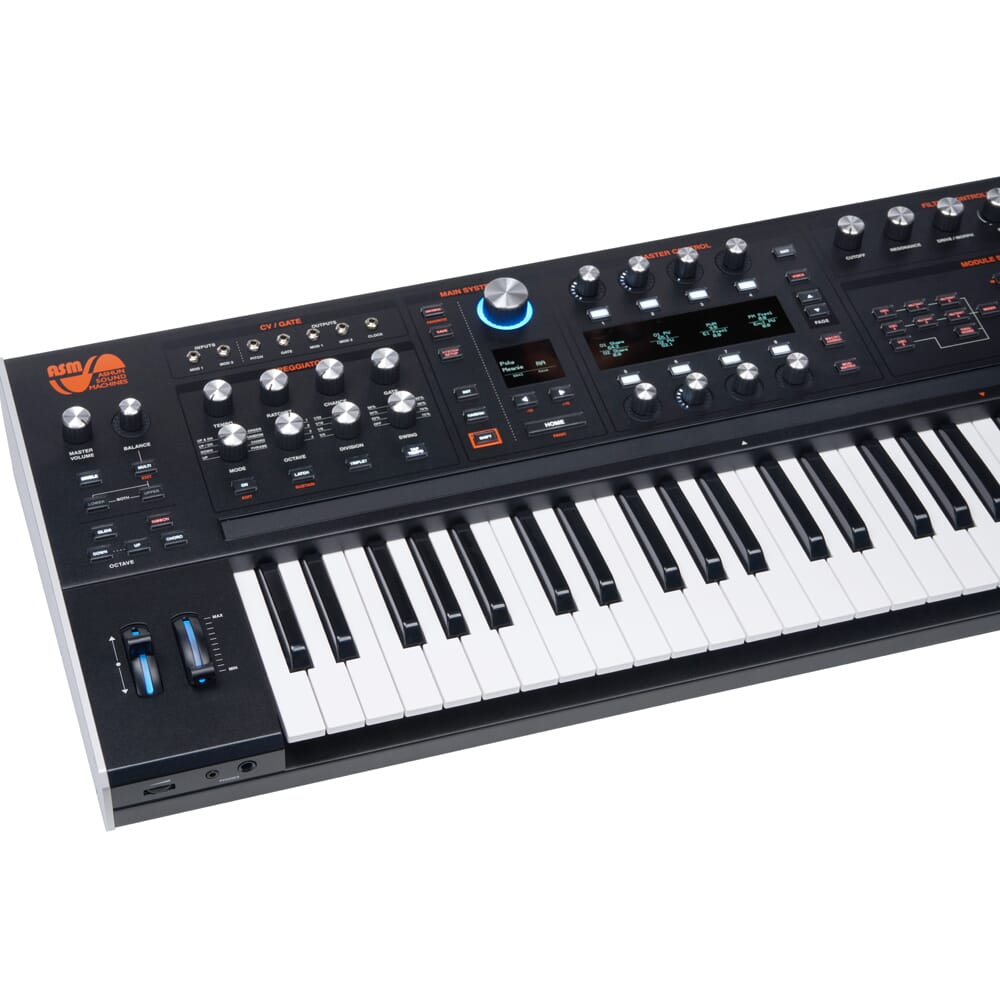

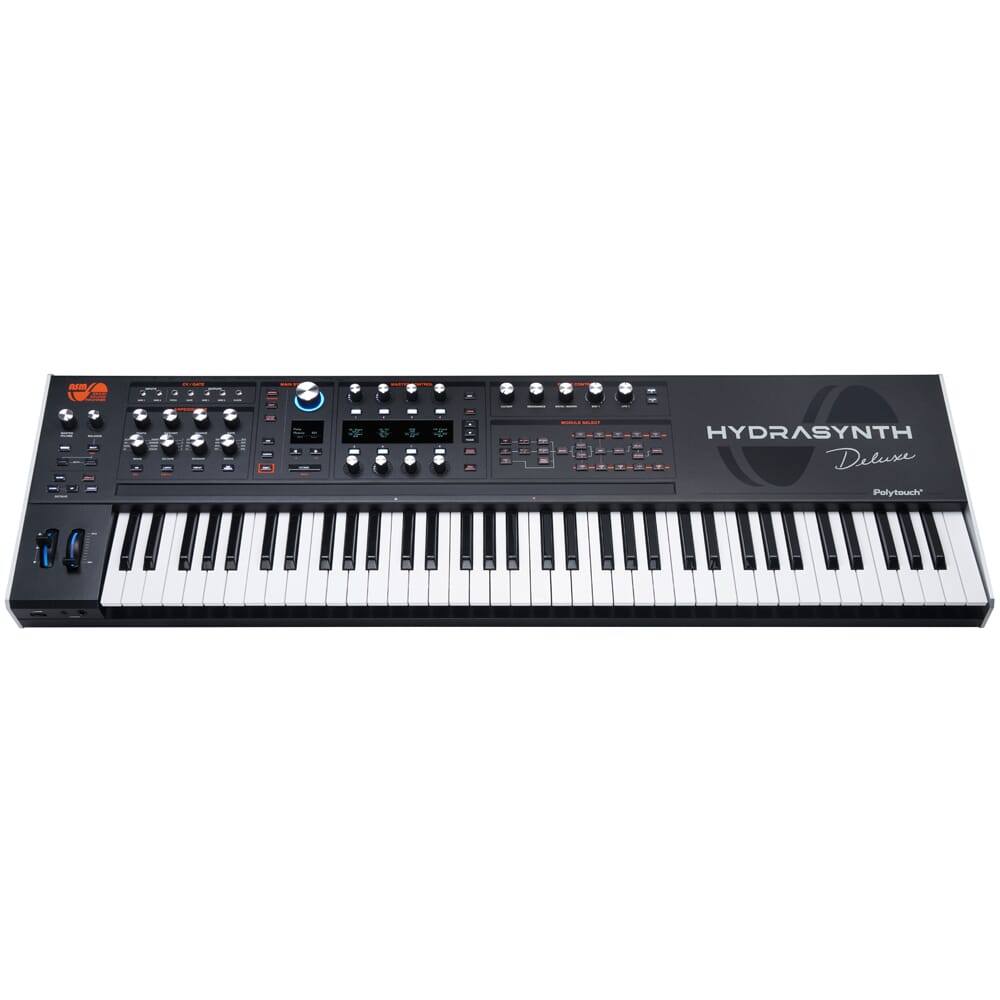

ASM HydraSynth Deluxe Digital Poly Synth
The ASM HydraSynth Deluxe is the new flagship Hydrasynth. Offering a dual-engine setup with a total of 16 voices plus an all new 73-note keybed featuring ASM's much sought after PolyTouch® polyphonic aftertouch functionality, clearly in a class of its own.
With essentially two Hydrasynths in one instrument, KeySplit and Dual voice mode patches with 8 independent voices each are possible. You also have separate balanced stereo audio outputs for each of the two parts. The easily accessible 4 octave ribbon controller adds for truly expressive playing.
The Hydrasynth Deluxe of course offers CV/GATE I/O for interfacing to modular and other voltage controlled synths. There's a ton of potential for sound creation, using ASM's WaveScan oscillators
together with the Mutator waveshaping section and user configurable filters. A plethora of LFO's and Envelope's plus Insert and Master Effects makes this a dream sound creation tool and quite possibly the ultimate synthesizer and controller combo for your rig.
Features
- Dual sound engines with 16 voices total
- Single mode: one 16-voice patch
- Multi mode: two independent 8-voice engines
- Keyboard split or layer options
- Balance control for Upper/Lower parts
- Independent stereo outputs per engine
- Independent MIDI channels for bi-timbral operation
- 73-note semi-weighted keybed
- Fully polyphonic aftertouch
- Velocity sensitivity and monophonic aftertouch
- High-quality, standard-size keys
- 4-octave Ribbon Controller
- Ribbon assignable as modulation, pitch bend or monophonic controller
- Theremin mode with continuous or quantized pitch
- Ribbon CV output for Eurorack control
- Included detachable laptop shelf
- 3 oscillators with 219 single-cycle waveforms
- Oscillators 1 & 2 include wavemorphing
- WAVELIST mode for custom 8-wave sequences
- Modulation-based wavemorphing or manual morphing
- Selectable oscillator bit-depth for vintage/grunge tones
- Mutants (Waveshaping Modules)
- Each Mutant offers:
- FM-Linear
- WavStack™ (5-voice stacked detune)
- Osc Sync
- Pulse Width (classic), PW-Squeeze, PW-ASM
- Harmonic Sweep
- PhazDiff
- Mutants can generate their own waveforms
- Flexible modulation routing between oscillators
- Mixer for Osc 1, Osc 2, Osc 3, Noise, Ring Mod
- Independent level and stereo positioning
- Per-source routing to Filter 1 and/or Filter 2
- Filters can run in series or parallel
- Filter 1:
- 16 filter models (1–8 poles)
- Multiple LP/BP/HP modes
- Vocal/formant filter
- Filter 2:
- 12dB state-variable filter
- Continuous LP–BP–HP or LP–Notch–HP morphing
- SEM-style behaviour
- Series/parallel configuration options
- 5 advanced LFOs
- Up to 64-step sequencing per LFO
- 10 waveforms including S+H, Noise, Random
- Delay, fade-in, trigger modes, smoothing
- BPM sync and One-Shot modes
- Step advance mode (v2.0)
- Quantized/stepped LFO output
- 5 DAHDSR envelopes (6-stage)
- Tempo-syncable ADR stages
- Envelope looping (behaves like LFOs)
- Up to 4 trigger sources per envelope
- Tap Trigger option
- Quantized/stepped envelope output (v2.0)
- 32 user modulation slots
- 35 modulation sources
- 191 destinations
- Modulation routes can themselves be modulated
- Macros can target destinations and mod routes
- CV Mod In & Out included
- Supports all 128 MIDI CCs
- Additional hard-wired mod paths
- Separate arpeggiators for Upper/Lower parts in Multi mode
- Multiple arp directions and phrase mode
- Step Offset and 6-octave range (v2.0)
- Ratchet and Chance parameters
- Arp parameter modulation
- MIDI In/Out/Thru
- USB/MIDI interface
- CV/Gate I/O for Eurorack / Buchla / Volts-per-Hz systems
- CV Mod inputs and outputs (DC to audio-rate)
- Independent MIDI channels for Upper/Lower parts in Multi mode
- OLED parameter displays
- Patch browsing, system settings, visual envelope/wave/filter displays
- INIT and RANDOM patch/module/parameter generation
- HOME shortcut page
- Parameter editing via encoders with LED rings
- Patch naming and Macro performance controls
- Polyphony, analog feel, voice panning, per-voice modulation
- Glissando mode for Glide
- 8 Macro encoder/button pairs
- Up to 8 destinations per Macro × per part
- 128 total destinations in Multi mode
- Macro-controlled effects and mod routes
- Save transformed patches
- 8 × 128 Single-mode patch banks
- 5 × 128 Multi-mode patch banks
- Independent Upper/Lower patches in each Multi
- Favorites browser with 128 quick-select patches
- Patch Manager app for Windows/macOS
- Independent pre- and post-FX for Upper and Lower
- Includes pitch effects, Lo-Fi, EQ, Distortion
- High-quality delays and reverbs
- Full per-part effects chains in Multi mode
Specifications
| Chassis |
|---|
|
| Keybed |
|
| Ribbon Controller |
|
| Hardware Controls |
|
| Patch Memory |
|
| CV/Gate I/O |
|
| MIDI |
|
| Pedal Inputs |
|
| Connectivity |
|
| Audio Outputs |
|
| Dimensions (No Shelf) |
|
| Dimensions (With Shelf) |
|
| Weight |
|
| Synthesis Engine |
|
| Oscillators 1 & 2 |
|
| Oscillator 3 |
|
| Mutants |
|
| Noise Generator |
|
| Ring Modulator |
|
| Mixer |
|
| Filters |
|
| Patch Parameters |
|
| LFOs |
|
| Envelopes |
|
| Modulation Matrix |
|
| Macros |
|
| Arpeggiator |
|
| Pre-Effects |
|
| Delay |
|
| Reverb |
|
| Post-Effects |
|
