Reloop Flux, 6-In/Out USB-C DVS Interface for Serato DJ Pro

Condition  Brand New
Warranty  1 Year Warranty
Delivery  Free Delivery

  • Next-gen USB-C DVS audio interface for Serato DJ Pro
  • Studio-grade 24-bit/96 kHz sound card with superior audio and ultra-low latency
  • Heavy-duty club design with Power Delivery support and USB hub
  • 6-In & 6-Out plus direct THRU
  • Includes Serato DJ Pro & DVS software
£296.00 £349.00
Earn 296 Loyalty Points.
+
AVAILABILITY:
In stock, immediate despatch

In stock, immediate despatch

product timer
Order soon for delivery
on using our express service
Finance this product
Finance
Reloop
payment for product

Condition  Brand New
Warranty  1 Year Warranty
Delivery  Free Delivery

  • Next-gen USB-C DVS audio interface for Serato DJ Pro
  • Studio-grade 24-bit/96 kHz sound card with superior audio and ultra-low latency
  • Heavy-duty club design with Power Delivery support and USB hub
  • 6-In & 6-Out plus direct THRU
  • Includes Serato DJ Pro & DVS software

Product Details

Product: Reloop Flux, 6-In/Out USB-C DVS Interface for Serato DJ Pro

SKU: DDJ5284

Condition  Brand New
Warranty  1 Year Warranty
Delivery  Free Delivery

Reloop Flux Serato DVS Interface

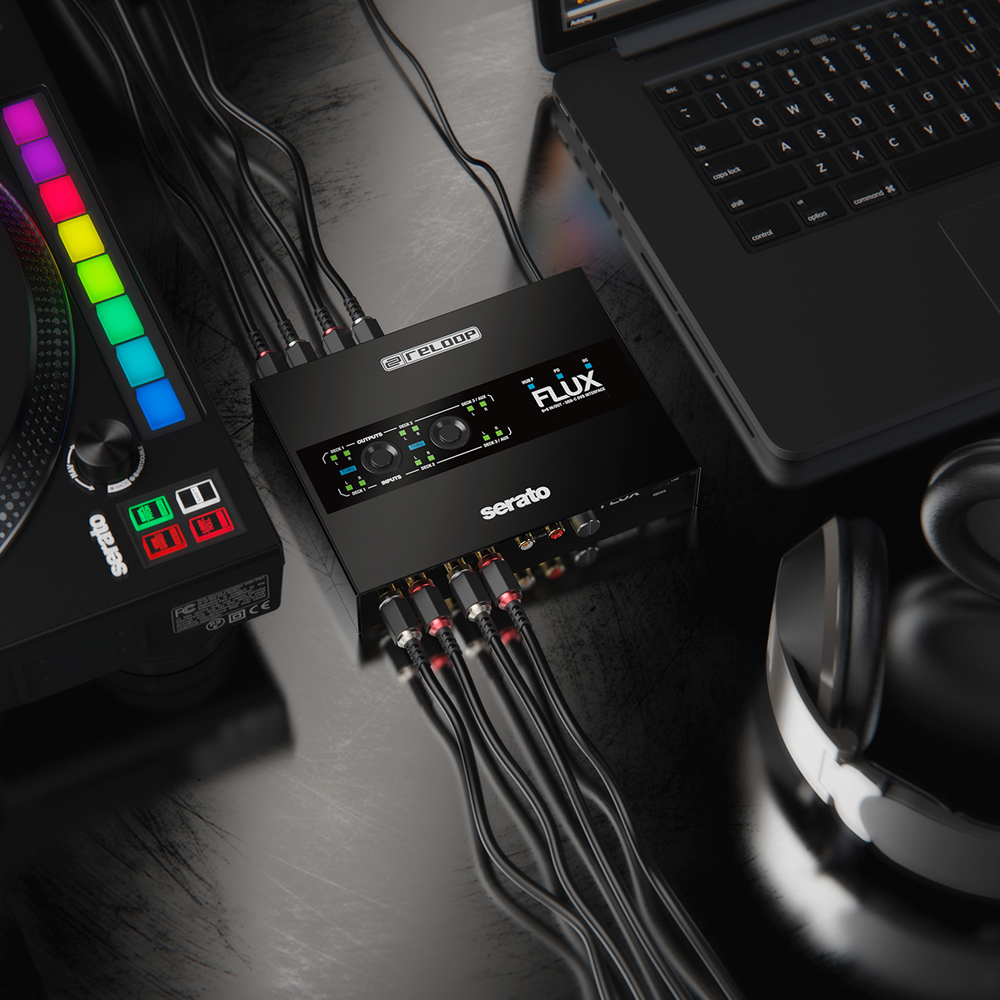

The Reloop Flux is a next-generation USB-C interface for using Serato DJ Pro with turntables, CDJs or other media players. The interface boasts superior audio qualities, a well-designed operating concept and a club-ready design. It can transform any conventional mixer into a professional digital vinyl system.

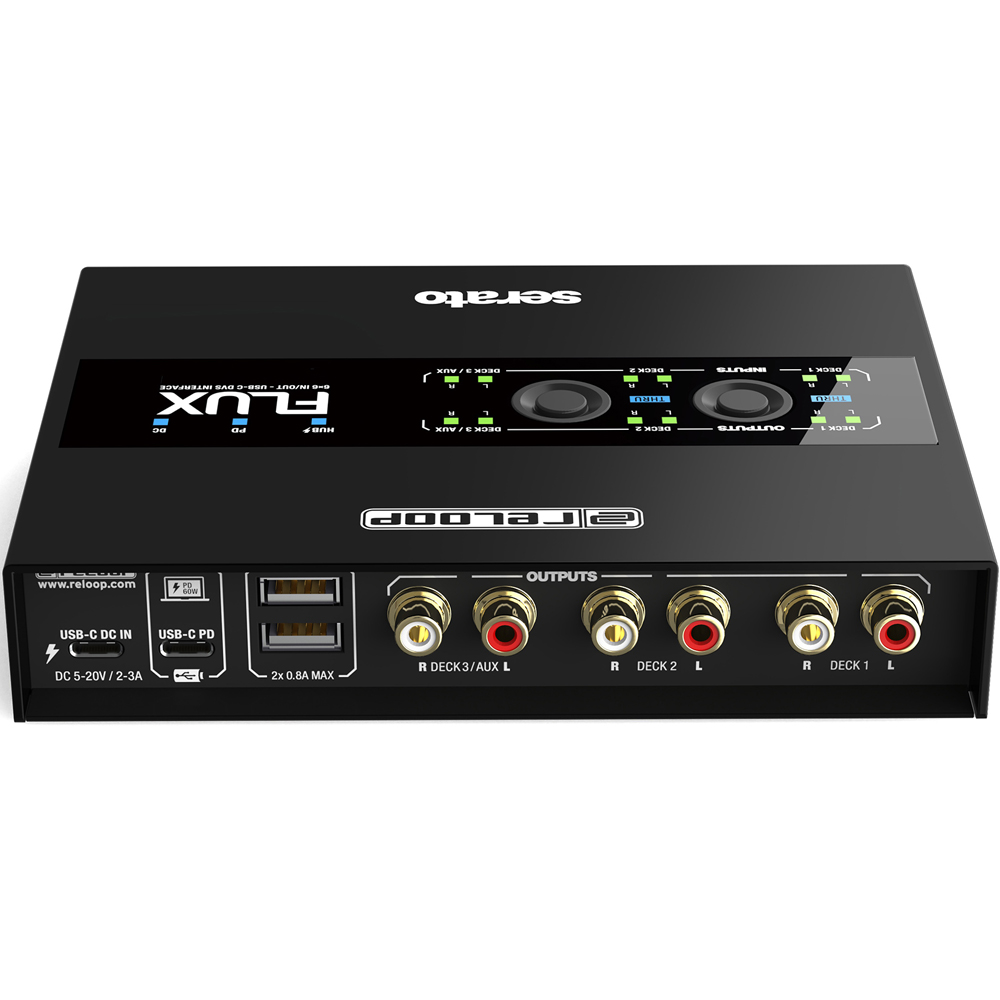

Three stereo inputs provide DJs with maximum flexibility. Turntables, CDJs and similar can be used in any combination. The settings are adjusted using discreet DIP switches, which virtually eliminates any chance of accidental switching in the club. The interface includes three stereo outputs, including an AUX out that can be routed to Serato DJ Pro´s internal sampler. Gold-plated, corrosion-resistant RCA jacks ensure high-quality audio transmission.

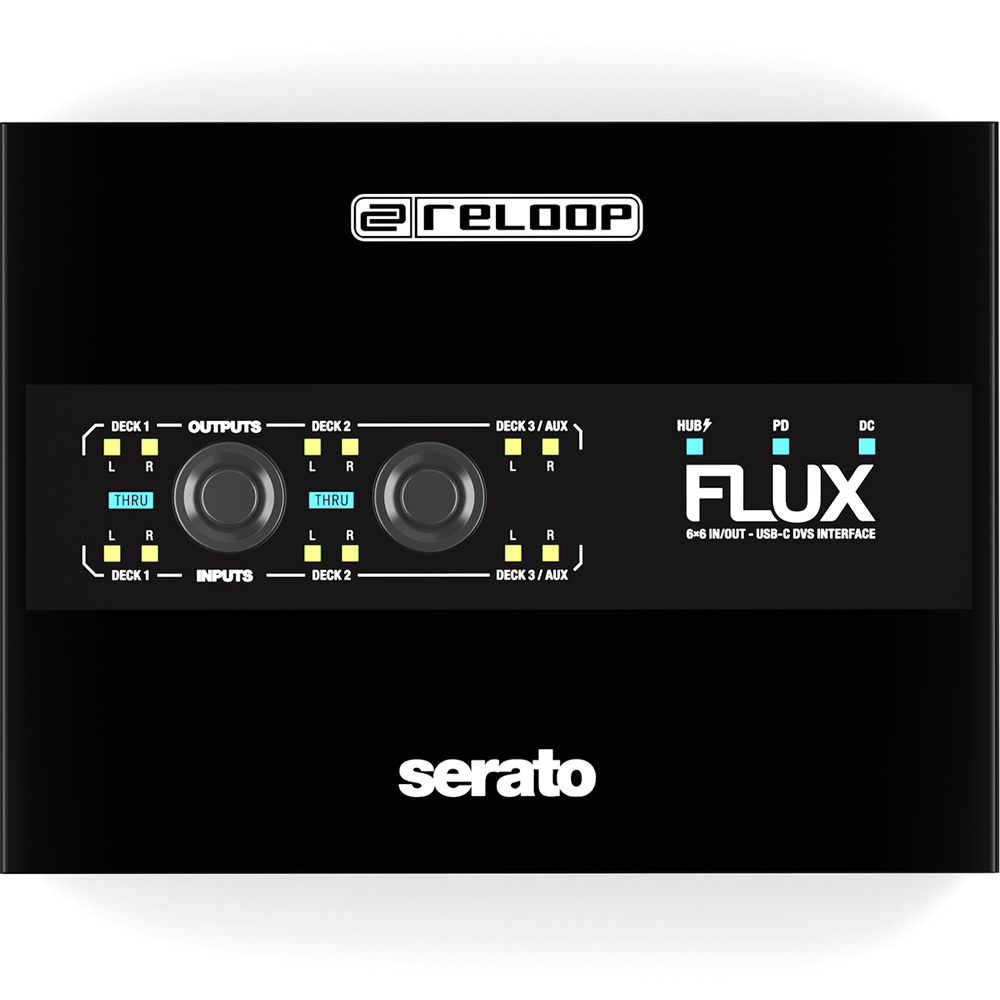

The Flux provides the best possible routing overview thanks to clearly visible signal flow LEDs for all inputs and outputs and a Thru status indicator. Connection status (hub, PD, DC) LED indicators on the top of the interface provide additional control options. The Direct Thru buttons on the top of the interface enable you to quickly and easily activate and disable Thru mode, which allows connected turntables and CDJs to be used conventionally. Navigation through the Serato software is no longer necessary.

The Flux includes a built-in 2-port USB-A hub for connecting MIDI controllers and other USB accessories. Aside from the expanded connection options, the hub reduces potential connection faults in a busy club environment by keeping the setup connected even without the laptop.

The Flux offers studio quality in the club and wherever it's needed with 24-bit/96 kHz, high-quality digital/analogue converters and ultra-low latency. For this reason, it’s a superior DVS interface which could also be used as an audio interface in the studio.

The Flux is bus-powered by a computer, so there's minimal wiring required for audio and power cables. The DVS interface can also be powered by external power sources through the USB-C DC input, allowing turntables and CDJs to be used in Thru mode even without a computer connected. The Flux's second USB-C port provides Power Delivery support for other USB-C devices (max. 60 W), such as a MacBook.

The interface has a durable metal housing with a scratch-resistant, black surface, ensuring a long service life even with heavy use. The extended edge design keeps the connections well-protected.

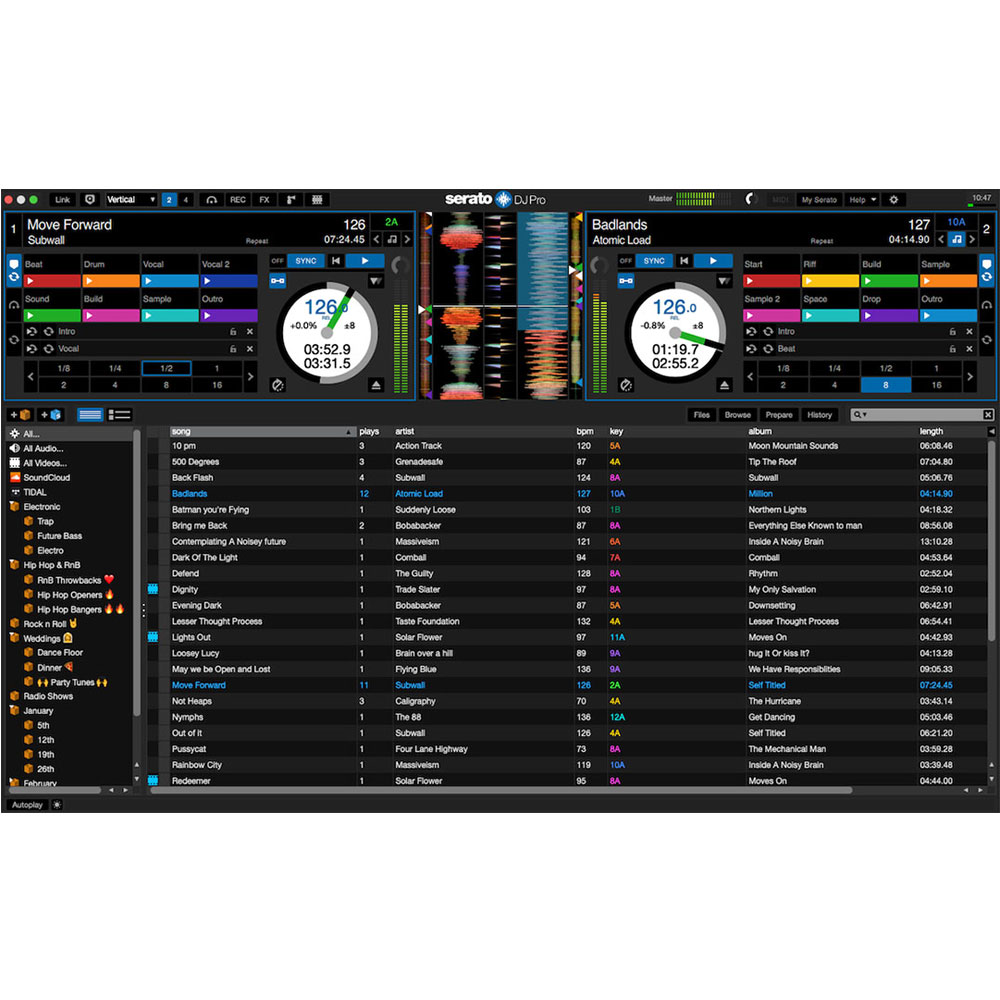

The Reloop Flux unlocks the full version of Serato DJ Pro and Serato DVS. This means DJs can get up and running with the market-leading digital vinyl system in no time. Additional licences are not necessary.

PLEASE NOTE: Timecode Vinyls are NOT included - you can buy them here.

  • 3-channel (6x6 in/out) USB-C DVS interface for Serato DJ Pro
  • Turn any mixer into a professional digital vinyl system
  • Unlocks full version of Serato DJ Pro and Serato DVS
  • Studio-grade 24-bit sound card with crystal-clear audio and ultra-low latency response
  • Supports up to 96kHz with high-quality D/A converters for superior audio processing
  • Also functions as a stand-alone studio interface for recording and playback audio

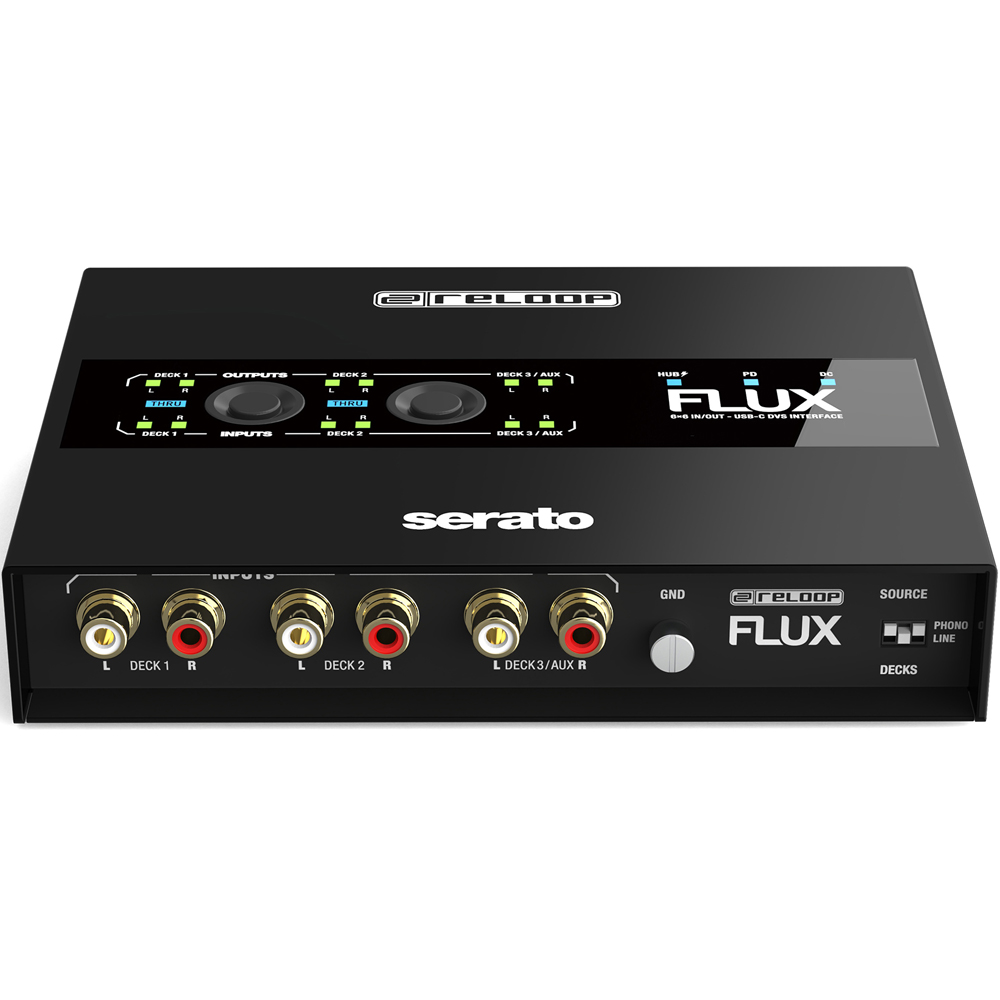

  • 3x inputs for turntables, CD players or AUX-In for live feed signal, switchable in any combination via dedicated dip switches
  • Dedicated GND terminal for grounding turntables
  • Gold-plated, corrosion-resistant audio connections
  • 3x line outputs, including AUX-Out, assignable to the Sampler
  • Easy, accessible direct thru buttons for analogue deck playback
  • All terminals are visible from the top of the unit for easy installation in dark surroundings
  • Bus-powered cable connection for power and audio
  • Optional USB-C DC in port for external power supply
  • Power delivery support for USB-C devices (max 60W)
  • Signal-flow LEDs for all inputs and outputs (L/R) and thru indication for clear visibility
  • Power LEDs on the top panel for connection status (Hub, PD, DC)
  • 2-port USB-A hub for connecting further accessories
  • Rugged, heavy-duty metal housing with a scratch-resistant black finish for durability on the road and reliability in the club
  • Highly robust, extended edge design to protect connection terminals
  • Supports the use of Serato NoiseMap™ control vinyl (not included) or custom control signal WAV file for use via CDs or USB drive (download available) with no additional license purchase needed
  • Including: 2x RCA audio cables, 1x USB-A to USB-C, 1x USB-C to USB-C, user manual
Specifications

Power:
USB bus powered: Yes
Recommended power: 2 A or higher / minimum power: 400 mA
Maximum USB-PD throughput: 60 W
Maximum USB Hub power output: 2 x 0.8 A = 8 W
Supported external USB (type A or C) power supply: 5 V/1 A - 20 V/3 A
Power supply priority: FLUX self-power -> USB Hub -> PD (to PC)

Audio:
S/N Ratio (output reference level 1 kHz, +4 dB):
- Deck In (LINE signal input: 0 dBV): More than 83 dB
- Deck In (PHONO signal input: -32 dBV): More than 73 dB
THD + N:
-LINE signal input: -4 dBV @1K / Less than 0.03% (1 kHz,+0 dB)
-PHONO signal input: -36 dBV @1K / Less than 0.05% (1 kHz,+0 dB, Inverse RIAA)

Maximum Gain:
- Deck In (LINE): +4 dB ± 2 dB
- Deck In (PHONO): +36 dB ± 2 dB
Maximum Input (1 kHz, THD=1%):
- Deck In (LINE): More than +7 dBV
- Deck In (PHONO): More than -25 dBV
Maximum Output (1 kHz, THD=1%):
- Deck Output: More than +11 dBV

USB:
USB audio interface with 24 bit/44.1 kHz, 48 kHz, 96 kHz
USB 2.0 high-speed (480 Mbit/s)
Class-compliant on macOS
USB Power Delivery Protocol 3.0

General:
Dimensions (WxDxH): 160 x 120 x 34 mm
Weight: 0.85 kg
Accessories: User Manual, 1x USB type C/C cable, 1x USB type C/A cable, 2x RCA cables

UK Deliveries

We offer free delivery on all of our items (UK mainland only) please see details below.

Destination Delivery Times Cost
UK Mainland Economy (only available for orders over £70) 3-5 Working Days* Free of charge
UK Mainland Express Next Day* £4.99
UK Mainland Saturday and Sunday Saturday or Sunday £14.99
Northern Ireland, Scottish Highlands 2 Working Days* £11.99
Scottish Islands, Channel Islands, Isle of Man, Isles of Scilly 2 Working Days* £14.99

*Applies to in stock items. Orders placed after 5pm will be dispatched the following working day, next day delivery does not include Saturday or Sundays. Some services are only available to UK mainland addresses.

Jersey and Guernsey are also VAT exempt, so 20% will automatically be knocked off when selecting your country in the basket or checkout.

Pre 10am, 12am and named day delivery options are available in the basket, simply enter your postcode for an accurate price. Please note there is a surcharge for individual, very heavy items over 30kg. This will be applied in the basket.


European Deliveries

We ship to most European destinations, simply choose your country and the correct price will show up in the basket.

Delivery times range from 2-4 days, 4-9 for remote areas.

A quick glance at some of our rates...

Destination Delivery Times Cost
Republic of Ireland, Belgium, France, Germany, Italy & Netherlands 2-4 Working Days £14.99
Spain, Austria, Denmark, Hungary 3-5 Working Days £19.99

Rest of the World

We can ship anywhere in the world, if you are outside of the EU we will knock 20% VAT off the price, rates depend on weight so please get in touch for an accurate price, [email protected]

Read more about our delivery here.


Returns

Our returns system is easy, you have the right to cancel an order up to 14 days, please check our full returns policy here.

Customer Reviews

Customers Also Bought

Allen & Heath Xone 43 Professional Analogue DJ Mixer
£649.00
  • 4 channels with phono/line inputs
  • External FX loop (Send/Return) system with dry/wet control per channel
  • Xone filter system
  • Dedicated booth and record outputs
  • 3.5mm and 1/4″ headphone outputs

4-Channels of analogue goodness!

Only 1 in stock, immediate despatch  Only 1 in stock, immediate despatch
£649.00£850.00
£649.00
Native Instruments Traktor X1 MK3 USB MIDI Controller + Traktor Pro 4 Full Version
£222.00
  • Includes Traktor Pro 3 full version
  • Mixer mode, can be used as a mixer too!
  • Get clear visual feedback with user-definable button colour coding
  • The new light-based system highlights when a track is about to run out or if a loop is active
  • Integrated powered USB hub for connecting external equipment or daisy-chain multiple X1's

A compact, flexible, modular DJ controller built to integrate seamlessly with Traktor software

In stock, immediate despatch  In stock, immediate despatch
£222.00£259.00
£222.00

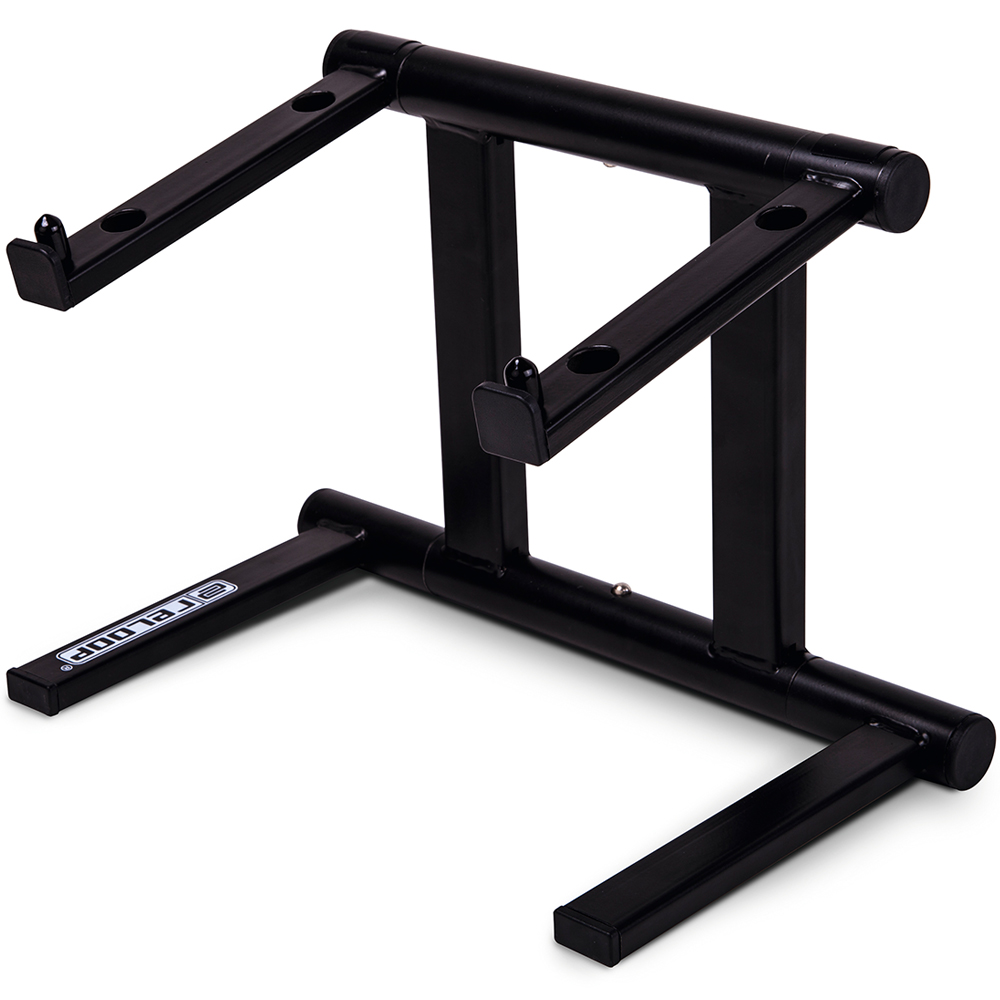

Reloop Modular Stand
