Solid State Logic Fusion, Analogue Stereo Outboard Processor

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • A master processor with 5 new SSL analog color circuits
  • Vintage Drive saturation circuit for vintage sweet spot
  • Violet 2-band EQ offering instant low-end weight and gorgeous high-end air
  • HF Compressor optimized for smoothing out high-end response
  • Built-in M-S circuit for wider mixes with increased depth
£1,549.00 £1,798.80
Earn 1,549 Loyalty Points.
+
AVAILABILITY:
In stock, immediate despatch

In stock, immediate despatch

Order soon for delivery
on using our express service
Finance this product
Finance
Solid State Logic

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • A master processor with 5 new SSL analog color circuits
  • Vintage Drive saturation circuit for vintage sweet spot
  • Violet 2-band EQ offering instant low-end weight and gorgeous high-end air
  • HF Compressor optimized for smoothing out high-end response
  • Built-in M-S circuit for wider mixes with increased depth

Product Details

Product:

Solid State Logic Fusion, Analogue Stereo Outboard Processor

SKU: DDJ4385

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

SSL Fusion, Stereo Analogue Colour, Outboard Processor, Rackmountable

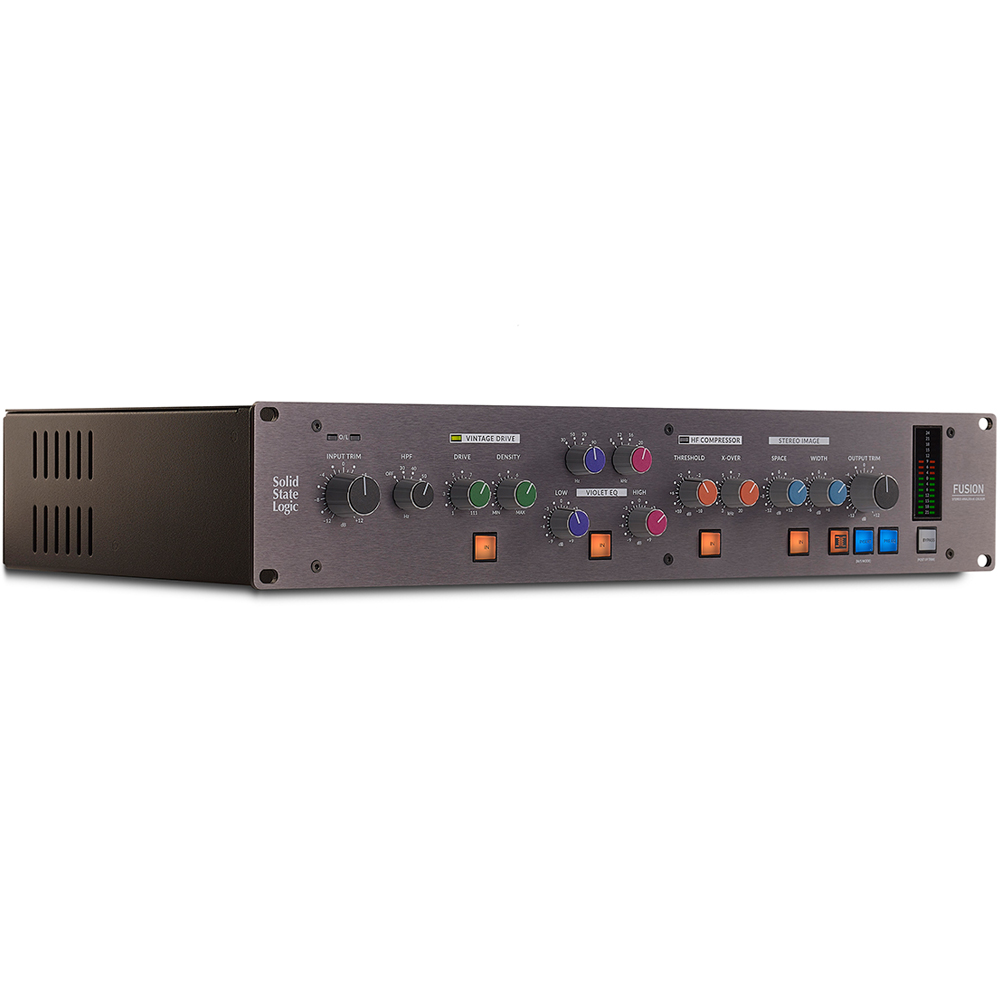

Solid State Logic Fusion is an all-analogue 2U outboard processor created for the modern hybrid studio. Fusion introduces five completely new analogue colouration tools designed to bring the perfect combination of added tonal character, weight and space to your mix bus or stereo stems, with the detail, warmth and finesse that only real analogue circuits can provide.

The SSL sonic legacy is built upon a much-emulated collection of analogue audio processing tools that have featured in generations of studio consoles; pristine mic pre’s, classic Channel EQ & Dynamics, the legendary Stereo Bus Compressor, the Listen Mic Compressor, and the unique SSL summing bus. Fusion takes SSL into a new era with the introduction of a suite of new analogue processing tools that offer exceptional tonal character and versatility. Fusion expands the processing palette for hybrid studio owners and is a superb partner for the SSL Stereo Bus Compressor.

Fusion features five analogue processors that can be used discretely or combined:

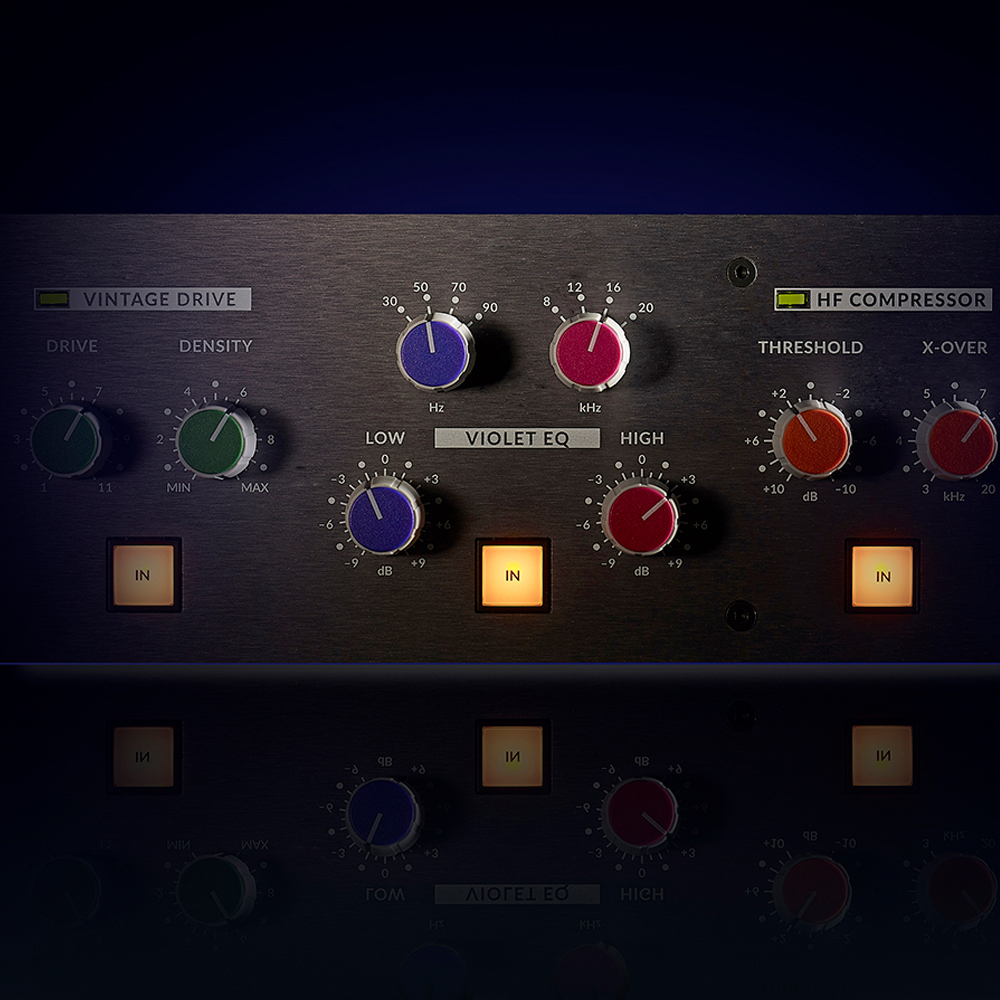

Vintage Drive
Vintage Drive is a unique non-linear harmonic enhancement circuit that brings cohesion and strength to your mix. Drive and Density controls interact to produce harmonic saturation and soft compression derived from overloading an analogue circuit. It can be used lightly for subtle thickening saturation or driven hard for more extreme distortion.

The SSL Violet EQ
An all-new minimum phase-shift, two-band shelving EQ. The first new SSL analogue EQ circuit for more than 25 years draws on the SSL legacy of carefully selected frequencies and response curves to create a musical and intuitive EQ designed to quickly dial in low-end weight and high-end sheen. High and Low frequency circuits each offer four switched frequency points and +/-9dB attenuation.

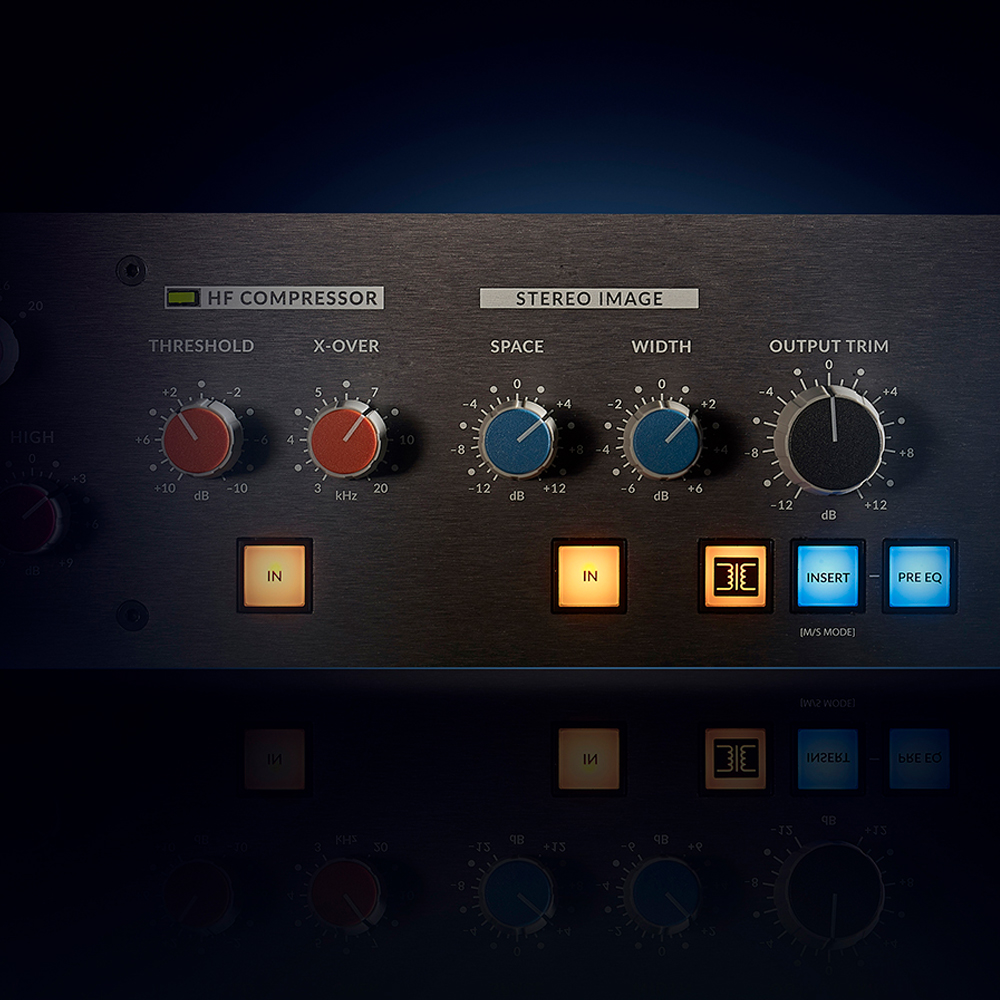

High Frequency Compressor
A new High Frequency Compressor delivers the distinctive sound of high frequency rounding in the analogue domain. A compressor that effects high frequencies only, optimised for smooth and transparent harshness reduction and a tape-like high- frequency roll off – great for taming brittle high frequency fizz.

Stereo Image Enhancer
A new Stereo Image enhancer provides a true analogue Mid-Side circuit that manipulates the Side signal, allowing for widening and spatial manipulation of the stereo field.

SSL Transformer Circuit
A switched, custom-designed SSL Transformer circuit introduces subtle low-frequency saturation, alongside a high-frequency phase-shift. The result is a simultaneous thickening of the low-end and an added sparkle to the high-end.

Expertly designed for today’s hybrid studio

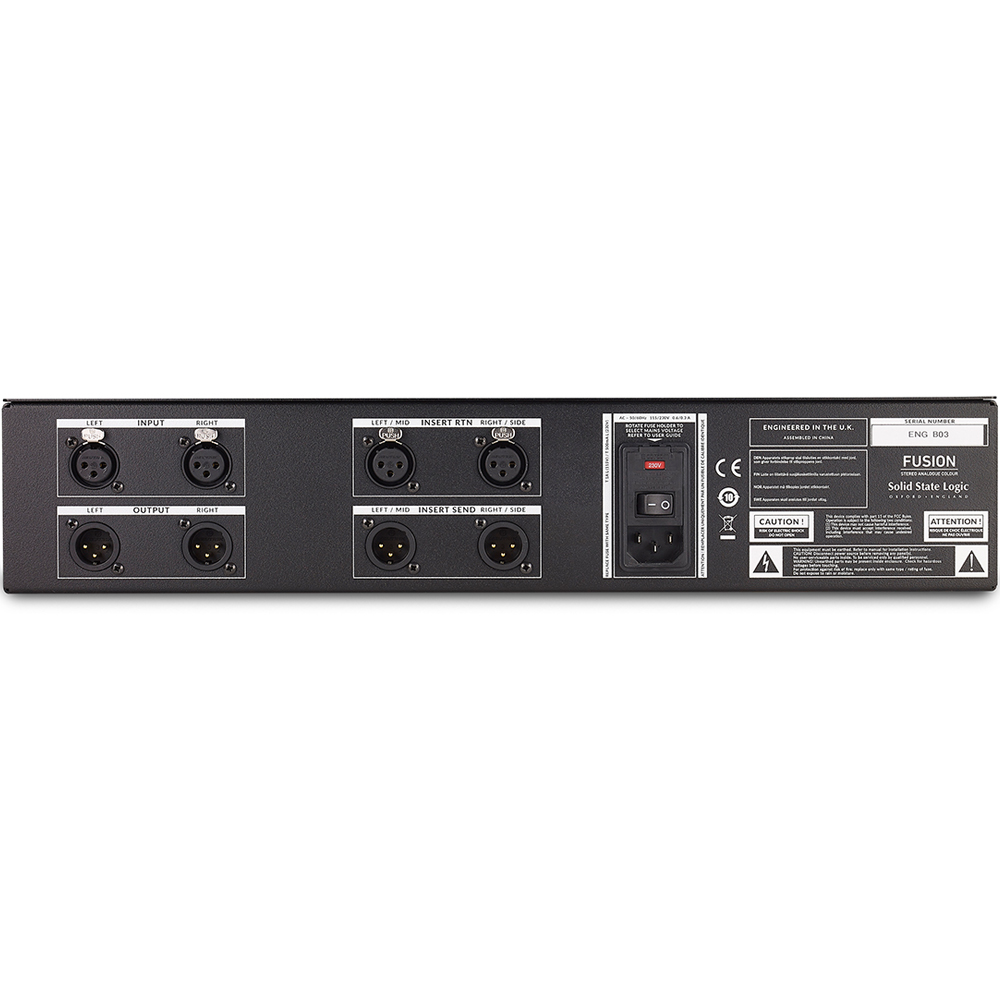

SSL has also always been known for clever connectivity and features that streamline and accelerate production workflow. Fusion fits right in with a collection of workflow enhancing features including: +/-12dB Input and Output Trim controls, an Input overload LED, large peak-hold metering, a front-end 3rd order High Pass Filter with three selectable cut off frequencies, and tri-colour status indicators for the Vintage Drive and HF Comp sections. A set of XLR connections can be used either as a Stereo Insert for stereo mix bus processing or switched to function as a Mid-Side (MS) circuit enabling separate compressors or EQ to be applied to the middle (centre) and sides of a stereo signal. In Stereo Insert mode the insert point can be switched to pre-Violet EQ, when in MS mode the insert can be switched to pre-Stereo Image controls. Input and Output connections are via XLR.

  • A master processor with 5 new SSL analog color circuits
  • Vintage Drive saturation circuit for vintage sweet spot
  • Violet 2-band EQ offering instant low-end weight and gorgeous high-end air
  • HF Compressor optimized for smoothing out high-end response
  • Built-in M-S circuit for wider mixes with increased depth
  • SSL Transformer introduces subtle low-frequency harmonics and top-end sparkle
  • 3rd-order HPF (high-pass filter) to eliminate unwanted low end
  • SuperAnalogue center-indented Input and output trim controls for gain staging
  • Individual Bypass switches for each circuit to easily compare sounds
  • Master Bypass switch with two modes of operation
  • Master LED meter with 3-second peak hold segments switches
  • Input clipping O/L LEDs that are triggered at +27dBu
  • Balanced XLR I/O throughout for professional studio integration
  • Enhanced dot-dash screening around controls for clarity and easy recall
  • Adjustable front-panel meter/switch brightness for personal preference
Dimensions (W x D x H) 480 x 303 x 88.9mm
Weight 6kg
Power 50 Watts max / 40 Watts typical
Input Impedance 10kΩ
Output Impedance 75Ω
Frequency Response 20Hz to 20kHz - ±0.05dB
-3dB low rolloff - 5Hz
-3dB high rolloff - 180kHz
CMRR 20Hz: 78dB, 85dB typical
1kHz: 78dB, 88dB typical
Noise Analyser filters/BW: 22Hz to 20kHz (AES17)
All circuits off: -86dBu, -91dBu typical
Bypass: -94dBu typical
Vintage Drive, mid Drive, mid Density: -75dBu typical
Crosstalk Analyser filters/BW: 22Hz to 20kHz (AES17) Generator +24dBu into one channel, analyzer on the other channel (generator connected but not active)
All circuits off / bypass: 1 kHz, -110dB, -115dB typical/ 20Hz, -110dB typical
