Yamaha Reface DX, Digital FM Synthesizer

Yamaha Reface DX, Digital FM Synthesizer
Demoin store
 Yamaha Reface DX, Digital FM SynthesizerYamaha Reface DX, Digital FM Synthesizer

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • 4 operator FM sound engines
  • 2 programmable fx blocks w/ 7 fx per block
  • Multi-touch control interface
  • USB to host MIDI
  • integrated speakers
£299.00 £349.00
Earn 299 Loyalty Points.
In stock, immediate despatch

In stock, immediate despatch

product timer
Order soon for delivery
on using our express service
Finance this product
payment for product

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • 4 operator FM sound engines
  • 2 programmable fx blocks w/ 7 fx per block
  • Multi-touch control interface
  • USB to host MIDI
  • integrated speakers

Product Details

Product: Yamaha Reface DX, Digital FM Synthesizer

SKU: DDJ3085

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

Yamaha Synthesizer

The Reface DX from Yamaha is a frequency modulation synthesizer offering simple controls and complex sounds in a small size. Based on the DX-7 synthesizer, the DX is a re-imagined interface providing 8-note polyphony with four operators and twelve algorithms that capable of creating a variety of sounds from retro 80's to modern EDM.

The DX's front panel offers a display screen and a multi-touch control interface to access functions, making sound design and exploration fast and easy. The operator section offers four operators arranged with twelve algorithms allowing various combinations of carriers and modulators. Full editing is available within the system menu allowing access to modes, frequency, and detune. Additional parameters include level controls, velocity sensitivity, feedback, and keyboard scaling rate. The envelope generators feature the classic attack, decay, sustain, and release (ADSR) controls. An envelope sets volume levels for carriers, while modulators offer a degree of modulation. The LFO or low-frequency oscillators offer seven waveforms which can modulate any of the operators. There is also a pitch envelope which changes the operator's pitch over time.

Additional features include a pitch-bend lever, built in stereo speakers, a dedicated volume control, an octave slider, and a looper section which operates a phrase looper for recording and playing back multiple, overlaid loop phrases. On-board effects include distortion, touch wah, chorus, flange, phaser, delay, and reverb with additional controls for depth and time. The DX can be switched between mono and poly and offers portamento or glide.

The miniature 37-note keyboard utilizes the same High Quality (HQ) technology as Yamaha's flagship Motif XF workstation keyboard, offering a premium feel and fast response for accurate and natural playing. The DX can be powered by six "AA" batteries and offers a foot control connection for a sustain pedal.

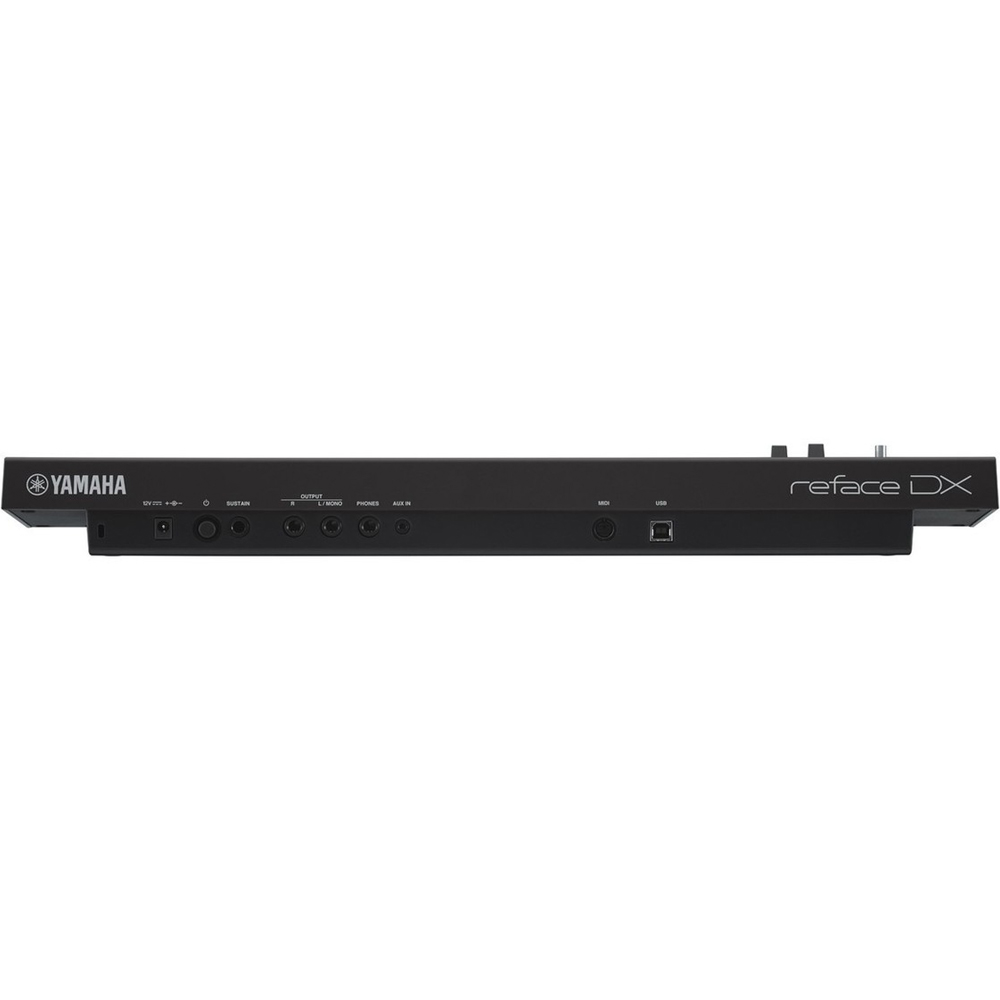

Other connections include two unbalanced 1/4" / 6.35mm outputs, a stereo 1/4" / 6.35mm headphone output, a stereo mini TRS 1/8" / 3.5mm input, and a mini-DIN connector providing MIDI in and out. Additionally, a USB connection is offered for connecting the instrument to a computer or iOS device. There are 32 on-board preset memories and an iOS app is available to work as a librarian with parameters responding to MIDI CC controller data. The DX synthesizer ships with a power adapter and a MIDI breakout cable.

  • 4-operator FM sound engine offers dynamic and expressive additive synthesis
  • Sound engine offers continuously variable feedback on every operator allowing for a wide-range of sound creation
  • Two programmable effects blocks with seven effect types per block
  • Effects include: VCM Touch Wah, VCM Flanger, VCM Phaser, Chorus, Delay, Reverb and Distortion
  • Multi-touch control interface offers direct access to four simultaneous parameters
  • Based on the FS action found on the flagship Motif XF, HQ (High Quality) Mini Keys provide premium feel and response
  • Integrated Phrase Looper: Capture song ideas or just jam
  • Sustain pedal
  • 2W 1.2" / 3.0 cm stereo speaker system lets you play any place, any time
  • Specially designed bass reflex port technology enhances bass response for full, rich sound
  • Battery Powered: Uses six "AA" batteries with five hours of life
  • USB: USB "To Host" allows MIDI connectivity to your USB-equipped computer or iOS device
  • Audio Output: Dual 1/4"unbalanced line outputs provide connection to mixers, audio interfaces, DI boxes and more
  • Audio Input: A 3.5mm aux line input lets you connect and hear mobile devices, tablets and more through the instrument
Number of Keys 37
Type Mini keys
Touch Initial Touch: Yes
Tone Generator
Tone Generating Technology FM - Frequency Modulation
Polyphony 8
Voice Type Number of Types: 12 (Algorithms)
Number of Voices 32
Effects Distortion
Touch Wah
Phrase Looper Yes
Display Type Full Dot LCD: 128 x 64 dots
DC In DC In: 12 VDC jack
Headphones Phones: Stereo TRS 1/4" / 6.35 mm
Output Output L/Mono: Unbalanced TS 1/4" / 6.35 mm Output R: Unbalanced TS 1/4" / 6.35 mm
Pedal Type Sustain
AUX Input Mini-stereo TRS 1/8" / 3.5 mm
USB USB to Host
MIDI Mini-DIN In/Out
Amplifier / Speaker
Amplifier 2x 2 W
Speakers 2x 1.2" / 3.0 cm
Power Supply
Power Adapter 12 VDC: PA-130 or equivalent recommended by Yamaha
Battery 6x AA size batteries or Ni-MH rechargeable batteries
Power Consumption 6 W (When using PA-130 power adapter)
Auto Power Off Yes
Dimension (W x D x H) 530 x 175 x 60mm
Weight 1.9kg
Included PA130 - AC Power Adapter for Entry-Level PSR and EZ-Series Keyboards
MIDI Breakout Cable (Mini-DIN to MIDI In/Out)
Limited 1-Year Warranty
