Neumann KH310A Active 3-Way Nearfield Studio Monitor (Left)

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • Wide horizontal and narrow vertical dispersion
  • Dedicated driver reproduces important midrange frequencies
  • High power magnet reduces harmonic and intermodulation distortion
  • Compact sealed three-way cabinet design (magnetically shielded)
  • Independent thermo limiters for woofer, midrange dome and tweeter
£1,899.00 £1,925.00
Earn 1,899 Loyalty Points.
+
AVAILABILITY:
Estimated restock 01/05/2024

Estimated restock 01/05/2024

product timer
Order soon for delivery
on using our express service
Finance this product
Finance
Neumann
payment for product

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • Wide horizontal and narrow vertical dispersion
  • Dedicated driver reproduces important midrange frequencies
  • High power magnet reduces harmonic and intermodulation distortion
  • Compact sealed three-way cabinet design (magnetically shielded)
  • Independent thermo limiters for woofer, midrange dome and tweeter

Product Details

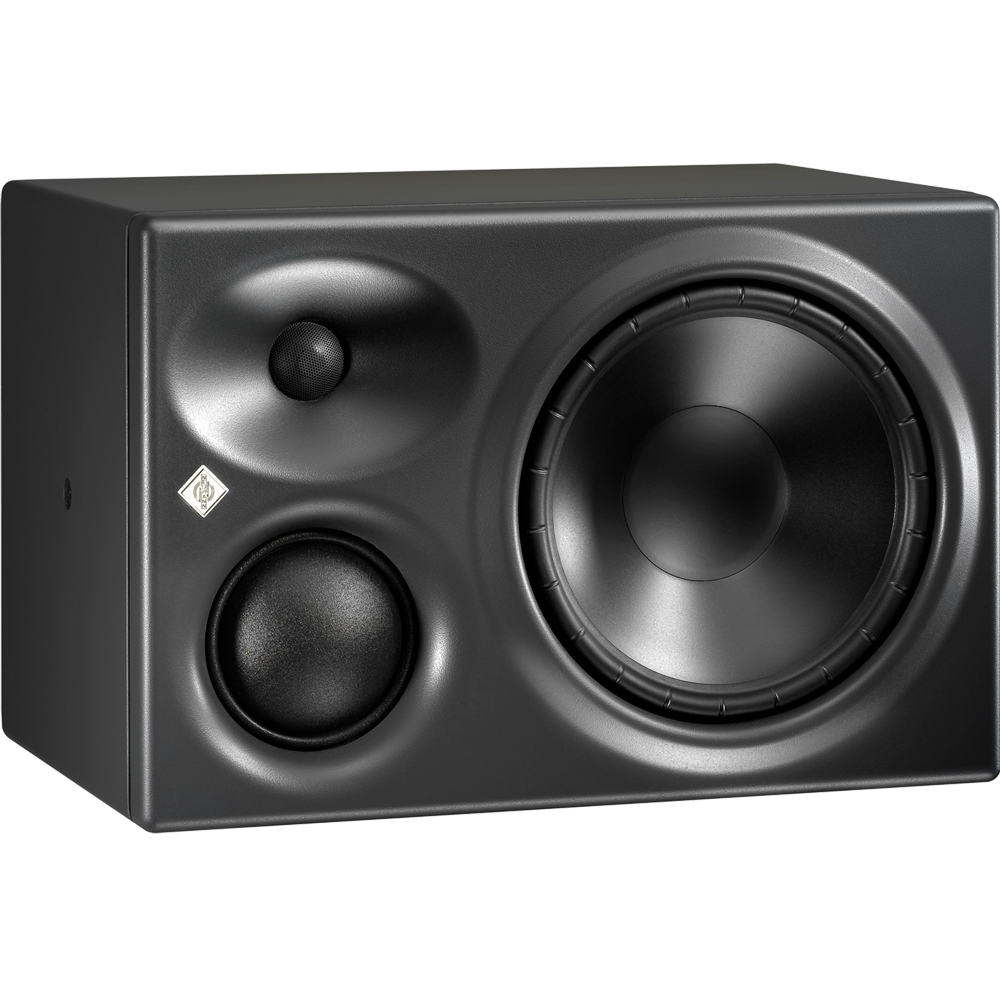

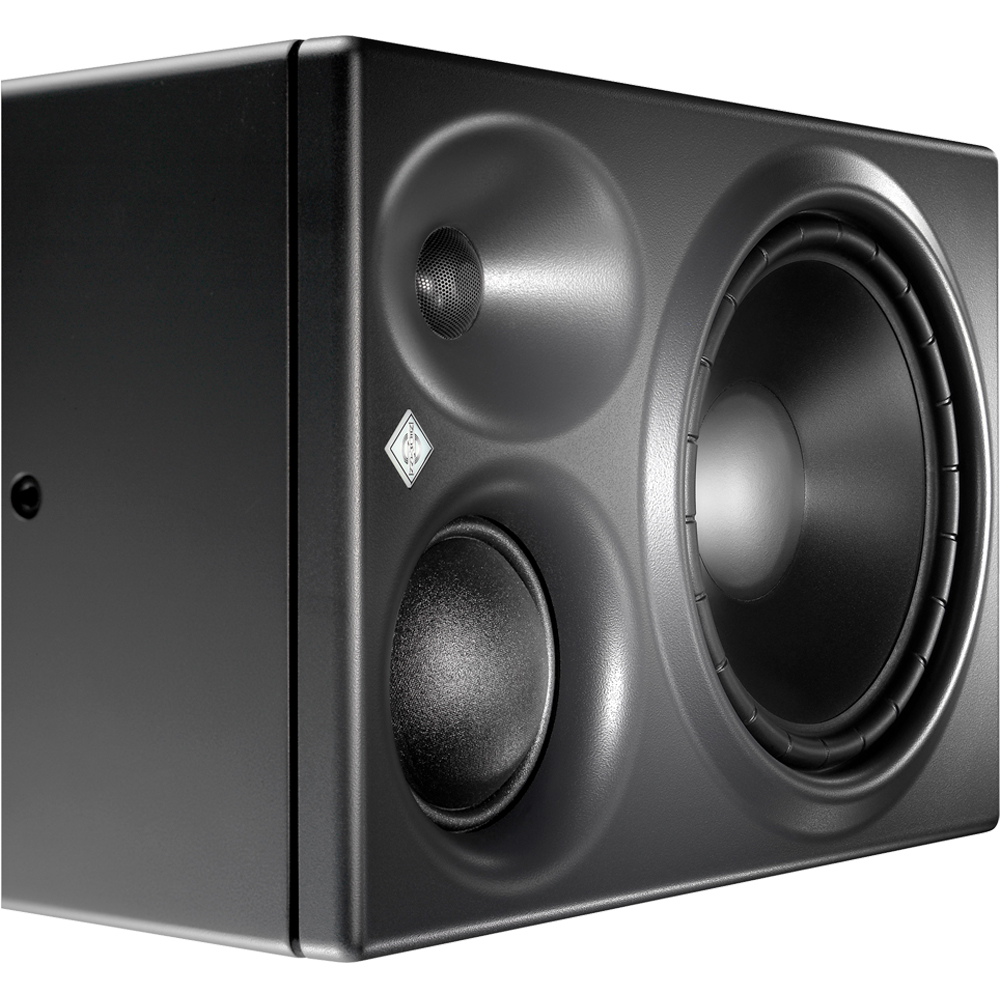

Product: Neumann KH310A Active 3-Way Nearfield Studio Monitor (Left)

SKU: DDJ3276

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

Neumann Studio Monitor - Single, Left

The Neumann KH 310 three-way active tri-amplified monitor features a Mathematically Modeled Dispersion™ Waveguide (MMD™), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 310 is designed for use as a near-field monitor, as a front loudspeaker in mid-sized multi-channel systems, or as a rear loudspeaker in a larger multi-channel system. It can be used in project, music, broadcast centres, OB vans, and post production studios for tracking, mixing, and mastering.

  • Powerful alloy fabric dome
  • Low-distortion high-frequency reproduction
  • Wide horizontal and narrow vertical dispersion
  • Smoother off-axis response
  • More forgiving of diverse acoustical environments
  • Reduces reflections off the mixing console
  • New in-house simulated drivers
  • Latest modeling to minimize non-linear distortion
  • Fabric dome, neodymium magnet, midrange driver
  • Dedicated driver reproduces important midrange frequencies
  • Light weight dome has better transient response and less breakup modes
  • High power magnet reduces harmonic and intermodulation distortion
  • Long throw composite sandwich cone bass driver
  • Extremely Linear Force Factor™ (ELFF™) and ribbed surround
  • Damping of break-up modes and low distortion at high sound levels
  • Linear pistonic motor gives a very low harmonic distortion even at high excursions
  • Reduced radial break-up modes on the ribbed surround
  • Two-colour + dimmable Neumann logo
  • Compact sealed three-way cabinet design (magnetically shielded)
  • No standing wave resonances
  • Fastest bass transient response
  • Reduced intermodulation distortion in midrange
  • One-piece front panel with no discontinuities
  • Reduced diffraction and smoother frequency response
  • Powerful analog class AB amplifiers with large headroom
  • Improved transient response
  • Independent thermo limiters for woofer, midrange dome and tweeter
  • Production consistency due to individual hand-alignment in final test
  • Any KH 310 is “pair-matched” to any other KH 310
  • 4-position bass, low-mid and treble acoustical controls
  • More control in diverse acoustical environments
  • Wide range input gain and output level controls
  • Easier interfacing with signal sources
  • Ground lift
  • Reduced noise in electrically noisy environments and over-comes ground loops
  • Universal switched-mode power supply (100 … 240 V)
  • One version works in any country and robust to poor quality mains supply
Acoustics
Free field frequency response
34 Hz - 21 kHz, ± 3 dB

Pass band free field frequency response
36 Hz - 20 kHz, ± 2 dB

Self-generated noise
(with input gain set to 100 dB for 0 dBu)
< 20 dB(A) at 10 cm

Total harmonic distortion
< 0.5 % at 95 dB SPL at 1 m
> 85 Hz

Max. SPL in full space / calc. in half space
at 3% THD at 1m
110.3 / 116.3 dB SPL
(averaged between 100 Hz and 6 kHz)

Bass capability: Max. SPL in half space
at 3% THD at 1m
104.5 dB SPL
(averaged between 50 Hz and 100 Hz)

Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions
113 dB(C) SPL

Max. short term SPL with music material
at 2.3 m, in typical listening conditions (pair)
100 dB(C) SPL (full range)
107 dB(C) SPL (with subwoofer)

Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single/pair)
93 / 99 dB(C) SPL (full range)
94 / 100 dB(C) SPL (with subwoofer)
Electronics
Bass / Midrange / Treble Class AB amplifiers, cont. (peak) output power*
150 W (210 W) / 70 W (90 W) / 70 W (90 W)

Controller design
Analog, active

Crossover frequencies
650 Hz / 2 kHz

Crossover slope
24 dB/oct, 4th order

Equalization - Bass
0, −2.5, −5, −7.5 dB

Equalization - Low Mid
0, −1.5, −3, −4.5 dB

Equalization - Treble
+1, 0, −1, −2 dB

Protection circuitry
Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters

Infrasonic filter - frequency; slope
15 Hz; 6 dB/oct

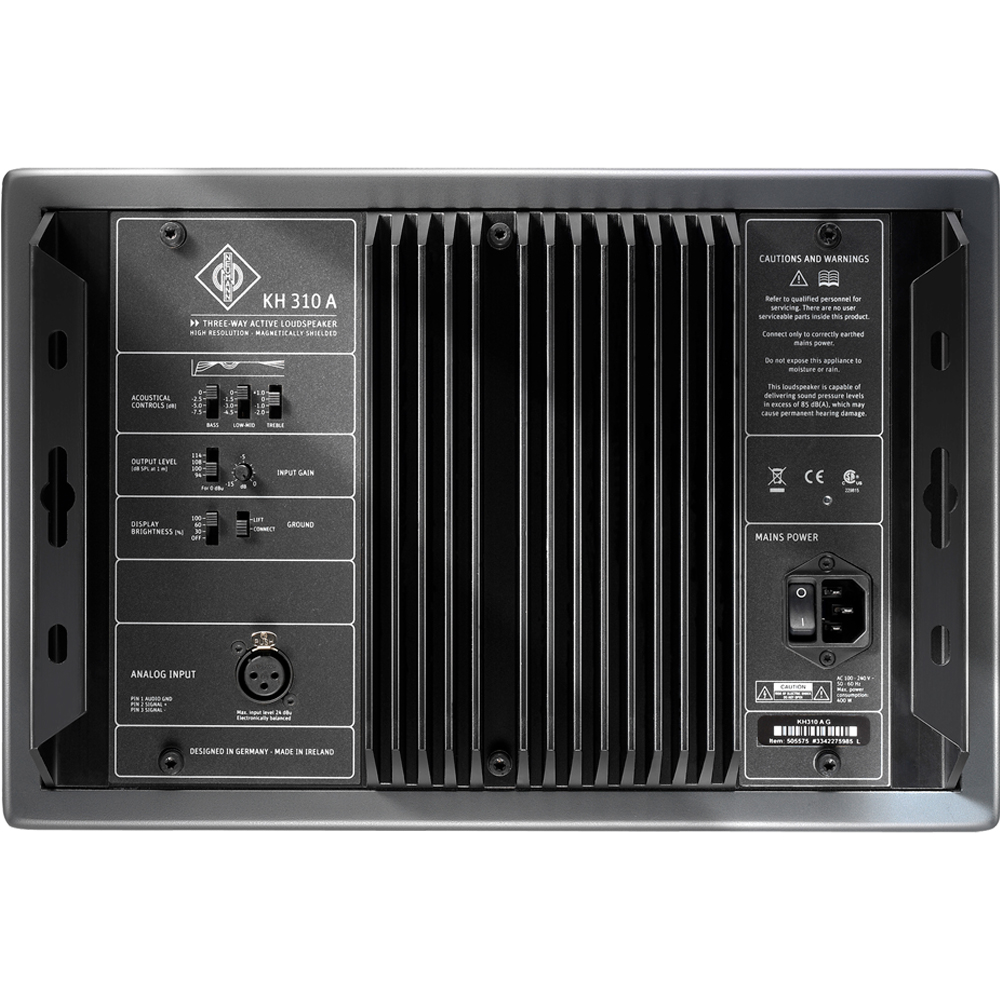

Input
XLR, analog electronically balanced

Impedance, electrically balanced
> 13k Ohms

Input gain control (sensitivity)
0 dB to −15 dB

Output level control
94, 100, 108, 114 dB SPL

CMRR
> 56 dB @ 100 - 15 kHz

Max. input level
+24 dBu

Displays and indicators - power on
Neumann logo “White”

Displays and indicators - limit / clip
Neumann logo “Red”

Mains Power Supply, voltage; frequency
100-240 V~; 50/60 Hz

Power consumption - idle
24 W

Power consumption - full output
300 W
Mechanics
Cabinet surface finish, colour
Painted wood and polyurethane, metallic anthracite (RAL 7021). Aluminum electronics panel, Black.

Operating conditions
+10° C to +40° C (+50° F to +104° F), <90% RH, non-condensing

Transport/storage condition
−25° C to +70° C (−13° F to 158° F), <90% RH, non-condensing

Drivers
Magnetically shielded

Woofer
210 mm (8 1/4")

Midrange
75 mm (3")

Tweeter
25 mm (1")

Mounting points
2 x M8 on side panels, depth from outside of cabinet 25 mm (1”).
Rear panel screws for attaching LH 41 base plate.
Rear panel bracket.

Product dimensions
(height x width x depth), mm (inches) 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2")

Product weight
13.0 kg (28 lbs 11 oz)

Included
1x KH 310 A
3x Main cables (European, UK and US version)
4x Self-adhesive feet
1x Operating manual
1x Supplement "Getting Started Quickly"
