Neumann Studio Monitor - Single

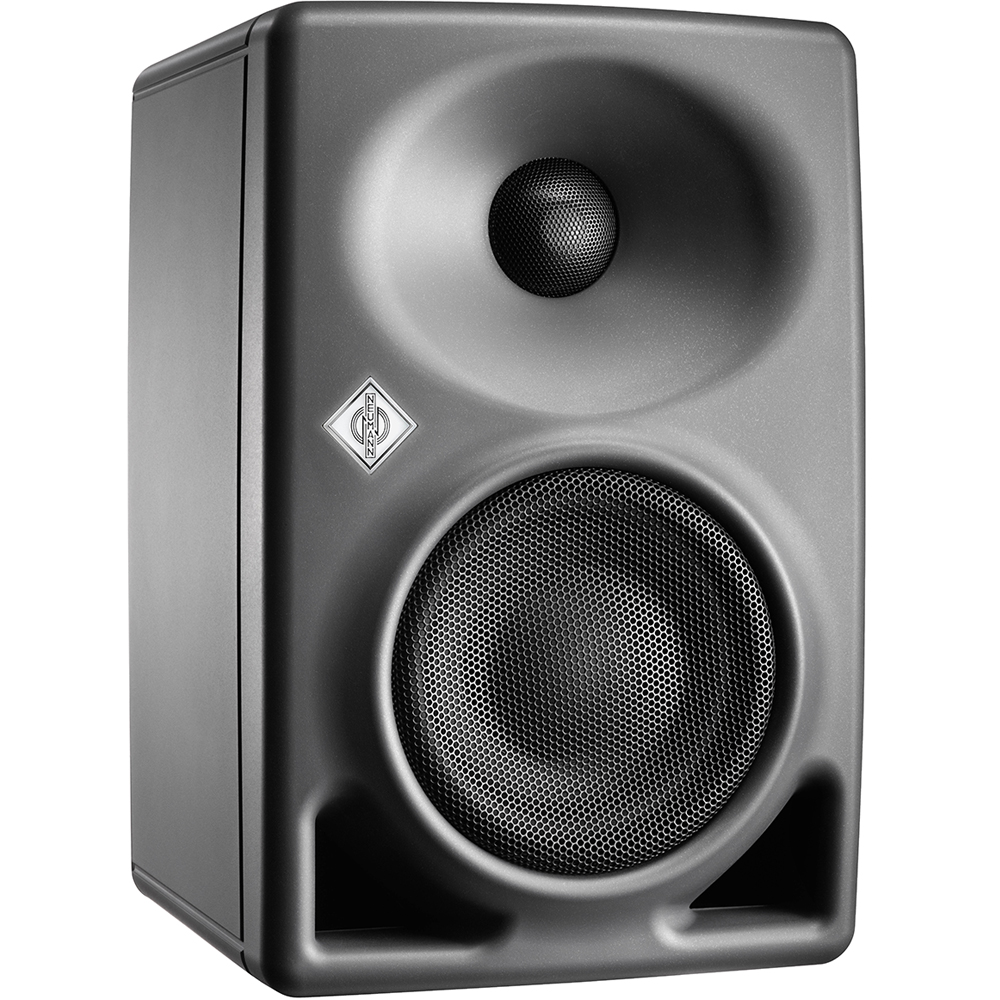

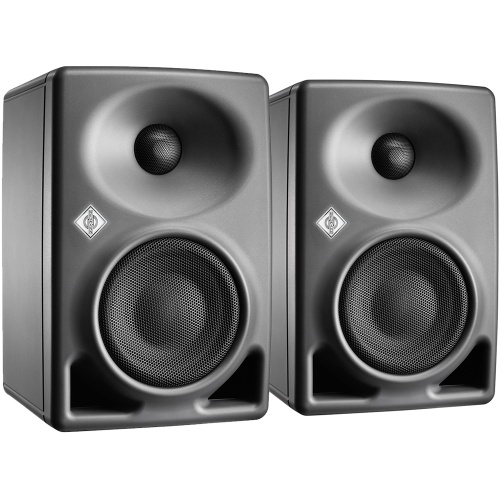

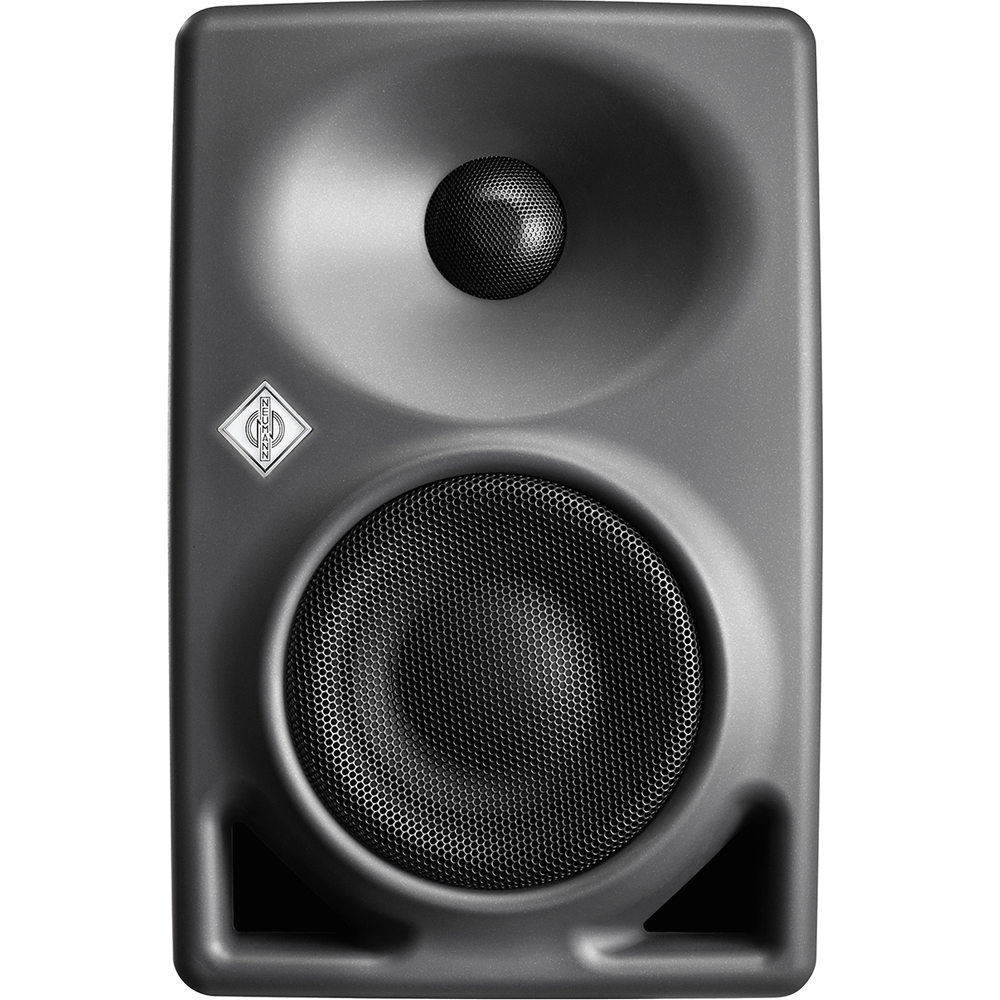

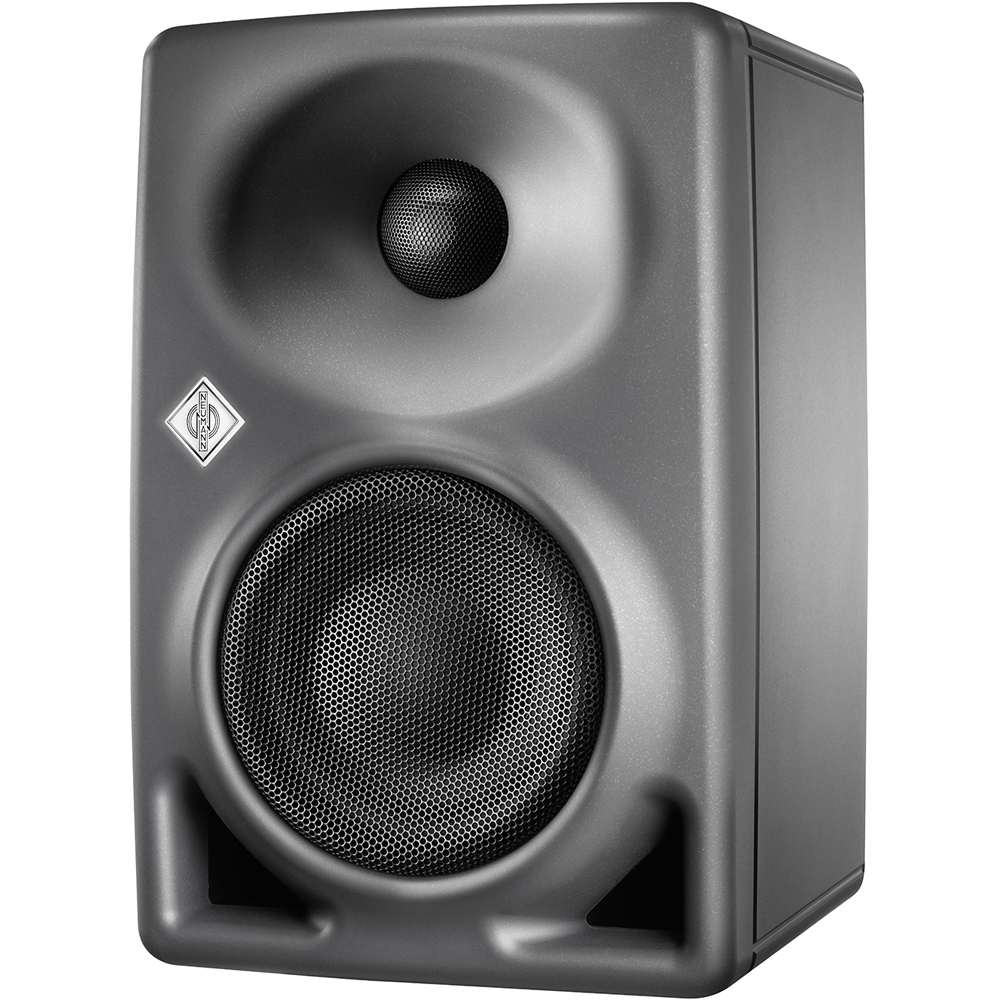

The Neumann KH 80 DSP two-way active bi-amplified monitor features a DSP engine with network control, a Mathematically Modeled Dispersion™ Waveguide (MMD™), an analogue input and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations.

The KH 80 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.

The KH 80 DSP is designed for use as a near-field monitor, as a front loudspeaker in small multi-channel systems, or as a rear loudspeaker in a compact multi-channel systems. It can be used in project and music studios, broadcast centres, OB vans, and post production studios for tracking, mixing, and mastering. It is also well suited for use in domestic environments.

  • Powerful alloy fabric tweeter dome
  • Low-distortion high-frequency reproduction
  • Elliptical Mathematically Modeled Dispersion™ (MMD™) waveguide
  • Wide horizontal and narrow vertical dispersion
  • Smooth off-axis response
  • More forgiving of diverse acoustical environments
  • Long throw composite sandwich cone bass driver
  • Damping of break-up modes and low distortion at high sound levels
  • Linear pistonic motor gives a very low harmonic distortion even at high excursions
  • Two-colour + dimmable Neumann logo
  • Compact polycarbonate composite cabinet
  • No standing wave resonances
  • Fastest bass transient response
  • Reduced intermodulation distortion in midrange
  • Large front panel ports
  • Reduced bass compression
  • One-piece front panel with no discontinuities
  • Reduced diffraction and smoother frequency response
  • Powerful highly efficient amplifiers with large headroom
  • Improved transient response
  • Low heat dissipation
  • Independent thermo limiters for woofer and tweeter
  • Woofer soft clip and excursion limiters
  • Production consistency due to individual alignment in final test
  • Any one KH 80 DSP unit is “pair-matched” to any other KH 80 DSP unit
  • 4-position low-mid acoustical control
  • Fast acoustical set up in mobile applications
  • 8 x Precision Alignment acoustical controls accessible via control network
  • Accurate and flexible alignment of the loudspeaker in the room and within systems
  • Lipsync delay (0 … 70 ms)
  • Align audio and video signals up to 1.75 frames at 50 Hz or 2.1 frames at 60 Hz
  • Time-of-flight delay (0 … 70 ms)
  • Compensate for listening distance differences up to 24 m (79 ft)
  • Linear phase crossover, with bypass
  • Wide range input gain and output level controls
  • Easier interfacing with signal sources
  • Control network used standard Ethernet components
  • Setup, alignment and operation functions via the Neuman.Control software (available mid 2018)
  • Completely symmetrical internal signal chain
  • Minimizes noises caused by external electromagnetic interference
  • Double insulated electrical design
  • Ground loops are impossible
  • Universal switched-mode power supply (100 … 240 V)
  • One version works in any country and robust to poor quality mains supply
  • Auto Standby mode

Frequency response
53 Hz - 22 kHz

88 - 93 dB


Bass output
120 W peak (90 W)

Treble output
70 W peak (50 W)

EQ via Neumann.Control software
8 x full parametric IIR + low / high shelf global balance

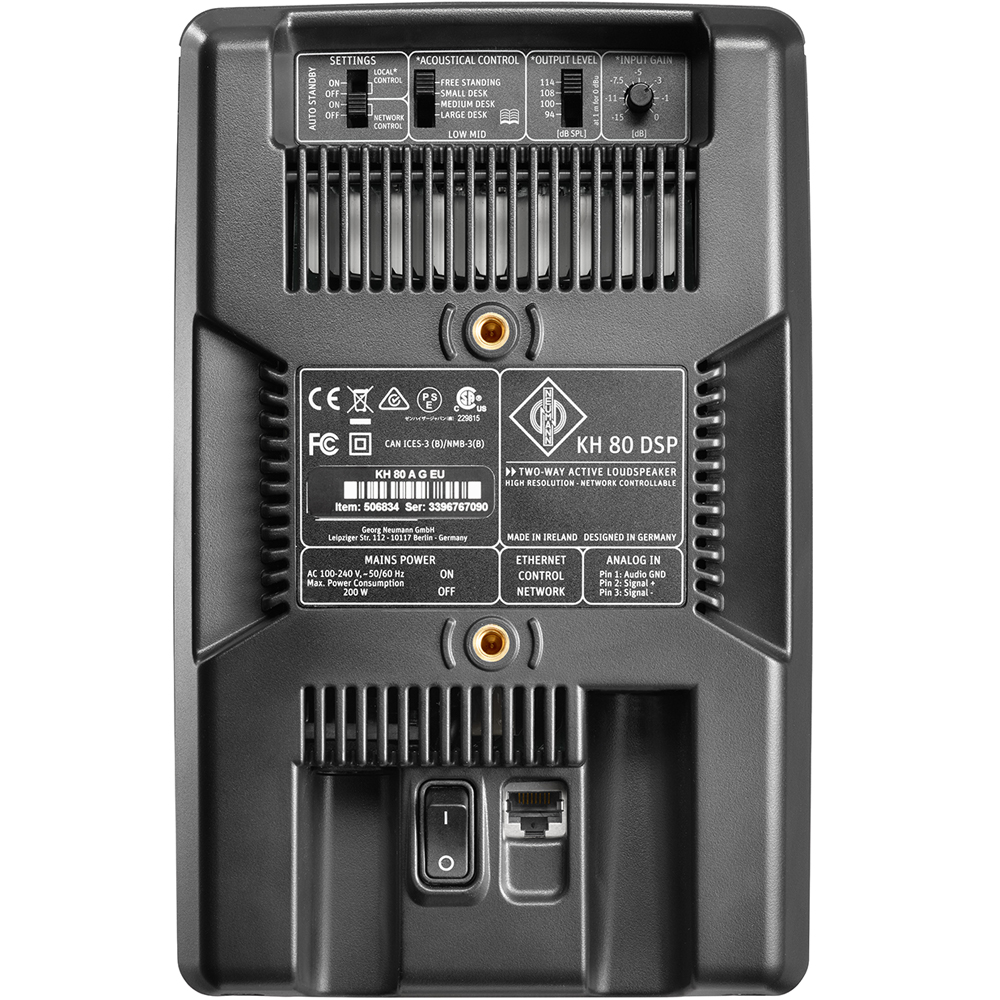

XLR / 6.3 mm (¼”) Jack, analog electronically balanced

Digital converter
24-bit / 48kHz

90 mins default (can be changed in software)

Painted composite polycarbonate
Dimensions (H x W x D)
233 x 154 x 194 mm
1x KH 80 DSP A
1x Mains cable
(European, UK, US, or CCC and KC)
4x Self-adhesive feet
1x Getting Started Quickly guide
1x Safety booklet
