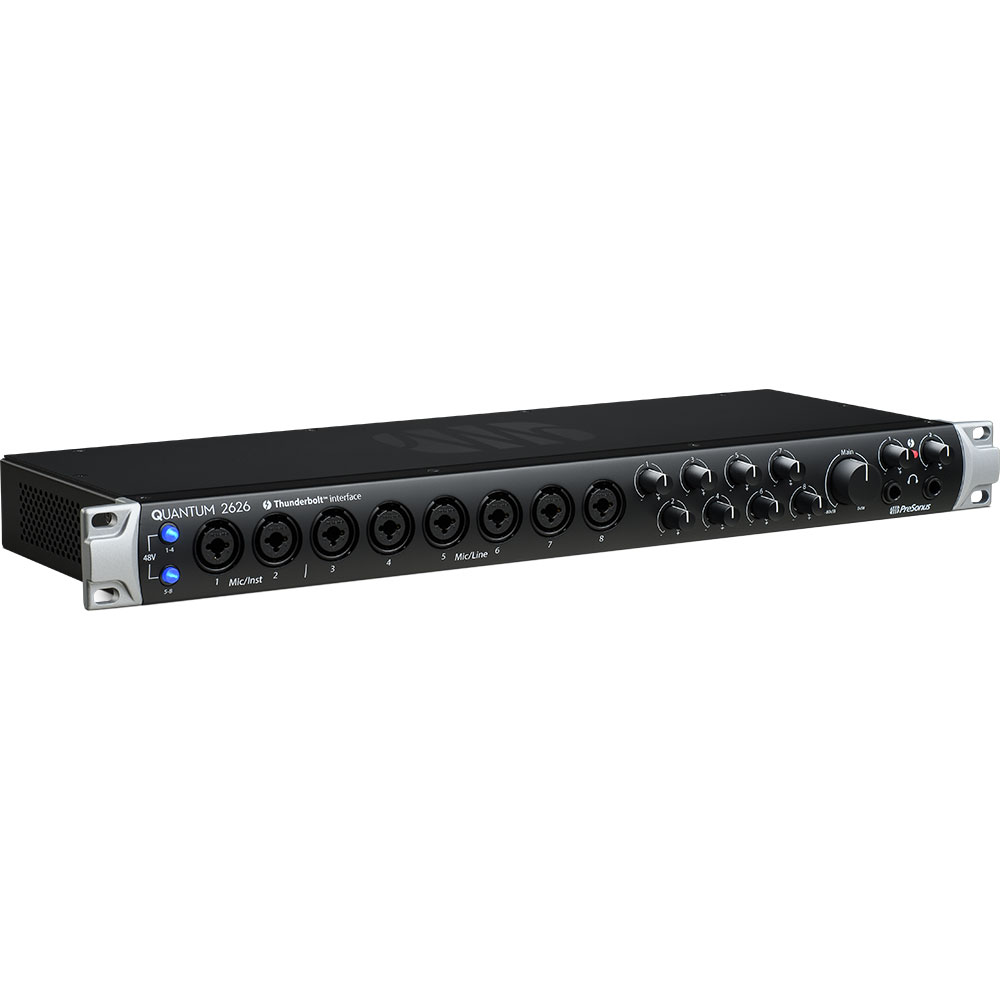

Presonus Quantum 2626 Thunderbolt 3 Audio Interface

£500.00 £539.00 Save:  £39.00 (7%)
Earn 500 Loyalty Points.
In stock, immediate despatch

In stock, immediate despatch

+
Order soon for delivery on using our express service

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

  • The fastest Thunderbolt 3 audio interface around, with round-trip latency of less than 1 ms
  • 8 front-mounted ultra-transparent XMAX analog mic preamps
  • High-definition 24-bit A/D/A conversion up to 192 kHz sampling rate
  • 2 direct outputs with dedicated line-level returns for inserting output gear
  • Studio One® Artist and Studio Magic Plug-in Suite included
Presonus

Product Details

Product:

Presonus Quantum 2626 Thunderbolt 3 Audio Interface

SKU: DDJ4009

Condition:  Brand New
Warranty:  1 Year Warranty
Delivery:  Free Delivery

Presonus 26x26 Thunderbolt 3 Audio Interface

Record and monitor through your favorite plug-ins inside your DAW with the blazing fast speed only PreSonus Quantum interfaces can deliver. The Quantum 2626 takes advantage of the jaw-dropping speed of Thunderbolt 3 to achieve a barely-measurable round-trip latency of less than 1 ms. Superb high-definition digital conversion and eight ultra-transparent analog XMAX mic preamps ensure your audio always sounds its best. Insert your favorite outboard gear with two direct preamp outputs and dedicated line-level returns. Expand your system up to 26 simultaneous inputs and outputs using ADAT Optical. Streamline your recording process and make better music, faster with the Quantum 2626.

The world’s fastest interface, with a round-trip latency of less than 1 ms, using the Thunderbolt™ 3 bus; record and monitor through your favorite plug-ins in real time at up to 24-bit/192 kHz; 8 front-mounted, pristine XMAX analog mic preamps; 2 direct preamp outputs and 2 line returns for outboard effects; 8 balanced DC coupled analog outputs can provide control voltage to external analog equipment, using a DAW plug-in; up to 26 simultaneously inputs and outputs when expanded via ADAT Optical.

  • The fastest Thunderbolt 3 audio interface around, with round-trip latency of less than 1 ms
  • 8 front-mounted ultra-transparent XMAX analog mic preamps
  • High-definition 24-bit A/D/A conversion up to 192 kHz sampling rate
  • 2 direct outputs with dedicated line-level returns for inserting output gear
  • Up to 26-in/26-out when expanded via dual ADAT Optical
  • 2 combo mic/instrument inputs and 6 mic/line inputs
  • ¼” TRS Left and Right main outputs
  • 8 ¼” TRS line outputs, DC-coupled
  • 2 ¼” headphone outputs with dedicated volume
  • Dual ADAT Optical, S/PDIF, MIDI, and BNC word clock I/O
  • Studio One® Artist and Studio Magic Plug-in Suite included
Mic Preamp
Type XLR Female (via Combo), Balanced
Maximum Input Level +10 dBu (Balanced, min. gain)
Gain Control Range 60 dB
Frequency Response 20 Hz to 20 kHz (±0.15 dB, unity gain, 48 kHz)
Dynamic Range > 110 dB (A-wtd, min. gain)
Total Harmonic Distortion < 0.005% (1 kHz, min. gain)
EIN < -131 dBu (max gain, 40Ω, 22 kHz BW, A-wtd)
Input Impedance 1.6 kΩ
Phantom Power +48V, > 8 mA per inpu
Instrument Input
Type ¼” TS Female (via Combo), Unbalanced
Maximum Input Level +15 dBu (Unbalanced, min. gain)
Gain Control Range 60 dB
Frequency Response 20 Hz to 20 kHz (±0.2 dB, unity gain, 48 kHz)
Dynamic Range > 106 dB (A-wtd, min. gain)
Total Harmonic Distortion < 0.005% (1kHz, min. gain)
Input Impedance > 1 MΩ
Line Input
Type ¼” TRS Female (via Combo), Balanced
Maximum Input Level + 18 dBu (Balanced, min. gain)
Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range > 118 dB (A-wtd, min. gain)
Total Harmonic Distortion < 0.005% (1 kHz, min. gain)
Input Impedance 10 kΩ
Line Output
Type ¼” TRS Female, impedance balanced, DC Coupled (Line
Maximum Output Level +18 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range > 118 dB (A-wtd)
Total Harmonic Distortion < 0.0035% (1 kHz, +4 dBu)
Output Impedance 51Ω
Main Output
Type ¼” TRS Female, impedance balanced
Maximum Output Level +18 dBu (Balanced)
Frequency Response 20 Hz to 20 kHz (±0.05 dB, unity gain, 48 kHz)
Dynamic Range > 118 dB (A-wtd)
Total Harmonic Distortion < 0.0035% (1 kHz, +4 dBu)
Output Impedance 51Ω
Headphone Output
Type ¼” TRS Female, Stereo, Unbalanced, x2
Maximum Output Level 175 mW/channel (56Ω load)
Frequency Response 20 Hz to 20 kHz (±0.5 dB, 48 kHz)
Dynamic Range > 110 dB (A-wtd)
Total Harmonic Distortion < 0.03% (1 kHz)
Headphone Impedance (working range) 16Ω to 300Ω
Crosstalk
Input to Input < -110 dB
Output to Output < -115 dB
Input to Output < -120 dB
Signal Level LED
Clip -0.5 dBFS
Signal -50 dBFS
Digital Audio
Connection Type Thunderbolt 3
ADC Dynamic Range 115 dB (A-wtd)
DAC Dynamic Range 115 dB (A-wtd)
Bit Depth 24 bits
Internally Supported Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Clock
Jitter < 70 ps RMS (20 Hz – 20 kHz)
Jitter Attenuation > 60 dB (1 ns in => 1 ps out)
Power

12 VDC, 5A, external power supply

Physical
Height 1.75" (44.45 mm)
Depth 7" (177.8 mm)
Width 19" (482.6 mm)
Weight 6 lbs (2.72 kg)
