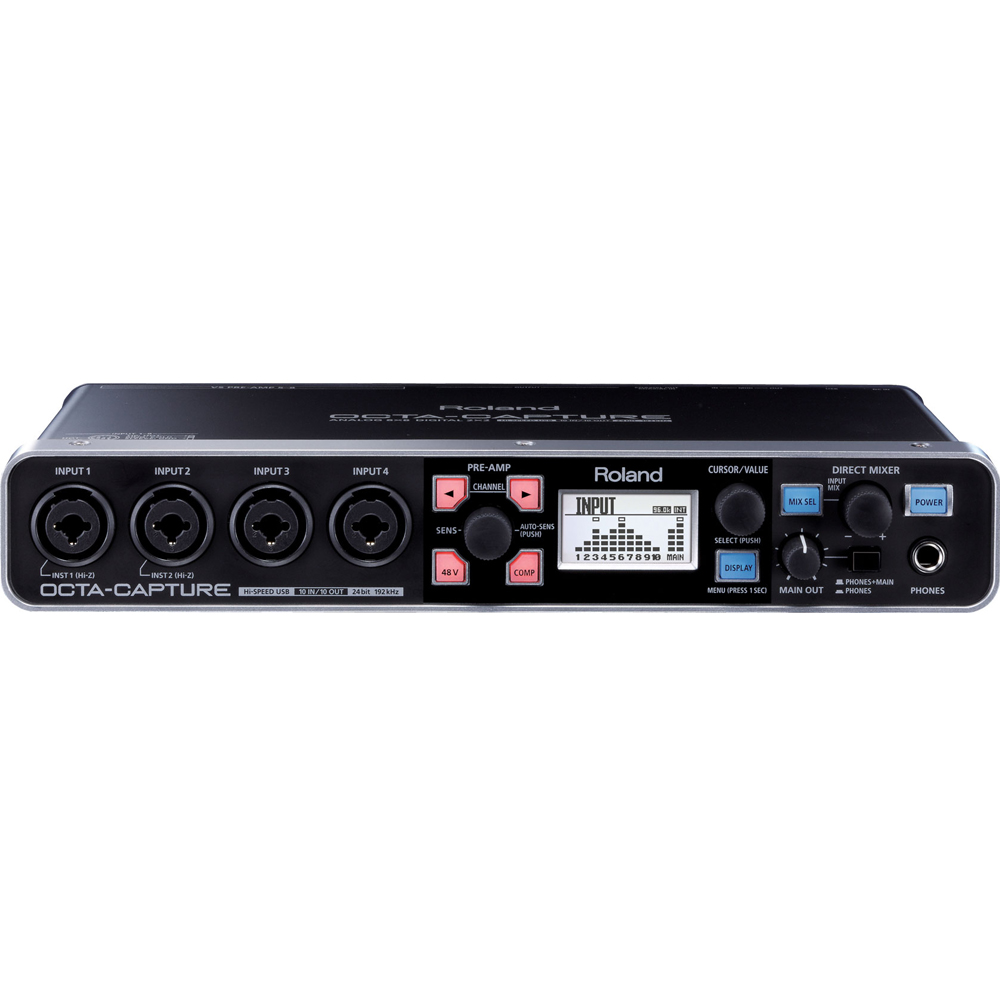

Roland UA-1010 Octa-Capture 10 I/O USB Audio Interface

Roland UA-1010 Octa-Capture 10 I/O USB Audio Interface
 Roland UA-1010 Octa-Capture 10 I/O USB Audio InterfaceRoland UA-1010 Octa-Capture 10 I/O USB Audio Interface
£380.00 £439.00
Save:  £59.00 (13%)
Earn 380 Loyalty Points.
+


Availability:



Estimated restock is 8-11 days

Order soonfor delivery on using our express service
Need advice? Give us a call01274 394 730

Questions about this product?

Get in touch. Our experts are ready to help with anything you need to know!

Seen a better price elsewhere?

Let us know and we’ll do our best to match it. Buy safe through an official Authorised UK Dealer.

spread the cost with finance

Apply for finance on eligible products by clicking the Duologi button, or call us to discuss the options.

Price Match

If you have seen a better price but would rather buy from a trusted UK based authorised dealer, then please get in touch and we will do our best to match or beat any genuine price quote.

The following rules apply

  1. The dealer must be a UK mainland authorised dealer of the brand in question
  2. The item/s must be brand new, In stock and available for next day delivery
  3. Items cannot be part of a sale

We only match UK based authorised dealers, for that reason we cannot match the following companies

Thomann (Germany)
Bax-Shop (Netherlands)
Kytary (Poland)

  • 10in/10out - 24 bit/192kHz recording resolution
  • USB bus powered
  • Midi in/out
  • 8 premium grade pre-amps
  • Windows and OSX compatible
Warranty:  1 Year
Roland
  • Unrivalled Advice

    Our experts are ready to help. See our feedback:

    Trust Pilot
  • Free Delivery

    Free UK saver delivery on all our products.
    More info

  • No Fuss Returns

    Refund or exchange within 30 days. More info

Secured by Thawte

Roland Octa-Capture, 10 IN - 10 OUT 24-bit USB Audio Interface

Combining ten inputs, ten outputs, and eight VS PREAMPS with transparent 24-bit/192 kHz audio quality, the Roland OCTA-CAPTURE sets a new standard for portable USB 2.0 audio interfaces.

High-level audio production comes easy with this fusion of premium components, Roland-quality engineering, and proprietary preamp and streaming technology. OCTA-CAPTURE is not only the perfect interface for multi-channel computer-based production, but also a great solution for expanding the I/O capability of the V-STUDIO 700 and V-STUDIO 100. Brimming with quality and performance seldom seen in its price range, OCTA-CAPTURE is the next-generation audio interface.

  • Eight premium mic preamps built in (VS PREAMP)
  • AUTO-SENS function intelligently sets optimal input levels for all preamps
  • Extremely stable low-latency VS STREAMING driver
  • Four independent software-controlled Direct Mixers for creating custom monitor mixes
  • Supports all major DAW platforms on Mac or PC
  • Rackmount ears included
Sampling Frequency = 96 kHz, 48 kHz, 44.1 kHz Recording: 10 channels
Playback: 10 channels
Sampling Frequency = 192 kHz Recording: 4 channels
Playback: 4 channels
Connectors Input Jacks 1—8 (XLR type / 1/4 inch TRS phone type)
XLR type (balanced / phantom power +48 V)
1/4 inch TRS phone type (balanced)
Coaxial Input Connector
Coaxial Output Connector
Headphones Jack (Stereo 1/4 inch phone type)
Output Jack 1—8 (1/4 inch TRS phone type (balanced))
MIDI Connectors (In, Out)
USB Connector
Power supply DC 9V (AC Adapter)
Current draw 145 A
Display 128 x 64 dots Graphic LCD (backlit LCD)
Dynamic range AD block INPUT 1—8: 104 dB typ. (GAIN: min.)
DA block OUTPUT 1—8: 113 dB typ.
Main out -87 dBu typ. (GAIN:min., INPUT 1 — 2 terminated with 600 ohms , IHF-A)
* Internal Direct Monitor Mixer setting
Stereo Link: ON, Input channel fader: Unity
Frequency response

192.0 kHz
20 Hz to 90 kHz (+0/-8 dB)
20 Hz to 60 kHz (+0/-2 dB)

96.0 kHz
20 Hz to 40 kHz (+0/-2 dB)

48.0 kHz
20 Hz to 22 kHz (+0/-2 dB)

44.1 kHz
20 Hz to 20 kHz (+0/-2 dB)

Output Impedance OUTPUT 1—81.8 k ohms (balanced)
PHONES47 ohms
Input Impedance Input Jack 1—6 (XLR type)5 k ohms (balanced)
Input Jack 7—8 (XLR type)10 k ohms (balanced)
Input Jack 1—8 (1/4 inch TRS phone type)17 k ohms (balanced)
Headroom 16 dBNominal Output Level
Nominal Output Level OUTPUT 1—8+0 dBu (balanced)
Nominal Input Level Input Jack 1—6 (XLR type)-56 to -6 dBu
Input Jack 7—8 (XLR type)-50 to +0 dBu
Input Jack 1—8 (1/4 inch TRS phone type)-46 to +4 dBu
Sampling Frequency FREQUENCYAD/DA Conversion44.1/48/96/192 kHz
DIGITAL (IN/OUT)44.1/48/96 kHz
Signal Processing PC interface 24 bits
AD/DA Conversion 24 bits
Internal 40 bits
Accessories Rack Mount Angle x 2
Owner's Manual
Driver CD-ROM
AC Adaptor
USB cable
Weight 1.3 kg
Dimensions (W x D x H) 284 x 158 x 50 mm
