Yamaha MG10XU 10 Channel Mixer With FX, Includes Cubase AI Software

£176.00 £234.00 Save:  £58.00 (25%)
Earn 176 Loyalty Points.
In stock, immediate despatch

In stock, immediate despatch

+
Order soon for delivery on using our express service

Condition:  Brand New
Warranty:  2 Year Warranty
Delivery:  Free Delivery

  • 10-Channel Mixing Console
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter

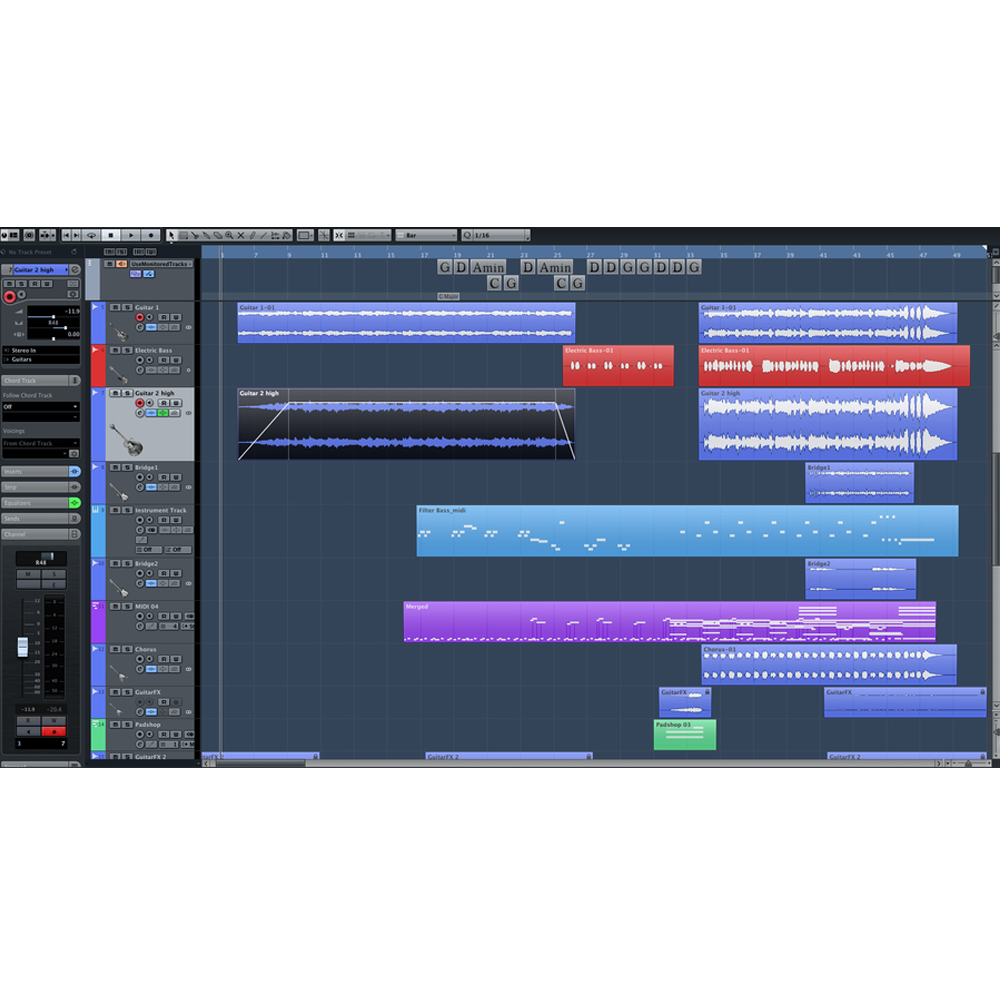

  • Includes Cubase AI DAW software download version
  • +48V phantom power
Yamaha

Product Details

Product:

Yamaha MG10XU 10 Channel Mixer With FX, Includes Cubase AI Software

SKU: DDJ2629

Condition:  Brand New
Warranty:  2 Year Warranty
Delivery:  Free Delivery

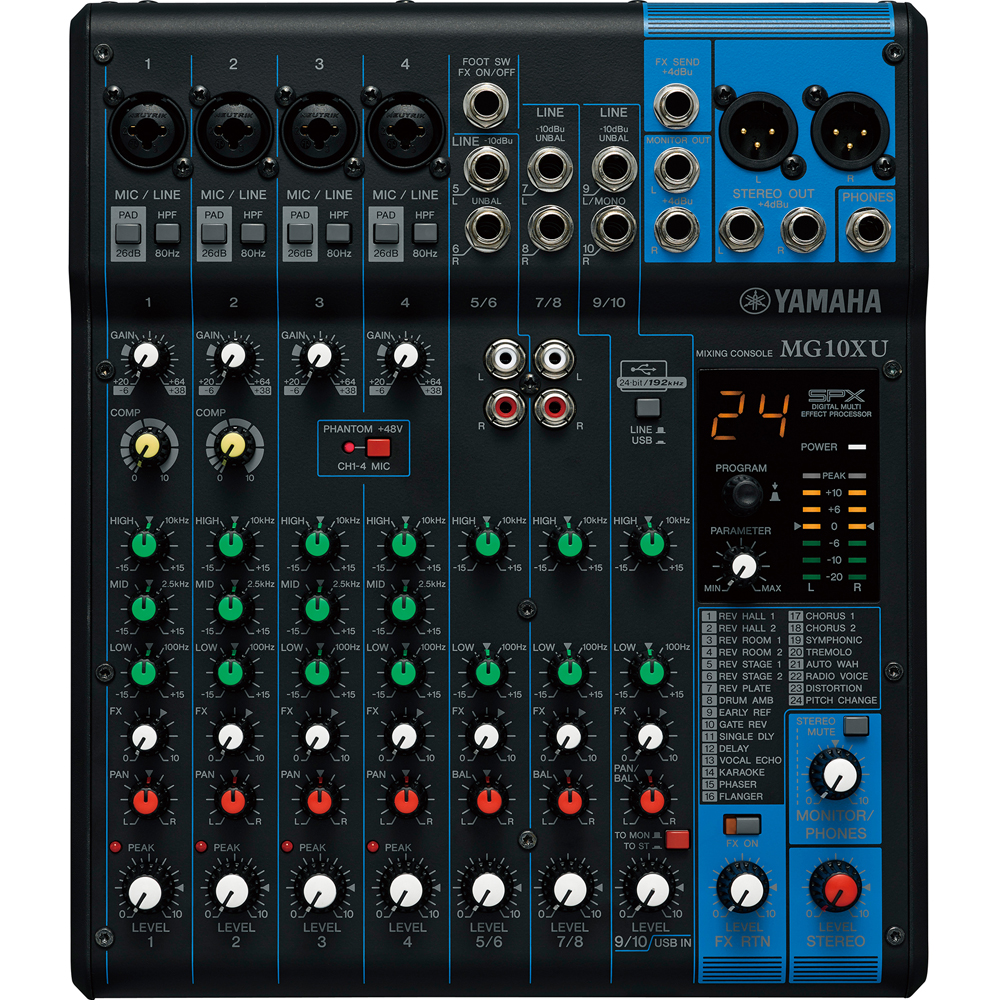

Yamaha 10 Channel Mixer With Effects, MG10XU

Completely redesigned for the 3rd Generation of MG mixers, the compact MG10XU features 4 class leading Class A D-PRE microphone preamps, Yamaha's acclaimed SPX effects and a stereo USB audio interface.

For a more precise control and enhancement of your sound, XU models of the MG Series come equipped with a suite of Yamaha's renowned SPX effects. Featuring high-resolution Chorus, Flanger, Distortions, Reverb and Delay, all with editable parameters, these are the same multieffects processors used on Yamaha's high-end mixing consoles, giving you the tools you need to elevate your mixes to a higher plane.

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivalled catalog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design of these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivalled in its class.

  • 10-Channel Mixing Console
  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • D-PRE mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit / 192kHz 2in / 2out USB Audio functions
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Includes Cubase AI DAW software download version
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
On-board processors SPX algorithm: 24 programs
Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono[MIC/LINE]    4
Stereo[LINE] 3
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1
Bus Stereo: 1, AUX[FX]: 1
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk -83 dB
Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption 22.9 W
Dimensions W 244 mm (9.6")
H 71 mm (2.8")
D 294 mm (11.6")
Net weight 2.1 kg (4.63 lbs.)
Accessories AC Adaptor
Owner’s Manual
Cubase AI Download Information
Technical Specifications
Operating Temperature 0 to +40˚C
