Yamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI Software

Yamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI Software
Demoin store
Yamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI SoftwareYamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI SoftwareYamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI SoftwareYamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI Software

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • Discrete Class-A mic preamps
  • Switchable phantom power & PAD switch
  • 1-knob compressors
  • LED level metering
  • Built-in SPX digital effects

£367.20 £399.00
Earn 367 Loyalty Points.
+
AVAILABILITY:
Estimated restock 01/07/2024

Estimated restock 01/07/2024

product timer
Order soon for delivery
on using our express service
Finance this product
Finance
Yamaha
payment for product

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • Discrete Class-A mic preamps
  • Switchable phantom power & PAD switch
  • 1-knob compressors
  • LED level metering
  • Built-in SPX digital effects


Product Details

Product: Yamaha MG10XUF 10 Channel Mixer With FX, Includes Cubase AI Software

SKU: DDJ2629-1

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

Yamaha 10 Channel Mixer With Effects, MG10XUF

The Yamaha MG10XUF Analog Mixer builds upon the success of the renowned MG10XU and replaces the master channel control knobs with faders. The MG10XUF is designed to provide an exceptionally transparent sound and an intuitive, hands-on mixing experience.

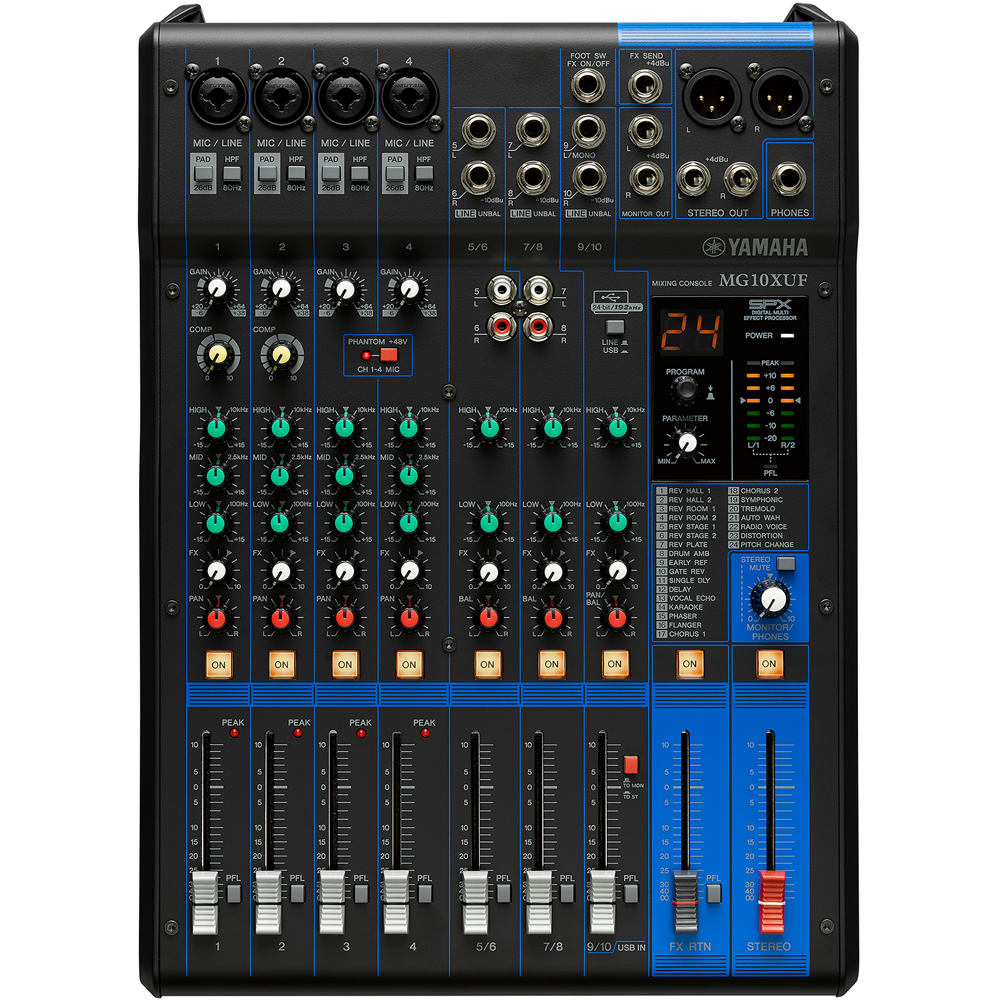

The MG10XUF is equipped with 10 input channels, including 4 microphone channels with D-PRE preamps, along with independent 3-band EQs, 1-knob compressors, pad switches and switchable +48V phantom power.

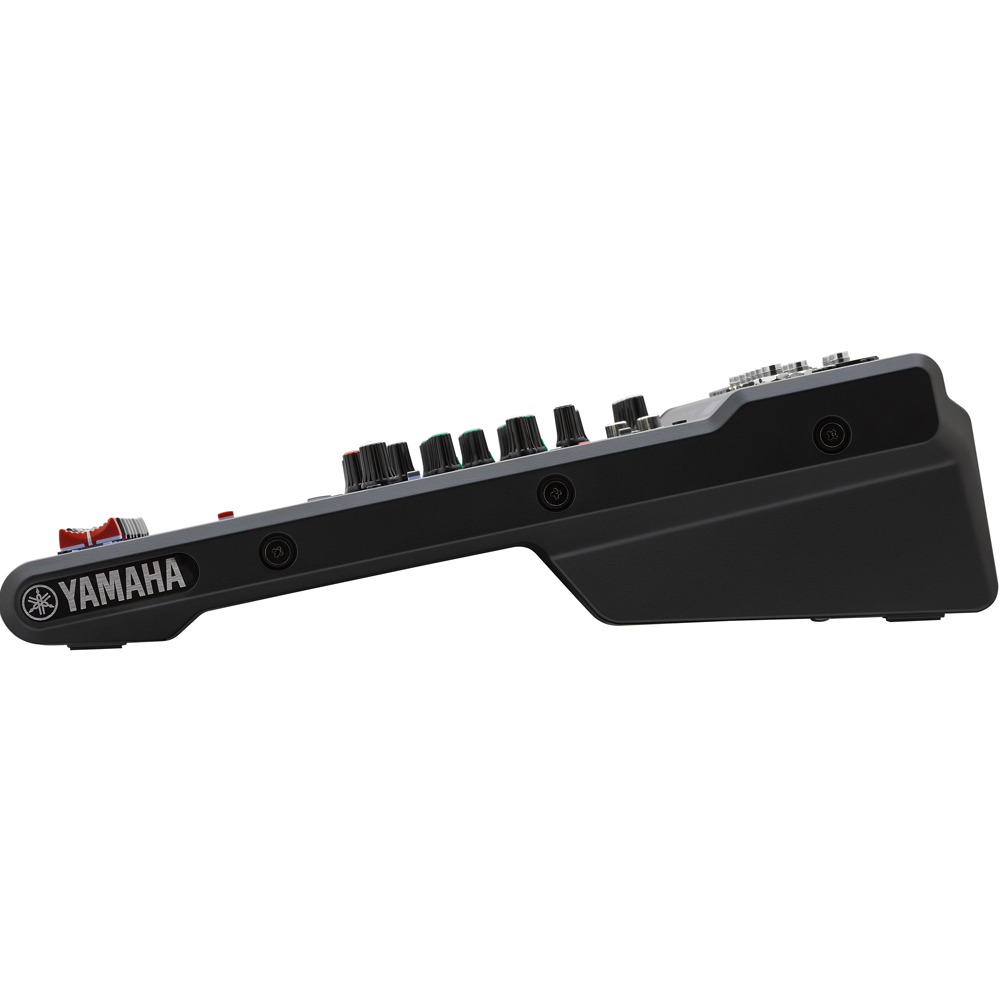

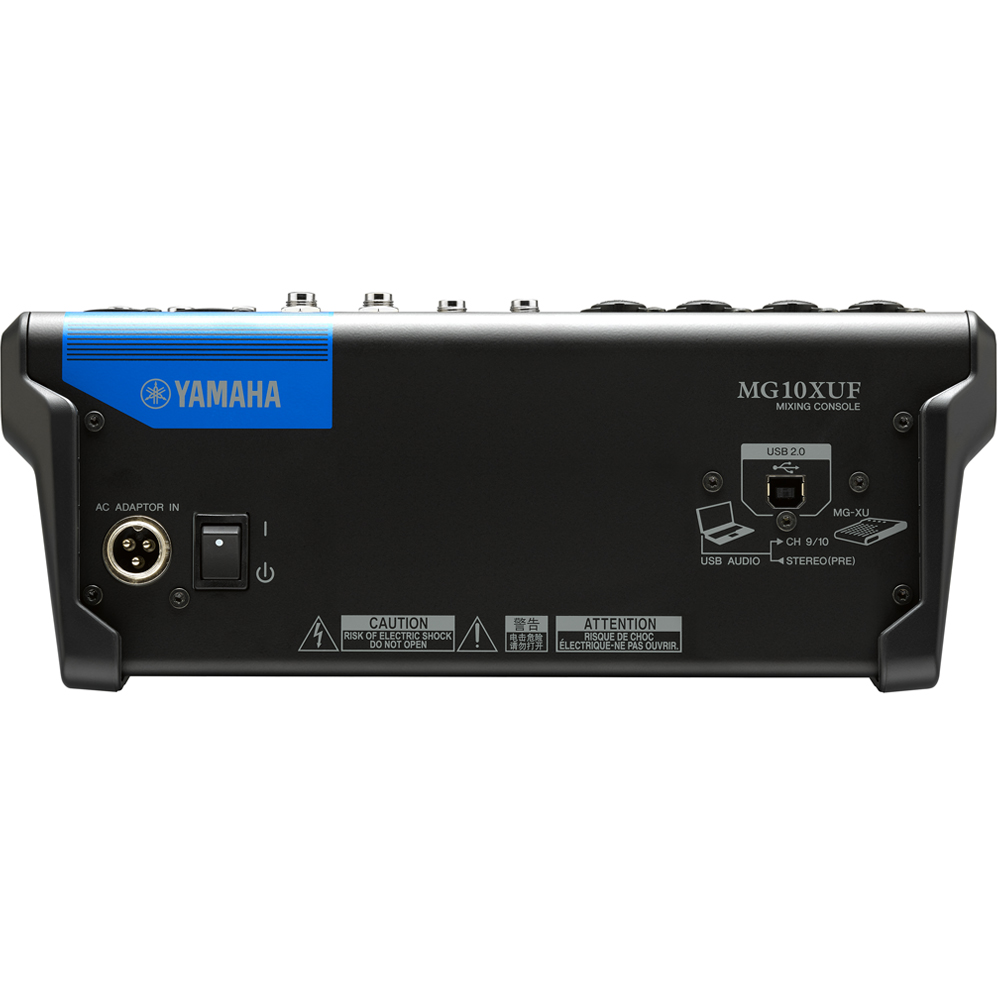

This Yamaha analog mixing console has an intuitive layout and a heavy-duty metal chassis, capable of withstanding demanding conditions of both live performance and studio environments. The Yamaha MG10XUF features a built-in USB audio interface which enables you to record directly to your computer and playback 24-bit/192kHz audio.

The included version of Cubase AI DAW software allows you to record and edit high-resolution tracks.

  • Discrete Class-A mic preamps
  • High quality sound op-amp
  • Switchable phantom power & PAD switch
  • 1-knob compressors
  • AUX input
  • EQ & high-pass filters
  • Variety of input & output connectors
  • LED level metering
  • Built-in SPX digital effects
  • Metal chassis
  • Includes Cubase AI downloadable software
On-board processors SPX algorithm: 24 programs
Phantom power +48 V
Digital I/O USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Input Channels Mono[MIC/LINE]    4
Stereo[LINE] 3
Output Channels STEREO OUT 2
MONITOR OUT 1
PHONES 1
AUX SEND 1
Bus Stereo: 1, AUX[FX]: 1
PAD 26 dB (Mono)
HPF 80 Hz, 12 dB/oct (Mono)
COMP 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
EQ HIGH Gain +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID Gain +15 dB/-15 dB, Frequency: 2.5kHz peaking
EQ LOW Gain +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total harmonic distortion 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency response +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Equivalent input noise -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
Residual output noise -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk -83 dB
Power requirements PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power consumption 22.9 W
Dimensions (W x D x H) 244 x 294 x 71 mm
Net weight 2.1 kg (4.63 lbs.)
Accessories AC Adaptor
Owner’s Manual
Cubase AI Download Information
Technical Specifications
Operating Temperature 0 to +40˚C
