Korg MS-20 Mini Analogue Synthesizer

Korg MS-20 Mini Analogue Synthesizer
Zoom  Zoom
Korg MS-20 Mini Analogue SynthesizerKorg MS-20 Mini Analogue SynthesizerKorg MS-20 Mini Analogue SynthesizerKorg MS-20 Mini Analogue SynthesizerKorg MS-20 Mini Analogue Synthesizer

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • Replicates every detail of the original, down to the packaging & manual
  • External signal processor
  • MIDI In and USB connection
  • Downloadable patch book to show you how to create a range of new sounds
  • Amazing bit of kit for the studio to get those old skool sounds!
£495.00 £679.00
Earn 495 Loyalty Points.
+
AVAILABILITY:
Estimated restock 15/11/2024

Estimated restock 15/11/2024

product timer
Order soon for delivery
on using our express service
Finance this product
Finance
Korg
payment for product

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

  • Replicates every detail of the original, down to the packaging & manual
  • External signal processor
  • MIDI In and USB connection
  • Downloadable patch book to show you how to create a range of new sounds
  • Amazing bit of kit for the studio to get those old skool sounds!

Product Details

Product: Korg MS-20 Mini Analogue Synthesizer

SKU: DDJ1453

Condition  Brand New
Warranty  2 Year Warranty
Delivery  Free Delivery

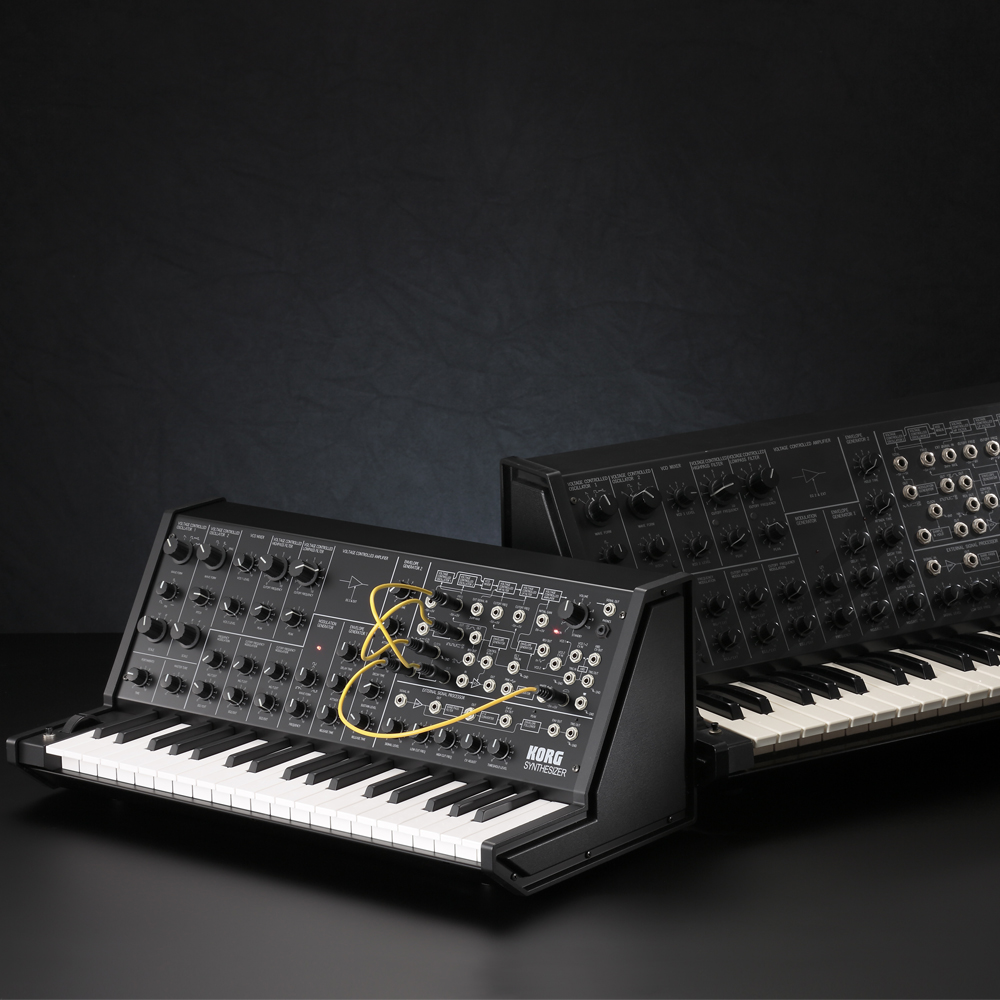

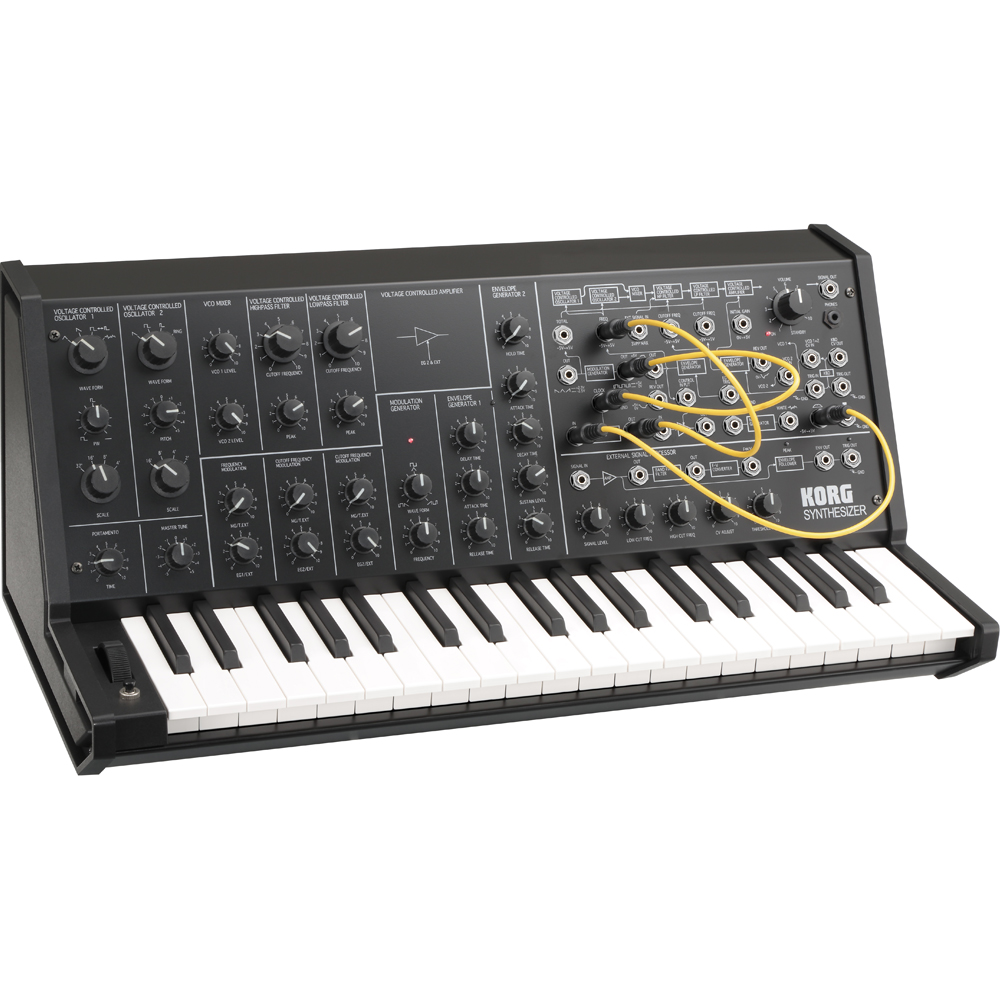

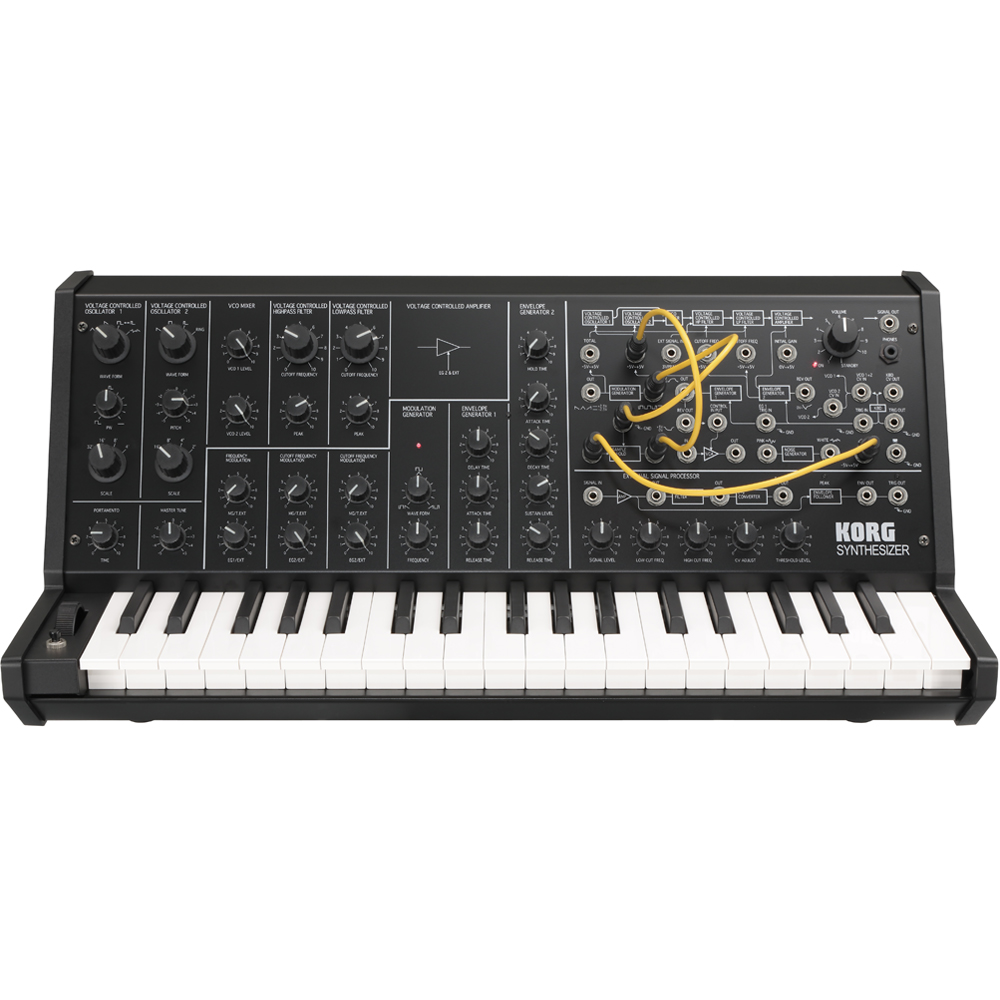

Korg MS-20 Mini

Korg’s MS-20 monophonic synthesizer, first introduced in 1978, is still a coveted instrument to this day, thanks to its thick, robust sound, its powerful, iconic analog filter, and its versatile patching options. Over 300,000 people have enjoyed the distinct MS-20 sounds from the original, from Korg’s MS-20 plug-in synth, or the iMS-20 iPad app. Today, the sounds of the MS-20 have been reborn in hardware, as the MS-20 Mini. The same engineers who developed the original MS-20 have perfectly reproduced its circuitry and fit into a body that’s been shrunk to 86% of the original size, yet retains the distinctive look of the original. The MS-20 mini will amaze you with its absolutely authentic analog synth sound.

  • Overseen by the engineers of the original MS-20, a complete replication of the original analog circuitry
  • 2VCO / 2VCA / 2VCF / 2EG / 1LFO structure
  • Self-oscillating high-pass/low-pass filters with distinctive distortion
  • External signal processor (ESP)
  • Extremely flexible patching system
  • Miniature MS-20 that's 86% of the original size

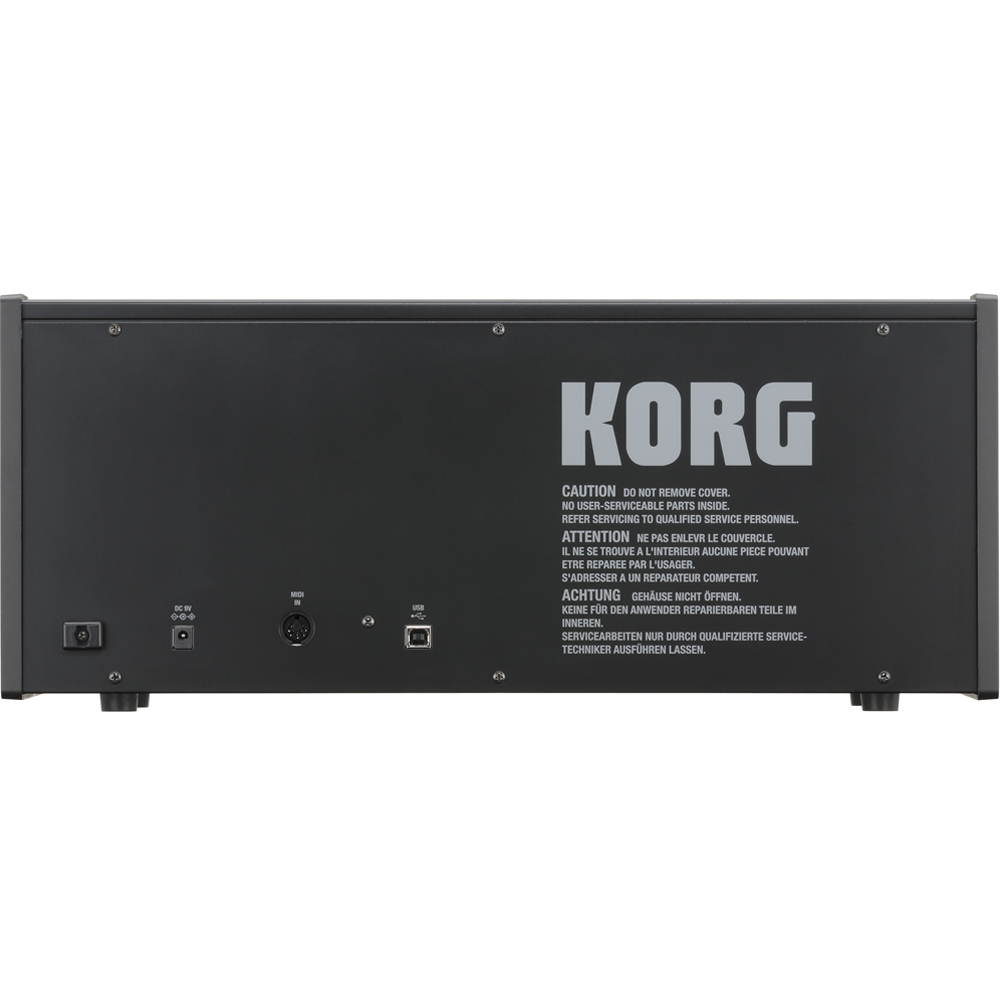

  • MIDI IN and USB connector
  • Replicates every detail of the original, down to the package binding and the included manual
Keyboard C - C 37-notes (3 octaves), mini keyboard designed specifically for the MS-20 mini
Voltage Controlled Oscillator 1 (VCO 1) Scale (32', 16', 8', 4') (6 octaves, +cent, -cent)
Wave form (Triangle, Sawtooth, PW-Square, White Noise) (4 modes)
Pulse width adjust 1:1 - 1:infinity
Voltage Controlled Oscillator 2 (VCO 2) Scale (16', 8', 4', 2') (6 octaves, +cent, -cent)
Wave form (Sawtooth, Square, Pulse, Ring modulator) (4 modes)
Pitch (± 1 octave)
VCO Master Control: Master Tune (+/- 100%) Portamento (max. 10sec)
Frequency modulation intensity by MG/T.EXT (-5V - +5V)
Frequency modulation intensity by EG1/EXT (-5V - 0V)
VCO Mixer VCO 1 Level
VCO 2 Level
Voltage Controlled High Pass Filter (VCF HPF) Cutoff frequency (50Hz - 15,000Hz)
Peak (flat - self OSC)
Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V)
Voltage Controlled Low Pass Filter (VCF LPF) Cutoff frequency (50Hz - 15,000Hz)
Peak (flat - self OSC)
Cutoff frequency modulation intensity by MG/T.EXT (-5V - +5V)
Cutoff frequency modulation intensity by EG2/EXT (-5V - +5V)
Envelope Generator 1 Delay time (10sec)
Attack time (10sec)
Release time (10sec)
Envelope Generator 2 Hold time (20sec)
Attack time (10sec)
Decay time (10sec)
Sustain level (0V - 5V)
Release time (10sec)
Modulation Generator (LFO) Wave form (Positive Sawtooth - Triangle - Negative Sawtooth, Wide Pulse - Square - Narrow Pulse)
Frequency (0.1Hz - 20Hz)
Manual Controller Control wheel (center click)
Momentary switch -->GND
Dimensions 493 ×257 ×208 mm / 19.41 x 10.12 x 8.19 inches
Weight 4.8 kg / 10.58 lbs.
Accessories AC adaptor (9V/1.7A), Patch Cord x 10

UK Deliveries

We offer free delivery on all of our items (UK mainland only) please see details below.

Destination Delivery Times Cost
UK Mainland Economy (only available for orders over £70) 3-5 Working Days* Free of charge
UK Mainland Express Next Day* £4.99
UK Mainland Saturday and Sunday Saturday or Sunday £14.99
Northern Ireland, Scottish Highlands 2 Working Days* £11.99
Scottish Islands, Channel Islands, Isle of Man, Isles of Scilly 2 Working Days* £14.99

*Applies to in stock items. Orders placed after 5pm will be dispatched the following working day, next day delivery does not include Saturday or Sundays. Some services are only available to UK mainland addresses.

Jersey and Guernsey are also VAT exempt, so 20% will automatically be knocked off when selecting your country in the basket or checkout.

Pre 10am, 12am and named day delivery options are available in the basket, simply enter your postcode for an accurate price. Please note there is a surcharge for individual, very heavy items over 30kg. This will be applied in the basket.


European Deliveries

We ship to most European destinations, simply choose your country and the correct price will show up in the basket.

Delivery times range from 2-4 days, 4-9 for remote areas.

A quick glance at some of our rates...

Destination Delivery Times Cost
Republic of Ireland, Belgium, France, Germany, Italy & Netherlands 2-4 Working Days £14.99
Spain, Austria, Denmark, Hungary 3-5 Working Days £19.99

Rest of the World

We can ship anywhere in the world, if you are outside of the EU we will knock 20% VAT off the price, rates depend on weight so please get in touch for an accurate price, [email protected]

Read more about our delivery here.


Returns

Our returns system is easy, you have the right to cancel an order up to 14 days, please check our full returns policy here.

Customer Reviews

Customers Also Bought

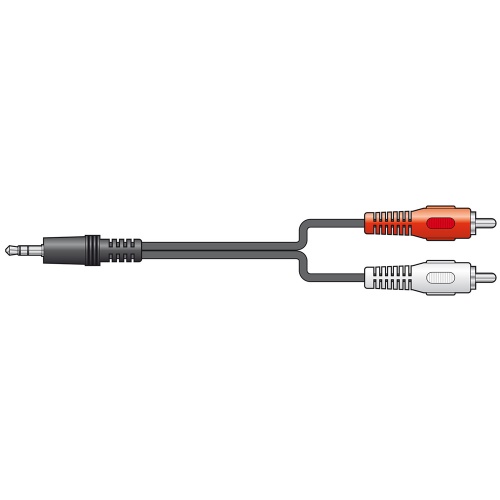

av:link MiniJack-RCA Audio Cable 5 Metre (112.066UK)
£9.99
  • Good quality audio cable
  • Balanced connection
  • 5 metre length
  • For connecting audio equipment
  • Headphone 3.5mm mini jack to dual red & white phono

3.5mm MiniJack to twin RCA (Phono) lead, 5m length

In stock, immediate despatch  In stock, immediate despatch
£9.99
£9.99

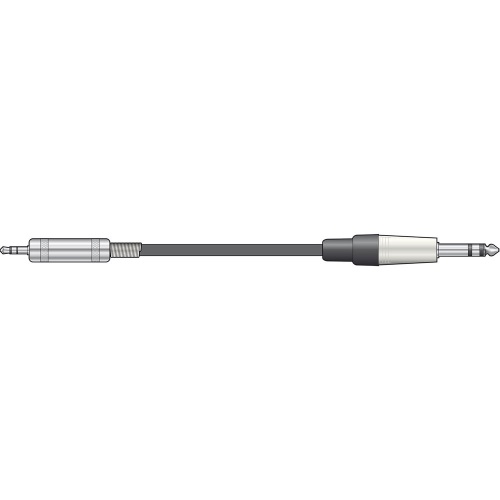

Chord/Citronic 3.5mm TRS MiniJack - 6.35mm TRS Jack 3 Metre Balanced Audio Cable (190.013UK)
£9.99
  • Good quality audio cable
  • Balanced connection
  • 3 metre length
  • For connecting audio equipment
  • Black cable with metal connections

A fully shielded audio lead, capable of carrying balanced signals.

In stock, immediate despatch  In stock, immediate despatch
£9.99
£9.99

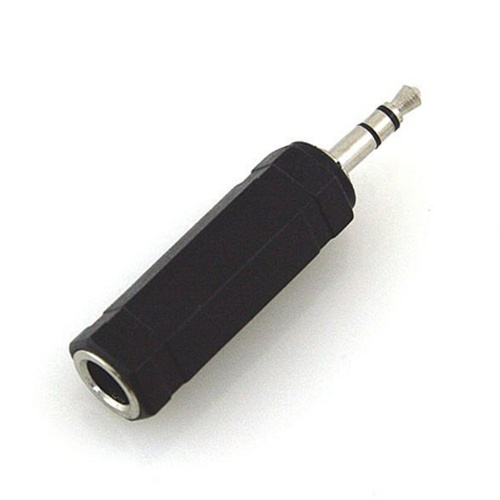

QTX 6.3mm Jack (Female Socket) to 3.5mm MiniJack (Male Pin) Adaptor
£3.00

Convert large jack lead to small jack pin

In stock, immediate despatch  In stock, immediate despatch
£3.00
£3.00

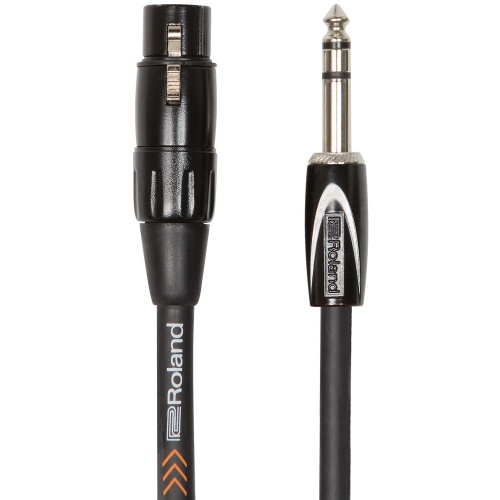

Roland BLACK SERIES 1/4'' TRS - XLRf Cable (3mtr)
